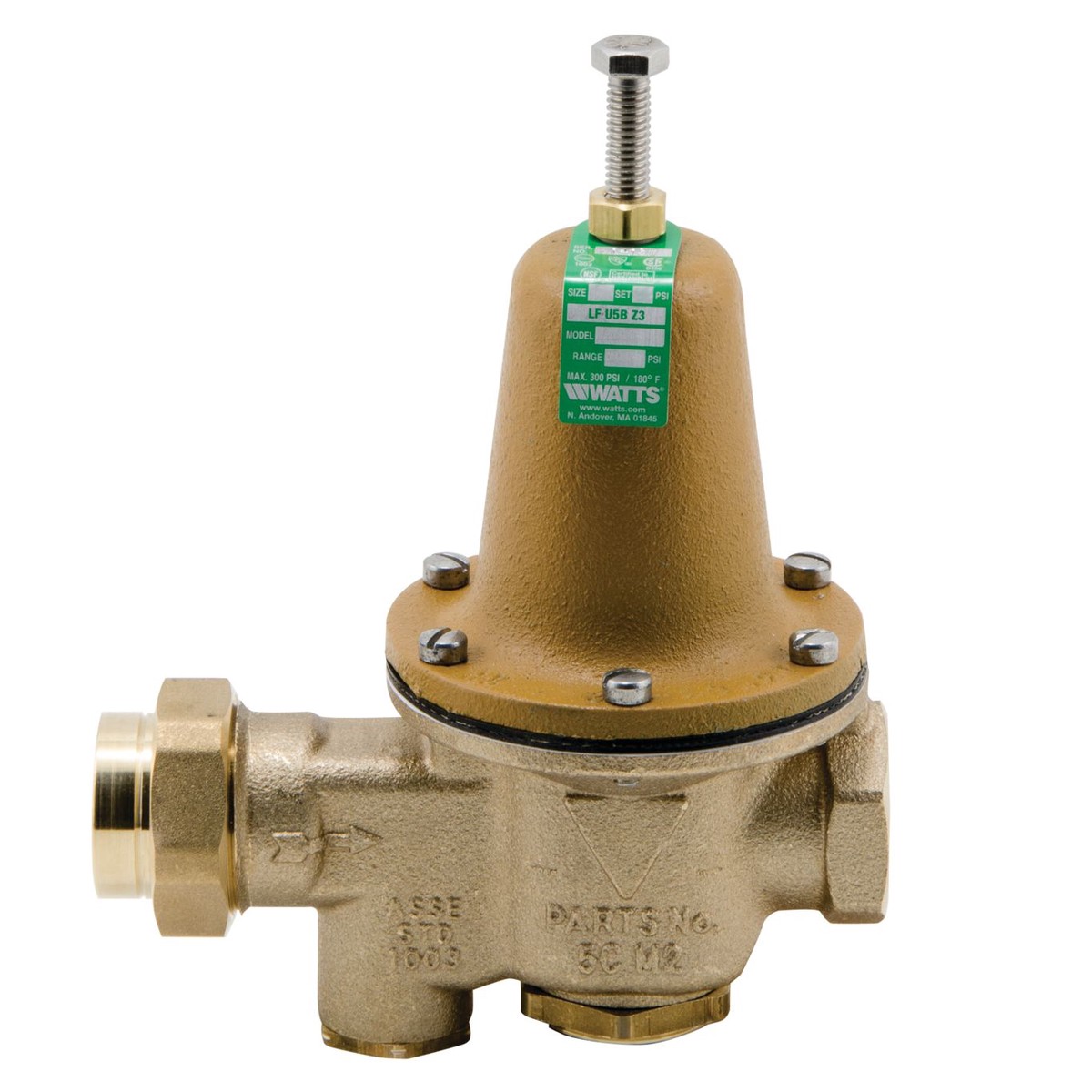

3/4 In Lead Free Water Pressure Reducing Valve, Npt Female Union X Npt Female

This 3/4 inch lead free high performance water pressure reducing valve with a lead free cast copper silicon alloy body is equipped for low pressure ranges. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The low pressure range is 10 to 35 psi (69 to 241 kPa) with the standard setting at 30 psi (207 kPa).

Features

• Integral stainless steel strainer removable for cleaning
• Low pressure applications
• Serviceable in line without special tools
• NPT threaded female union inlet by NPT female outlet

PVZ1T02720
