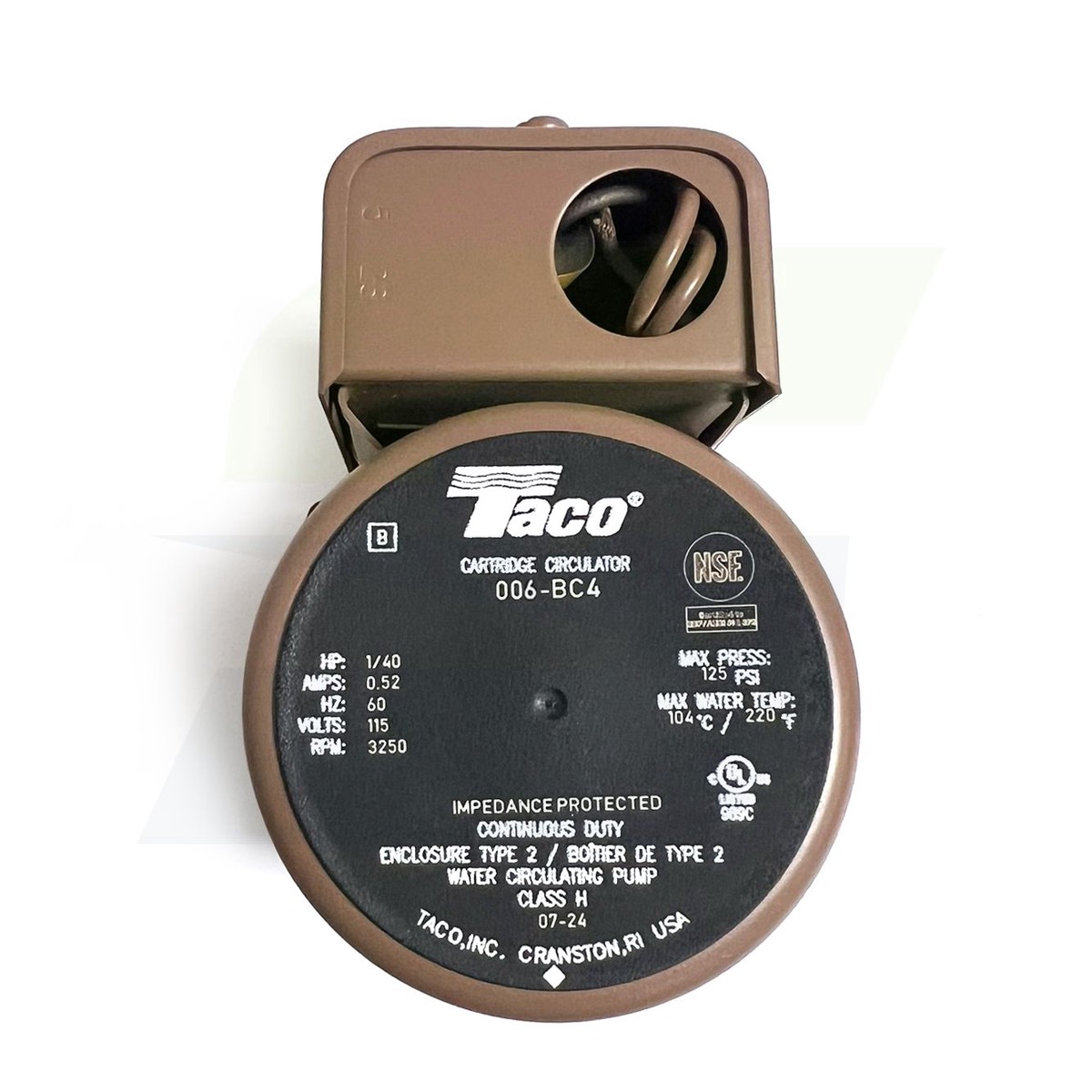

Taco 006-BC4 – Cartridge Circulator – Bronze – 1/40 HP – 1/2″ Sweat

Rugged, Versatile, Quick and Easy to Install

The compact Taco 006 Cartridge Circulator is designed for circulating hot and chilled fresh water in a wide range of open and closed loop applications. The unique, replaceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. Its self-lubricating, maintenance free design provides quiet, efficient operation and unmatched reliability. Available in low-lead Bronze sweat or Stainless Steel threaded or union connections.

Taco 00 IFC Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

With their self-lubricating design and no mechanical seal, Taco 00 Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 Series Cartridge Circulator and 00 IFCm circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Features

• Standard high capacity output – Compact design
• Quiet, efficient operation
• Direct drive – Low power consumption
• Unique replaceable cartridge design – Field serviceable
• Self lubricating
• No mechanical seal
• Unmatched reliability – Maintenance free
• Low-lead Bronze sweat or Stainless Steel with threaded or union connections

Specifications

• Connection: 1/2″ Sweat
• Volts: 115
• Hertz: 60
• Phases: 1
• Amps: 0.52
• RPM: 3,250
• HP: 1/40
• Casing (Volute): Low-lead Bronze
• Stator Housing: Steel
• Cartridge: Stainless Steel
• Impeller: Non-metallic
• Shaft: Ceramic
• Bearing: Carbon
• O-Ring & Gaskets: EPDM (chlorine resistant)

PKZ1900239
