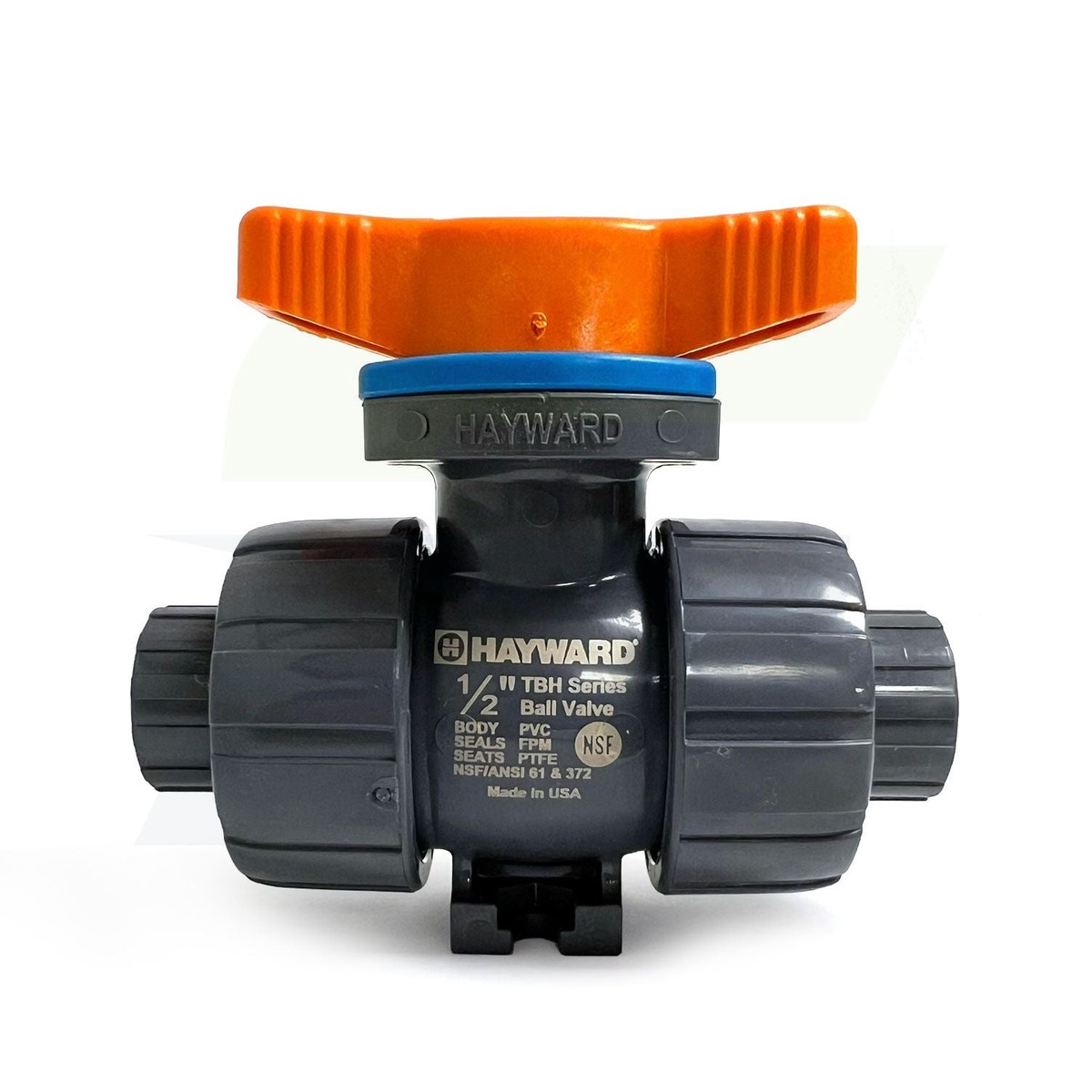

Hayward TBH1050ASTV0000 – 1/2″ PVC TBH Series Ball Valve Socket or Threaded Ends – FPM Seals

The TBH Series features a low maintenance design with its new patent pending System2 Sealing Technology for sizes up to 2″/DN50. Sizes 2-1/2″ through 6″ feature have energized PTFE seats with backing O-ring as standard. All seats are reversible to allow easy field rebuild. Assisting users in protecting property and life, a standard integral lock-out feature secures onto the body of the valve.

Features

• TBH Series
• Full 250 psi / PN16 Rating up to 2/DN50 and 235psi/PN16, Non-Shock at 70 degrees F / 23 degrees C
• Integral ISO 5211 Mounting Pad for Easy Actuation
• Standard Lock-Out Plate, Lock-Out / Tag-Out for up to 4 Locks
• System2 Sealing Technology Seat Carrier Design for sizes up to 2/DN50 Patent Pending
• Permanent Laser Markings, Eliminates Labels
• System friendly “Molded-In” Footpad for Skid or Panel Mount
• UV Resistant Sure Grip Ergonomic Handle
• FPM or EPDM Seals
• Double O-Ring Stem Seals
• Reversible PTFE Seats – Standard
• Easy Replacement for Existing Hayward TB Series

Specifications

• Pipe Size: 1/2 in
• Material: PVC
• Body Material: PVC
• Sealing Material: FPM
• Seat Material: PTFE
• Valve Type: Ball
• End Connection Material: PVC
• End Connection Type: Socket/Threaded
• Operation Type: Manual
• Pressure Rating: 250 PSI
• Cv Coefficient: 8.0000
• Chassis Description: Standard Body
