B3104 Specification Sheet

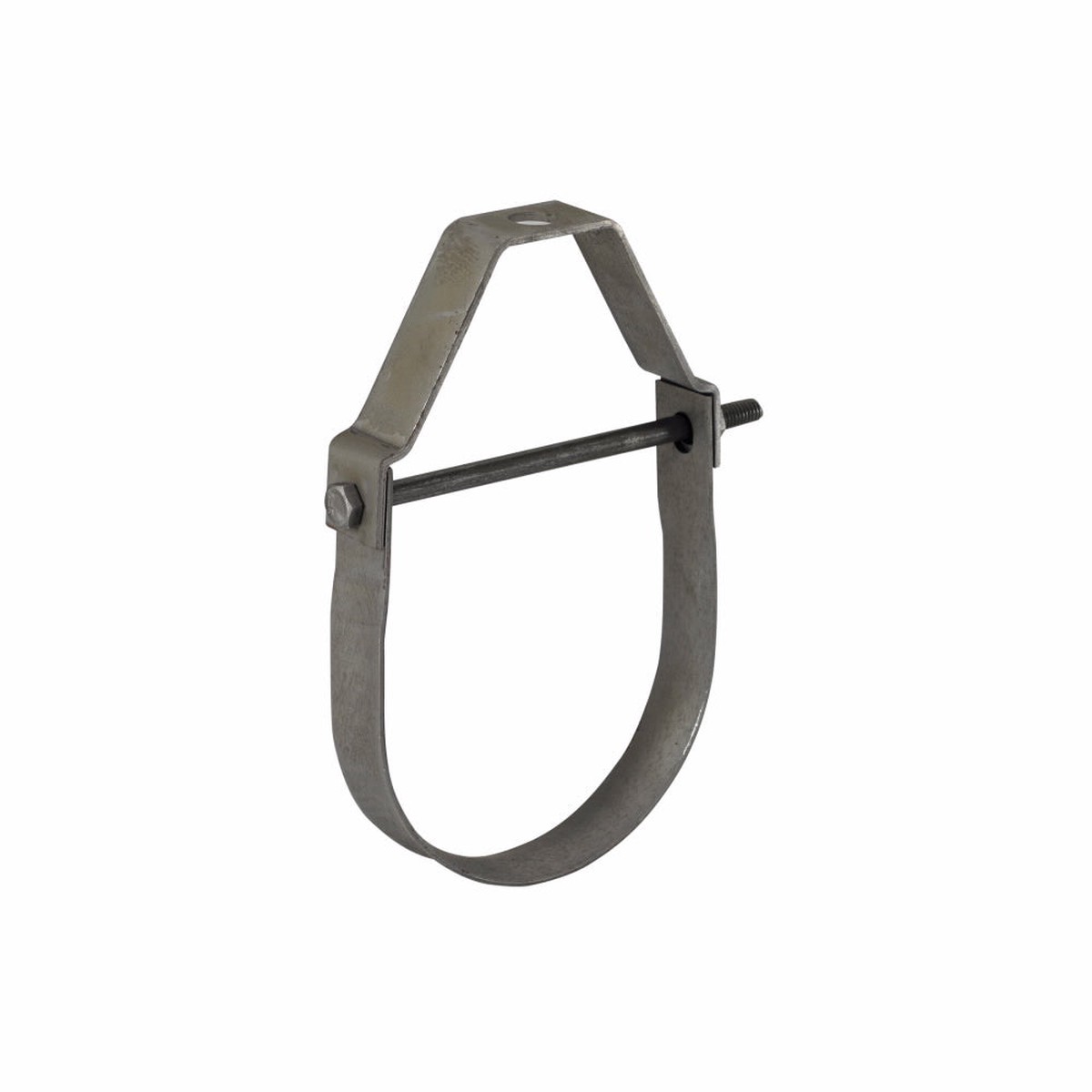

B-Line B3104-1 – 1″ Light-Duty Clevis Hanger – CL710

Eaton B-Line series light duty clevis hanger, 0.8750″ H x 2.9690″ L x 2.5″ W, Steel, Plain, 1″ max pipe size. Recommended for the suspension of light stationary pipe allowing for vertical adjustment.

Features

• Size Range: 1/2″ (15mm) to 4″ (100mm) pipe
• Material: Steel
• Approvals: Underwriter’s Laboratories Listed in the USA (UL) and Canada (cUL) for sizes 3/4″ (20mm) thru 4″ (100mm).
• Conforms to Federal Specification WW-H-171E & A-A-1192A, Type 12 and Manufacturers Standardization Society ANSI/MSS SP-69 & SP-58, Type 1.

Specifications

• Nominal Pipe Size: 1″
• Rod Size: 3/8″
• Product Length: 2.969″
• Product Height: 0.875″
• Product Weight: 0.24 lb
