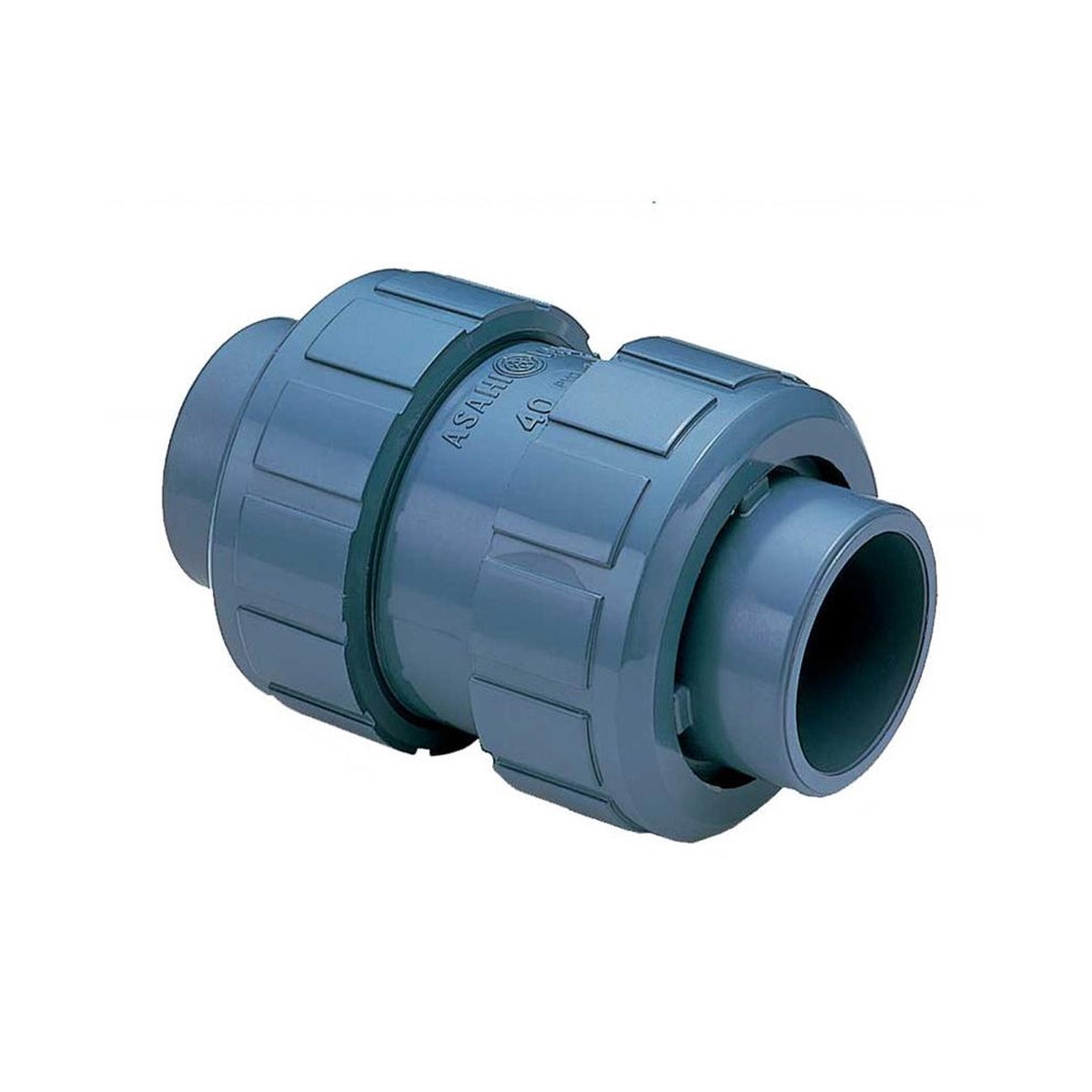

Asahi1219010 – 1″ CPVC True Union Ball Check Valve – Socket and Threaded End Connectors

True Union Ball Check Valve (1/2 – 2 in.) and Single Union Ball Check Valve (3 – 4 in.)

The Asahi/America ball check valve employs a free moving ball, which unseats to permit flow in one direction, but seals against a seat to prevent backflow. It may be installed vertically or horizontally. Also available as foot valve for suction side of pump.

Ideal Applications Include:

Chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, power plants

Features

• Uniseat/seal of EPDM or FKM
• Ball is the only moving part. It unseats to permit flow in one direction but seals against seat to prevent backflow.
• May be used vertically or horizontally
• Minimum shut-off of 5 psi
• All sizes rated for full vacuum service
• Solid thermoplastic ball

DASAH00442
