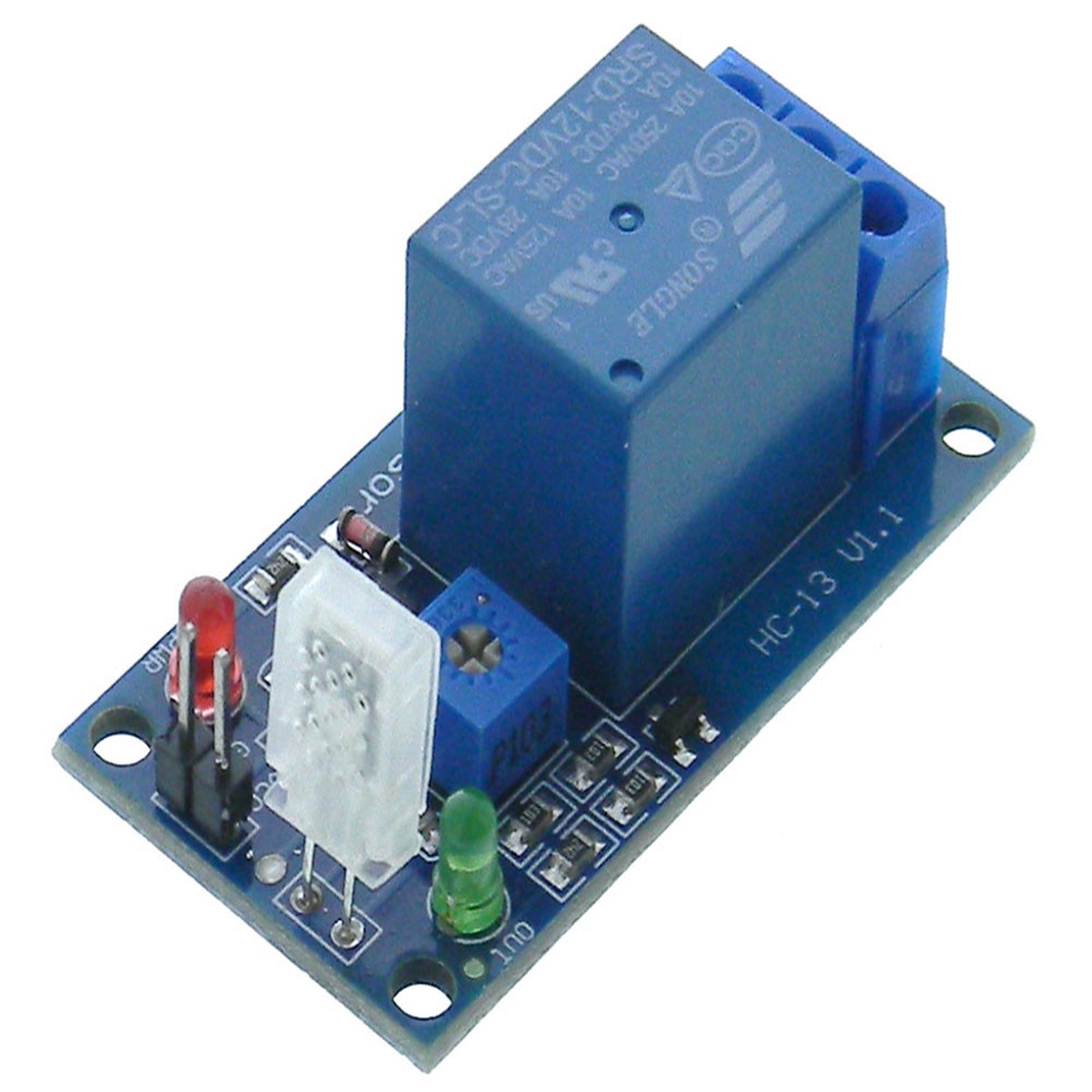

12VDC Humidity Sensitive SPDT Relay Module
12VDC Humidity Sensitive SPDT Relay Module
12VDC Humidity Sensitive SPDT Relay ModuleAdditional Notes:* Adjustable Humidity detector control module.* Power: 12VDC @ ~10mA Idle/
12VDC Humidity Sensitive SPDT Relay ModuleAdditional Notes:* Adjustable Humidity detector control module.* Power: 12VDC @ ~10mA Idle/<50mA Activated* Power: 0.1" Pitch Header Pins* Relay: Terminal Strip* When the threshold is reached (Humidity >Setting), the relay is energized, the Common terminal is connected to the Normally Open terminal. When Humidity is lower than the threshold, the relay is de-energized, and the Common terminal is connected to the Normally Closed terminal* Indicators: Red LED; Power On* Green LED: Relay energized* Relay: SPDT* Rated: 10A @ 250VAC/30VDC.* Dimensions (LxWxH): 1-15/16″ x 1″ x 3/4″(50mm x 26mm x 19mm) MPJA37995 MI
