Tekmar 150 Submittal

Tekmar 150 Data Brochure / Installation

Tekmar 150 – One Stage Setpoint Control

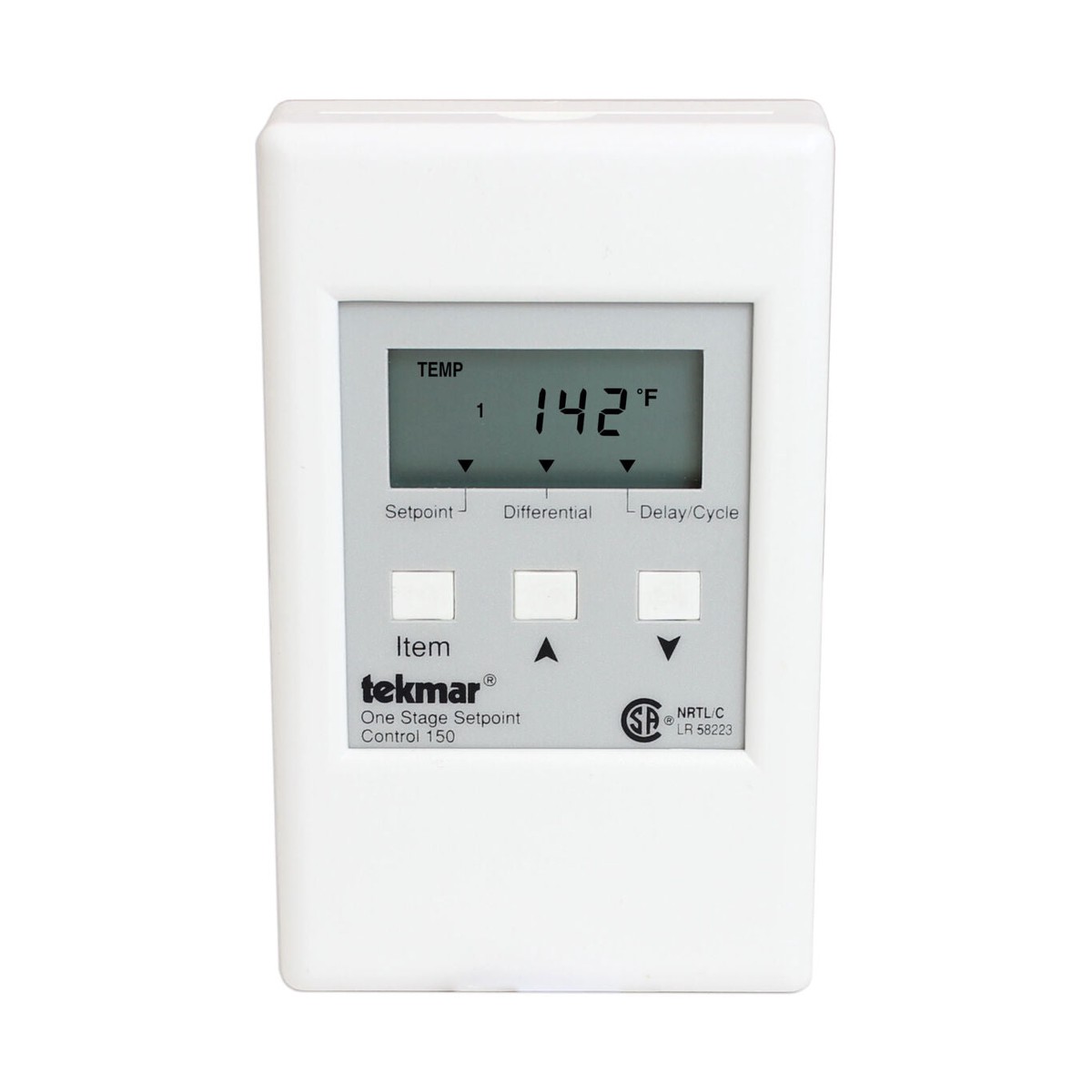

The One Stage Setpoint Control 150 is designed to operate a single component of a heating or cooling system in order to maintain a set temperature. It can be used in applications ranging from heating a swimming pool to maintaining a constant slab temperature in a commercial car wash bay. This control regulates a constant setpoint water temperature for heating or cooling. The 150 is designed to operate a single relay (rated at 240 V, 8 A) to control a single device such as a boiler, pump, or valve.

Features:

• Pulse width modulation control
• Digital display
• Heat or cool setpoint control
• Normally open and normally closed relay

Specifications:

• Agency Approvals: CSA C US, meets class B: ICES & FCC Part 15Ambient Conditions: Indoor use only, -20 to 120 degrees F (-30 to 50 degrees C), RH less than or equal to 90 percent
• Non-condensing
• Control Type: Microprocessor control, this is not a safety (limit) control
• Demand: Does Not Apply To Product
• DHW – Valve Output: Does Not Apply To Product
• DHW – Zone Valve: Does Not Apply To Product
• Dimensions: 4-3/4″ H x 2-7/8″ W x 7/8″ D (120 x 74 x 22 mm)
• Enclosure Material: White PVC plastic
• Enclosure NEMA Rating: NEMA 1
• Hydronic – HVAC Control Type: One Stage Setpoint Control
• Power Supply: 24 V (ac) plus / minus 10 percent, 50/60 Hz, 1.3 VA, 24 V (dc) plus / minus 10 percent, 0.02 A
• Pump Relay: Does Not Apply To Product
• Relay: 240 V (ac) 8 A max, 1/4 hp
• Sensor: NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta=3892
