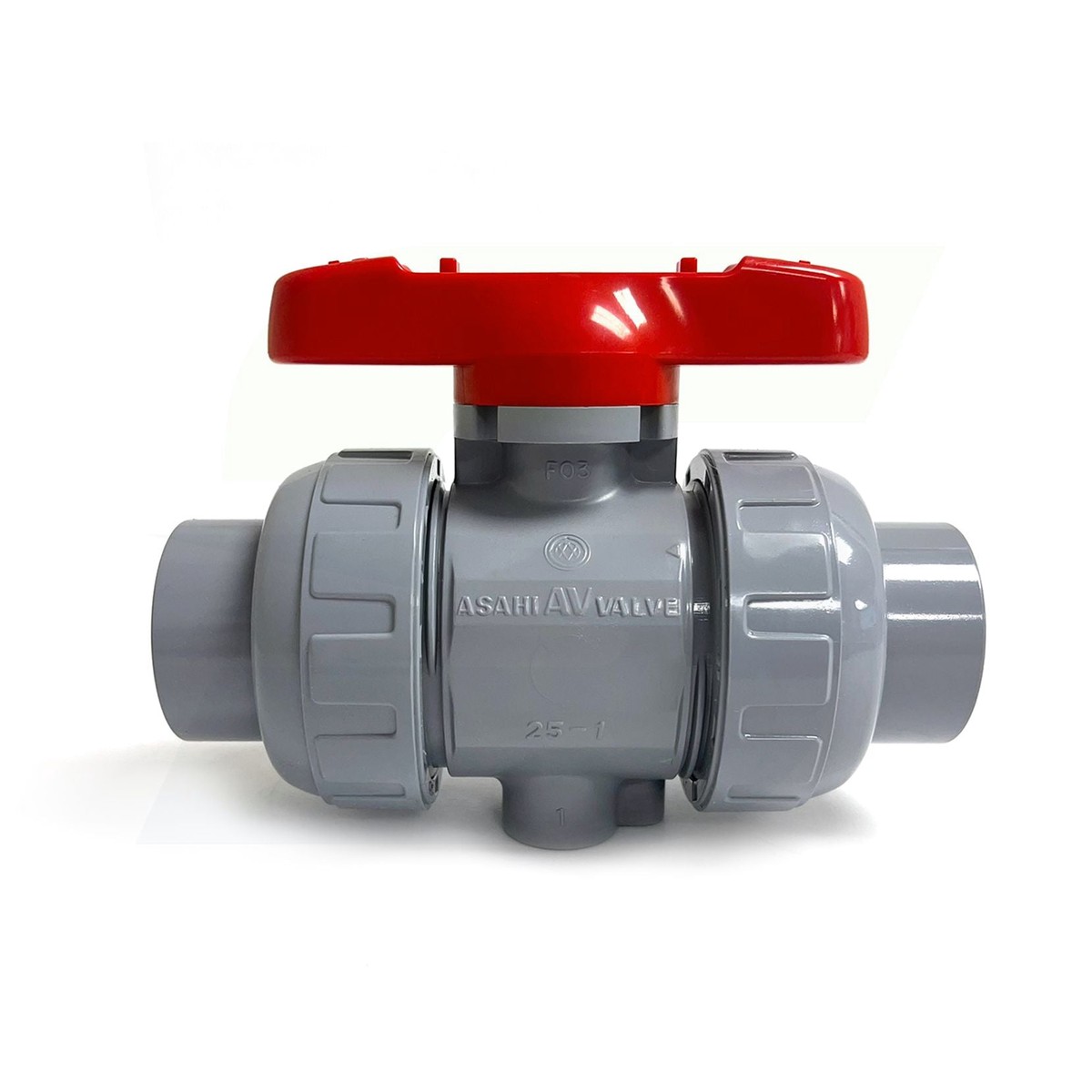

1609010 - 1" True Union In-line Ball Valve - CPVC, Socket/Threaded, EPDM Seal
1609010 – 1″ True Union In-line Ball Valve – CPVC, Socket/Threaded, EPDM Seal
Asahi 1609010 - 1" CPVC True Union In-line T-21 Ball Valve with Socket and Threaded End ConnectorsFeatures and BenefitsPressure rated up to 230 psiDouble O-ring seals on stem for an added protection.Full boreFull vacuum rated, all sizesBlocks in two directions,...
Asahi 1609010 – 1″ CPVC True Union In-line T-21 Ball Valve with Socket and Threaded End Connectors
Features and Benefits
- Pressure rated up to 230 psi
- Double O-ring seals on stem for an added protection.
- Full bore
- Full vacuum rated, all sizes
- Blocks in two directions, upstream and downstream, leaving full pressure on the opposite end of the valve
- Integrally molded ISO mounting pad for both manual and actuated operations
- Integrally molded base pad to mount valves Securely or panel mounting
- PTFE seats with elastomeric backing cushions ensure bubble-tight shut-off and a low fixed torque, while at the same time compensating for wear
- True Union design for easier installation or repairs without expanding the pipe system
- Built-in spanner wrench on the handle for valve disassembly and assembly
- Two sets of end connectors (socket and threaded) included with all PVC and CPVC valves in sizes ” 2″
- CPVC threaded end connectors come with stainless steel reinforcing rings
- NSF-61 Certified
DASAH00260
