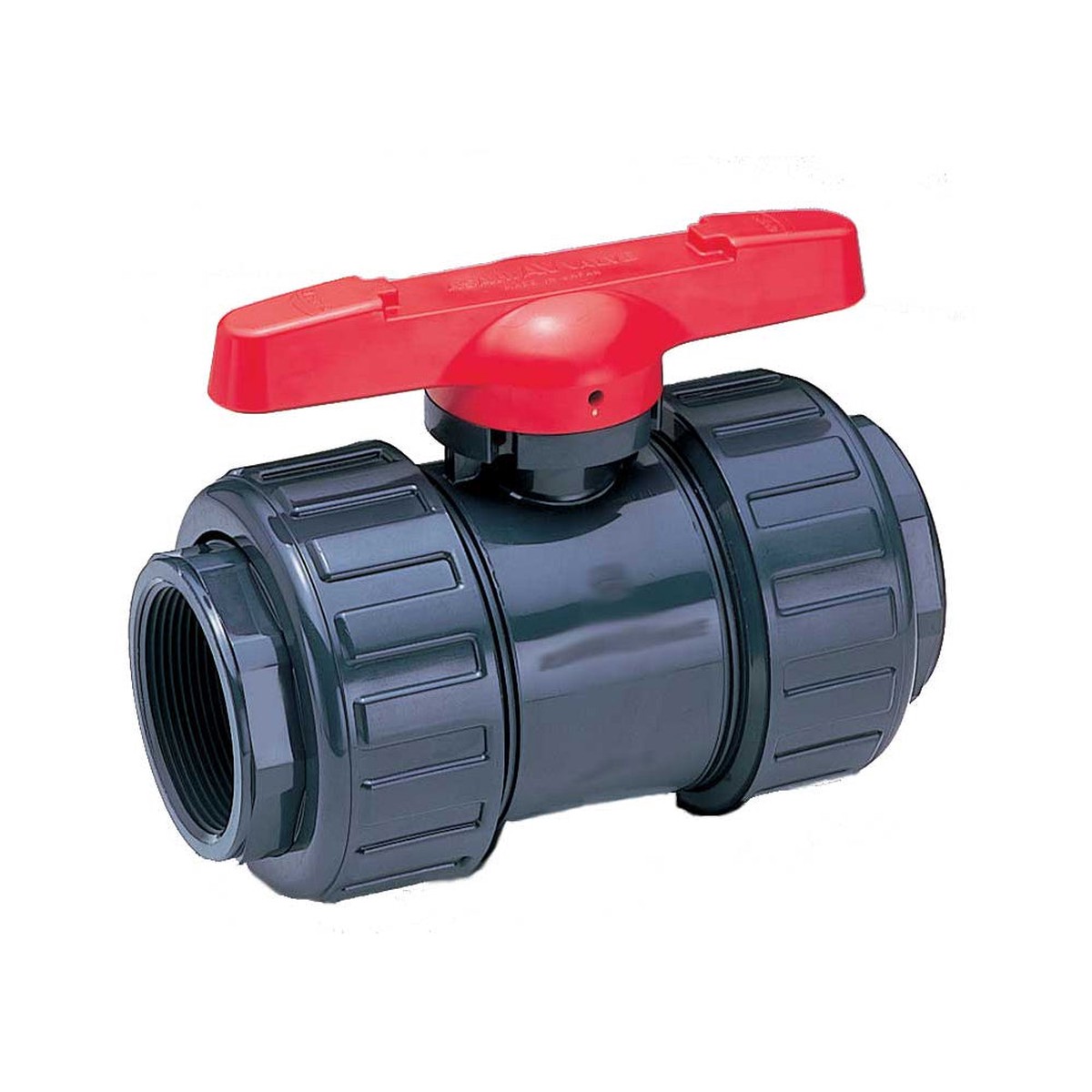

3/4″ CPVC/FKM Socket/Threaded Combo T-21 Ball Valve

Features and Benefits

• Pressure rated up to 230 psi (PVC, CPVC, PVDF)
• Double O-ring seals on stem for an added protection.
• Full bore, sizes 1/2″ – 2″
• Full vacuum rated, all sizes
• Blocks in two directions, upstream and downstream, leaving full pressure on the opposite end of the valve
• Integrally molded ISO mounting pad for both manual and actuated operations
• Integrally molded base pad to mount valves Securely or panel mounting
• PTFE seats with elastomeric backing cushions ensure bubble-tight shut-off and a low fixed torque, while at the same time compensating for wear
• True Union design for easier installation or repairs without expanding the pipe system
• Built-in spanner wrench on the handle for valve disassembly and assembly
• Two sets of end connectors (socket and threaded) included with all PVC and CPVC valves in sizes ” 2″
• CPVC threaded end connectors on sizes ” 1″ come with stainless steel reinforcing rings
• NSF-61 Certified – Size: ” – 4″, Material: PVC, EPDM, FKM

DASAH00286
