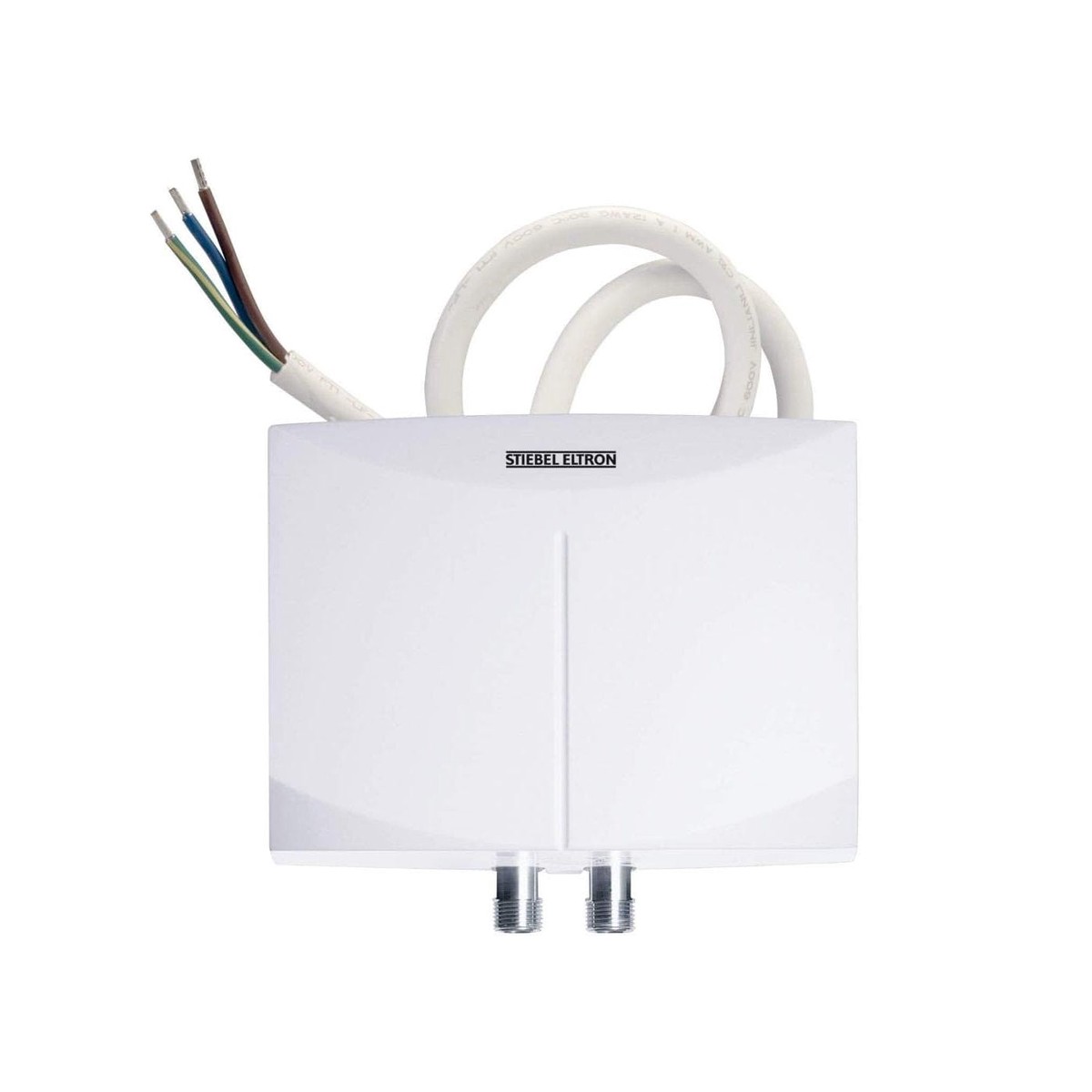

Stiebel220816 – Mini 3-1 Point-Of-Use Tankless Water Heater for Handwashing

The Stiebel Eltron Mini tankless water heaters are designed for installation at the point-of-use, or under the sink. The Mini heats water instantaneously as it flows through the unit. Stand-by heat-losses are completely eliminated. The efficient heating elements are controlled by a simple flow switch. Additionally, all Mini water heaters are equipped with a safety high-limit with manual reset.

Features

• Extremely compact design saves space
• Major energy savings
• Unlimited supply of hot water
• Proven reliability
• Sleek design is appealing and can be mounted in plain sight
• Can be mounted with fittings pointing up or down
• Pre-wired pigtail included
• Only 7.5″ x 6.5″

Specifications

• Voltage: 120V
• Wattage: 3.0 kW
• Amperage Draw: 25 A
• Min Recommended Circuit Breaker Size: 25 A (SP)
• Min Recommended Wire Size: 10/2 AWG
• Min Flow to Activate: 0.40 GPM
• Water Temp Range: 86 to 122 degrees F
• Dimensions: 6-1/2″ H x 7-1/2″W x 3-1/4″ D
• Weight: 3.44 lbs
