Specification Sheet

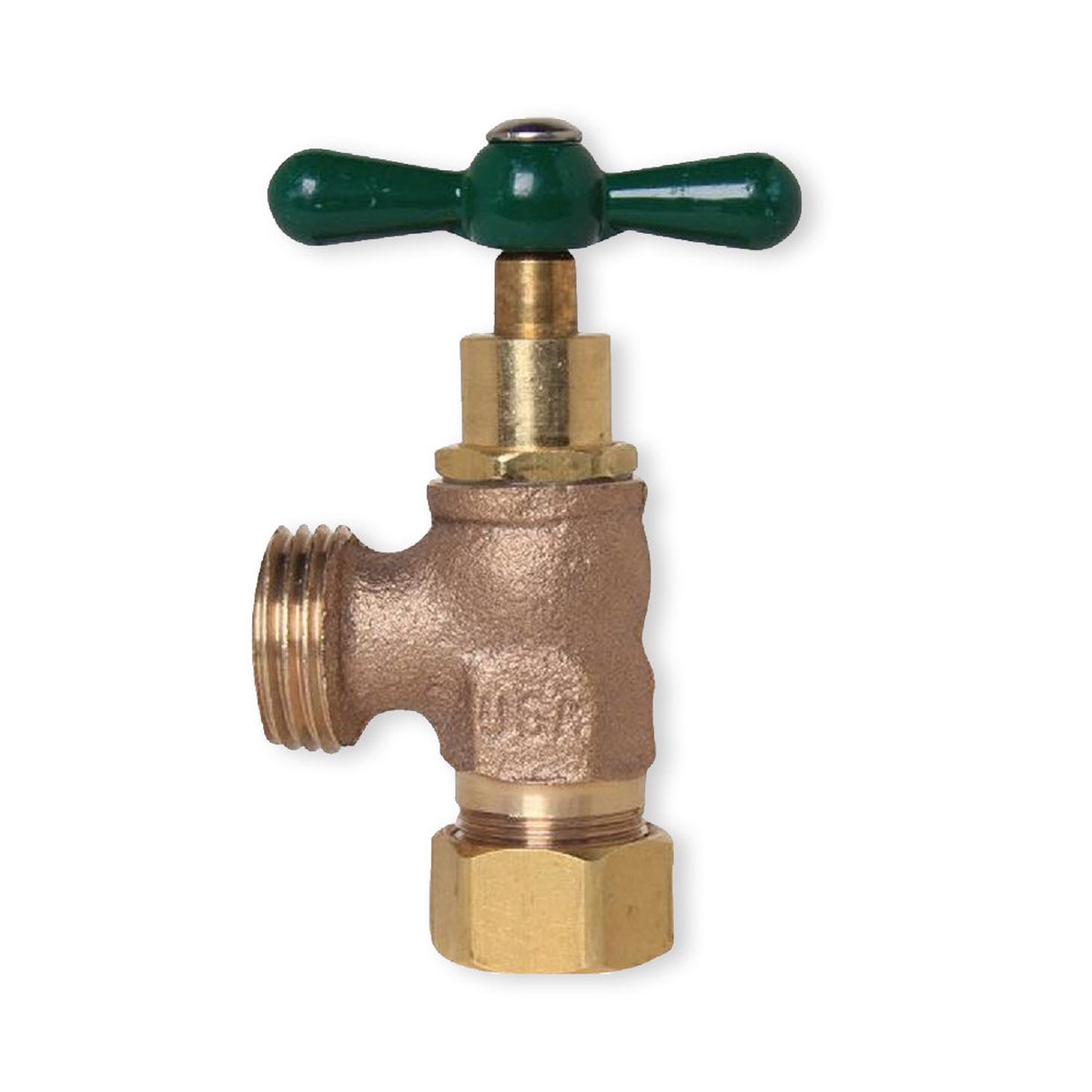

Arrowhead Brass221CCLF – Lead Free Washing Machine Valve – 1/2″ Copper Compression x 3/4″ Hose Thread

The Arrowhead Brass 221CCLF washing machine valve is nickel-plated and has a 1/2″ copper compression connection. The 221CCLF includes Arrowhead Brasss exclusive O-ring bonnet and stem design (no packaging nut to tighten) and a 3-year limited warranty.

Arrowhead Brass Washing Machine Valves are made of heavy-duty Lead-Free brass and feature a one-piece O-ring bonnet stem design for maintenance-free, easy operation
with years of service. Arrowhead Brass Washing Machine Valves are available in 5 different models and are certified to NSF/ ANSI 372 Lead-Free by IAPMO.

Features

• Heavy duty, nickel plated lead-free brass construction. NSF/ANSI 372 certified Lead-Free by IAPMO
• Utilizes Arrowheads exclusive no-leak one-piece bonnet with EPDM O-ring seal
• Inlet Connection: 1/2″ copper compression
• Outlet Connection: 3/4″ male hose thread
• Nickel-plated finish
• Lead-free certified to NSF/ANSI 372 (by IAPMO)
• Max pressure: 125 PSI
• Max temperature: 180 degrees F
• Flow rate: 11 GPM at 50 PSI
• 3-year limited warranty

PVZ1I00150
