Specification Sheet

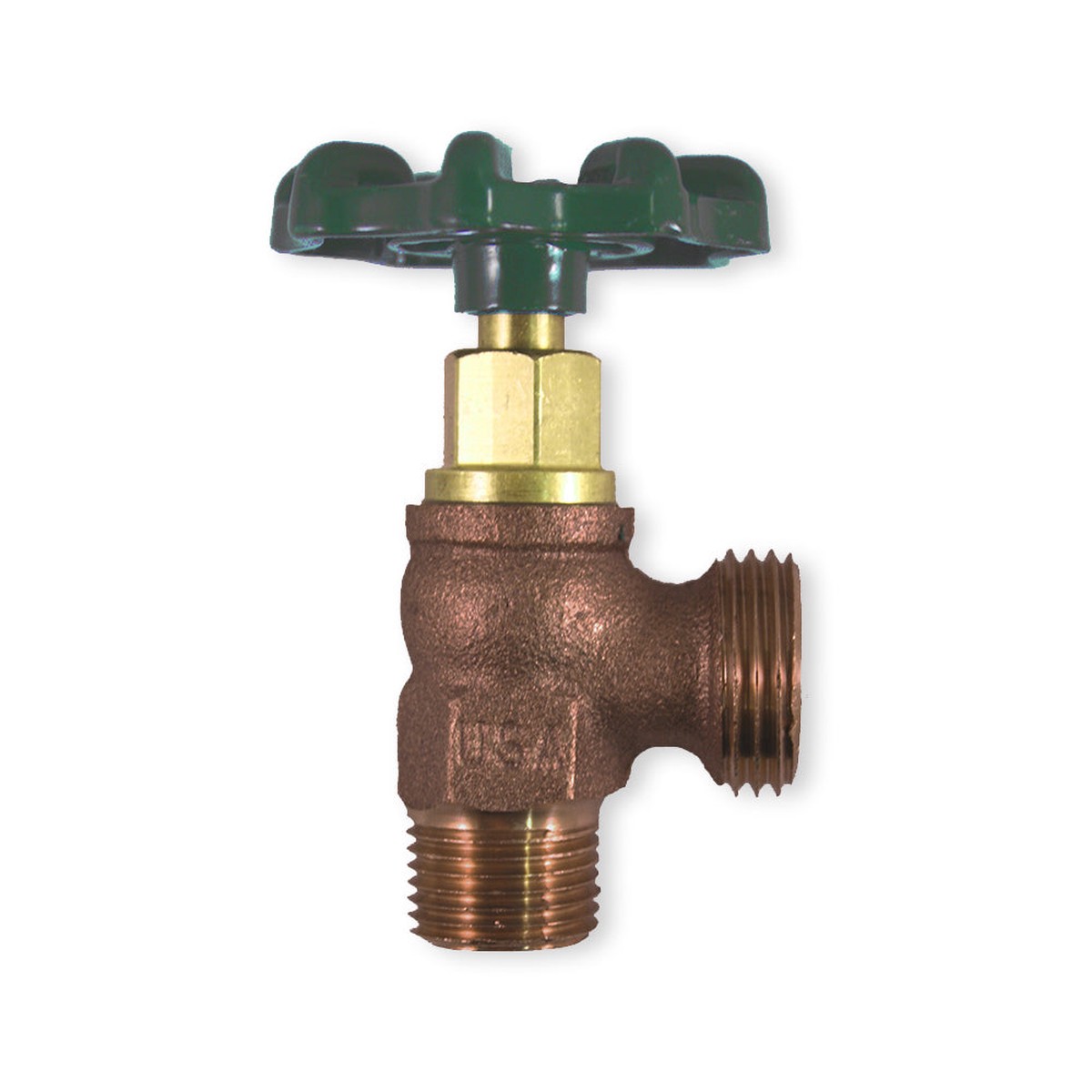

Arrowhead Brass 221LF – Lead Free Boiler Drain Valve – 1/2″ MIP x 3/4″ Hose Thread

The Arrowhead Brass 221LF boiler drain has a1/2″ MIP connection. The 221LF includes Arrowhead Brasss exclusive O-ring bonnet and stem design (no packaging nut to tighten) and a 3-year limited warranty.

Arrowhead Brass 221LF & 223LF series Lead Free Boiler Drains are made of heavy-duty Lead Free brass and feature a one-piece O-ring bonnet stem design for maintenance-free, easy operation with years of service. The 221LF (1/2 inch) and 223LF (3/4 inch) Boiler Drains feature male pipe thread inlet connections and are available in various options and finishes. The 221LF and 223LF series are certified to NSF/ANSI 372 Lead-Free by IAPMO.

Features

• Made from a heavy-duty, lead-free bronze alloy
• Inlet Connection: 1/2″ MIP
• Outlet Connection: 3/4″ male hose thread
• Arrowhead Brass green tee handle
• Lead-free certified to NSF/ANSI 372 (by IAPMO)
• 3-year limited warranty
• Max pressure: 125 PSI
• Max temperature: 180 degrees F
