Specification Sheet

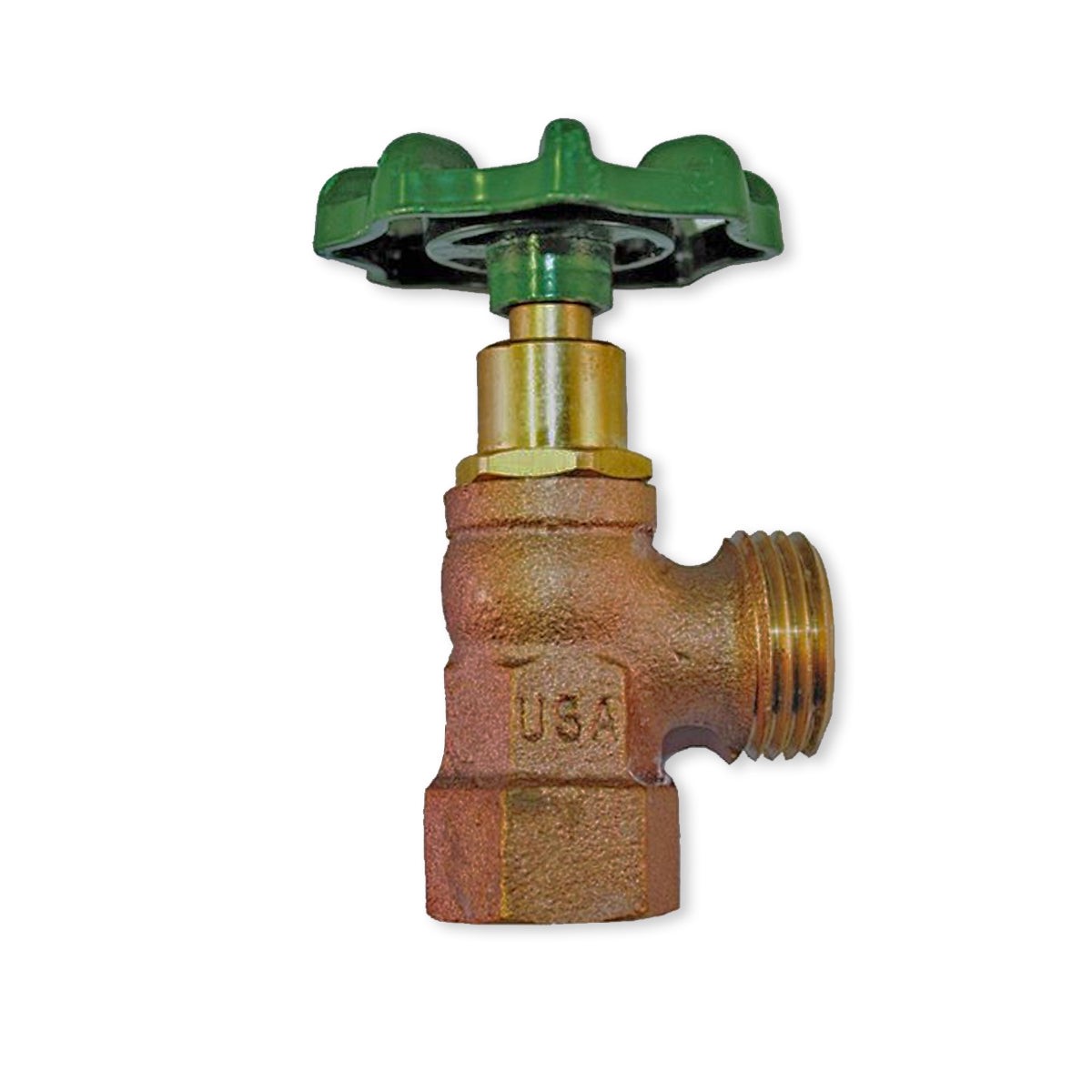

Arrowhead Brass 222LF – Lead Free Boiler Drain Valve – 1/2″ FIP x 3/4″ Hose Thread

The Arrowhead Brass 220 boiler drain series has a1/2″ Female Iron Pipe (FIP) connection. The 220 includes Arrowhead Brasss exclusive O-ring bonnet and stem design (no packaging nut to tighten) and a 3-year limited warranty.

Arrowhead Brass ACSB series Commercial Sillcock Wall Box is made of heavy-duty brass and is designed to house all Arrowhead Commercial Sillcocks. The ACSB features a loose key operated lock to protect and prevent the use of the enclosed Arrowhead Brass 25LF & 35LF series Commercial Sillcock, or the 28LF & 38LF Self-Draining
Commercial Sillcock, with or without the green wheel handle.

Features

• Made from a heavy-duty, lead-free bronze alloy
• Inlet Connection: 1/2″ FIP
• Outlet Connection: 3/4″ male hose thread
• Arrowhead Brass green wheel handle
• 3-year limited warranty
• Max pressure: 125 PSI
• Max temperature: 180 degrees F

PVZ1I00170
