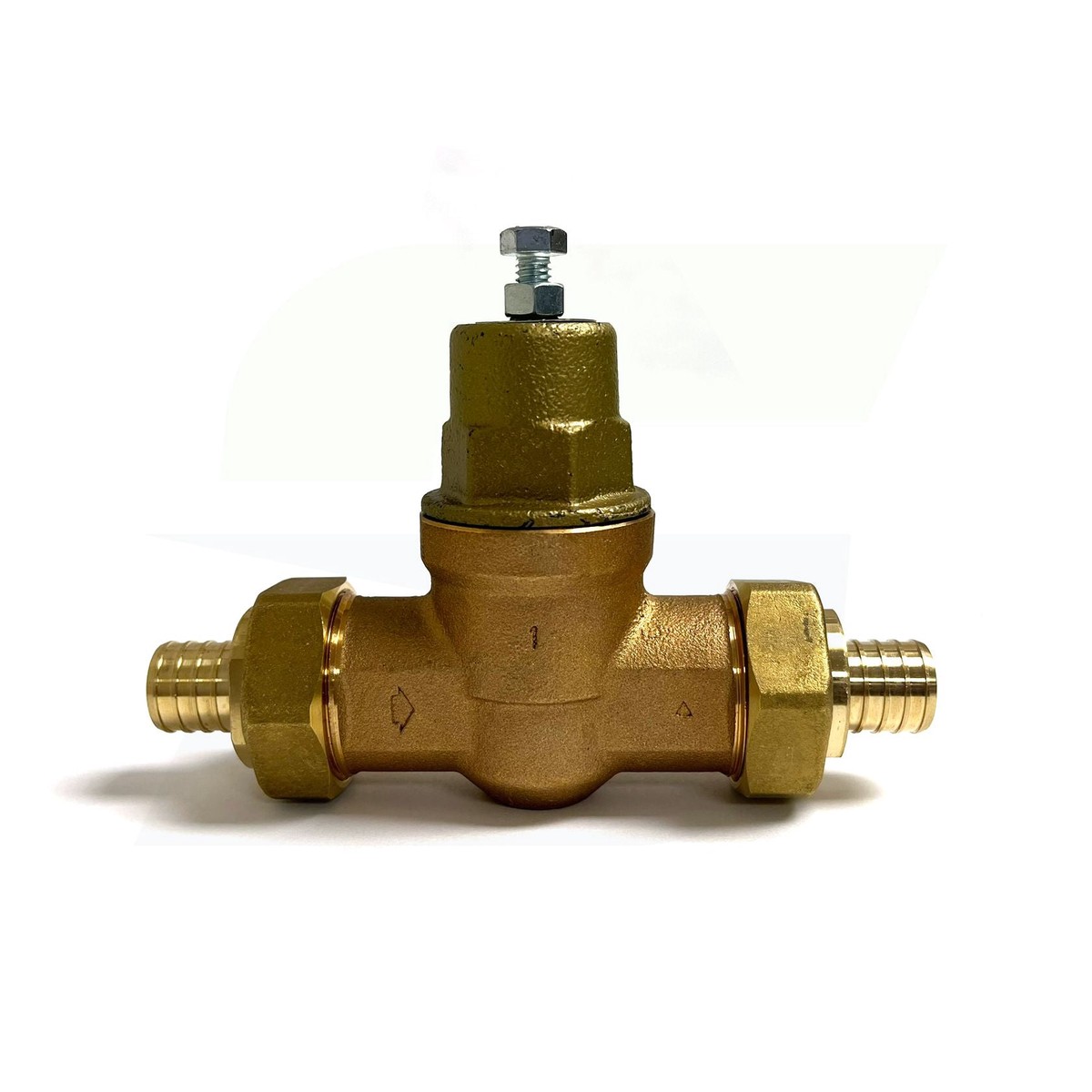

Cash Acme 23944-0060 – 1″ EB45 Double Union PEX Barb Pressure Reducing Valve

The lead-free EB45 water pressure regulator features a half cartridge design that offers the performance of a high-end, cartridge-based valve and the price of a traditional regulator. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge-based valve. The EB45 pressure regulator valve comes factory set at 45 psi but may be adjusted between 10-70 psi and includes an integrated back-check feature in case the pressure in the system exceeds the incoming pressure.

Specifications

• Maximum Inlet Pressure: 400psi
• Temperature Range: 33 to 180 degrees F
• Service: Water
• Outlet Pressure Range: 10 to 70 psi
• Body: Lead Free Brass
• Spring Chamber: Iron
• Adjusting Spring: Steel (Zinc plated)
• Diaphragm: Reinforced EPDM
• Body Seat: Polysulfone
• Seat Disc: EPDM
• Piston: Stainless Steel / Brass
• Strainer Screen: Stainless Steel
• O-Ring: EPDM
• Connection Size: 1″
• Connection Style: Barb
• Compatible with PEX-a and PEX-b for crimp connections
• Compatible with PEX-a for expansion connections
