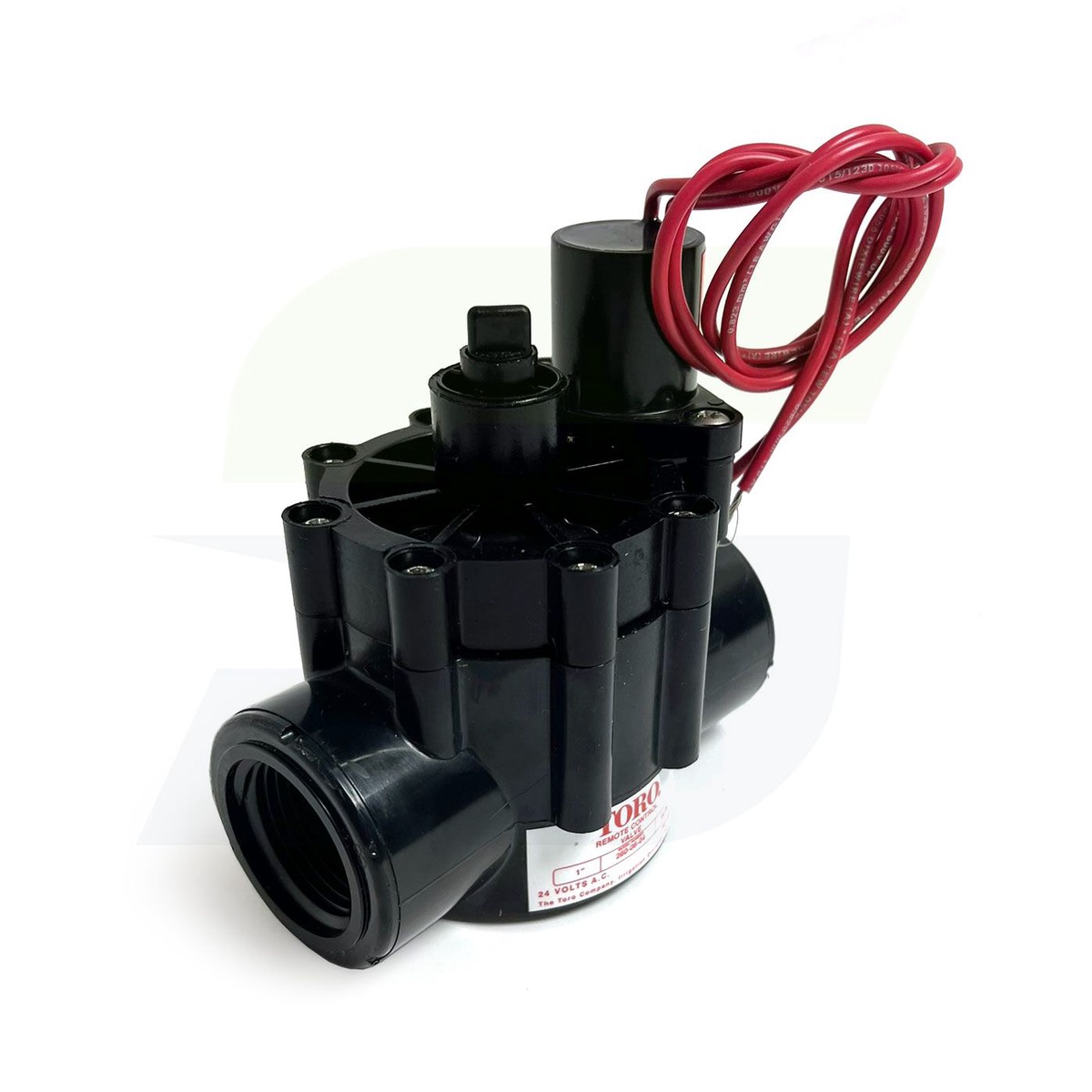

TORO 260-06-04 – 1″ FPT Electric Valve without Flow Control – 260 Series

These durable valves are designed for contractors who prefer male inlets and male or barbed outlets and need a valve that can withstand the pressures of large residential and light commercial applications.

Heavy duty. Hardworking. The Toro 264 Series globe-style valves are made to withstand all that a large residential or light commercial application can dish out. The durable and dependable, glass-filled Zytel bonnet and body construction allows these valves to be rated up to 150 psi, and are available in various inlet/outlet configurations meant to meet contractors unique preferences.

Features

• Heavy-Duty Toro Solenoid – Provides dependable operation and long life.
• Optional Flow Control – Allows the ability to adjust the flow of each zone.
• Single-Piece Rubber Diaphragm – For reliable, leak-tight closing.
• Tough, Glass-Filled Zytel Bonnet And Body – Durable construction that provides years of reliable operation
• Manual flow control adjustable to zero flow
• Self-cleaning, stainless steel metering pin
• External manual bleed
• 18 lead wires (electric)
• Low in-rush solenoid

Specifications

• Recommended flow range: 0.50 to 30.0 gpm
• Operating Pressure: 20 to 150 psi
• Solenoid: 24 VAC Inrush: 0.35 amps, 7.20 VA; Holding: 0.20 amps, 4.80 VA
• Dimensions: 4-1/2 H x 4-1/2 W
• Warranty: Two years
