Milwaukee 2771-20 Operator’s Manual

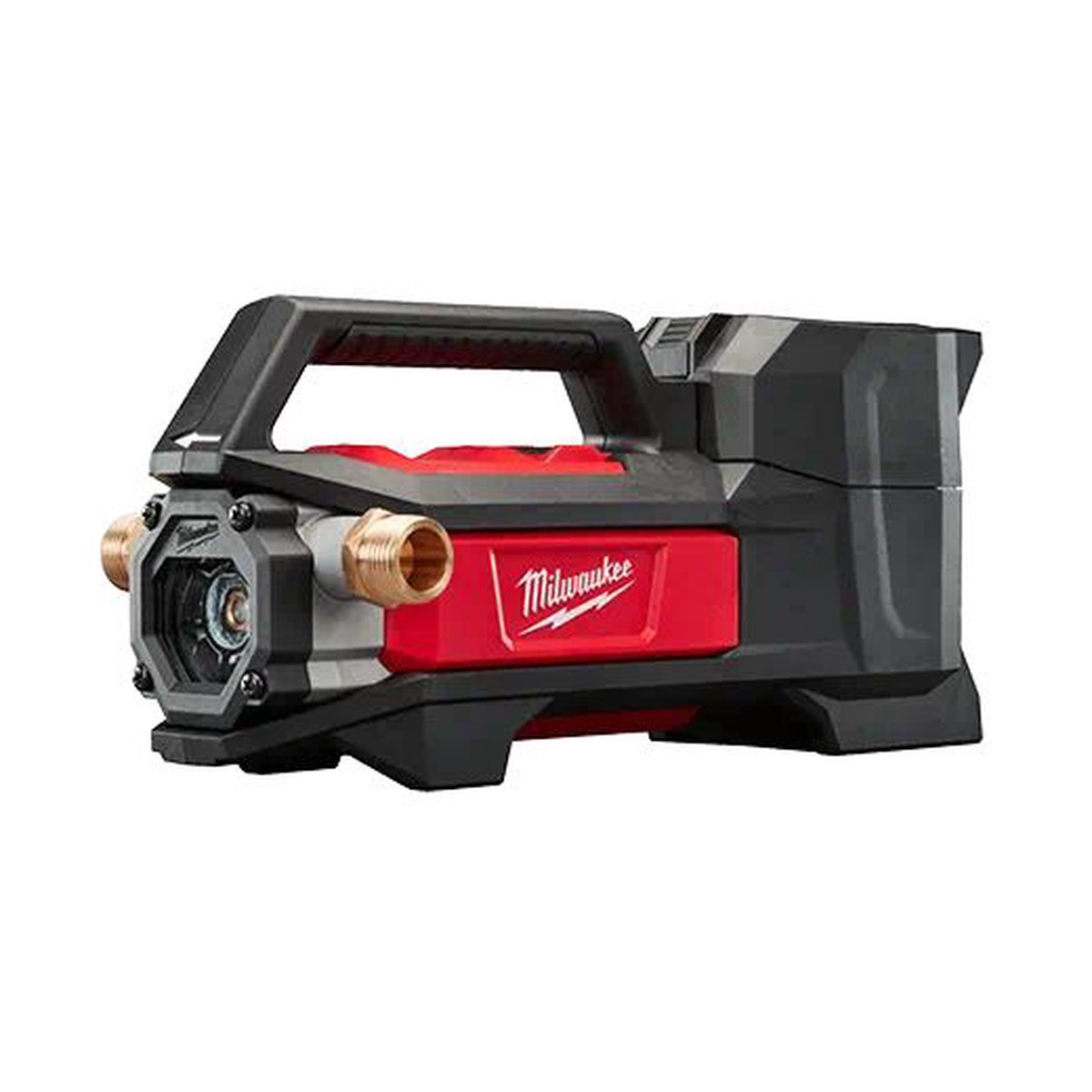

Milwaukee 2771-20 – M18 Transfer Pump

Our M18 Transfer Pump offers you faster water transfers and service calls. This portable water transfer pump is the industrys first cordless transfer pump, offering you the fastest setup. With an innovative self-priming pump, you can connect and go quicker than ever. The Milwaukee transfer pump’s flexible impeller and powerful pump move water at up to 480 Gal. per hour, generates up to 18 ft. of lift and produces up to 75 ft. of head height. As a part of the MILWAUKEE M18 System, REDLITHIUM battery packs power the water transfer pump, which delivers up to 240 Gal. moved per charge on an XC5.0 battery pack. Onboard REDLINK Intelligence can recognize when the tool stops moving water and automatically shuts itself off to avoid dry pumping. REDLINK also provides optimized performance and overload protection in abusive situations.

Includes

• (1) M18Transfer Pump (2771-20)

Features

• Self-priming, connect and go
• Pumps up to 480 GPH Lift up to 18 ft.
• Head height: up to 75 ft.
• Inlet connection: 3/4 in. brass
• Outlet connection: 3/4 in. brass
• Compatible with all M18 REDLITHIUM battery packs
• Part of the M18 system of 175+ tools

Specifications

• Height: 6.0″
• Length: 13.2″
• Voltage: 18V
• Weight: 7.9 lbs
• Width: 5.75″
• Power Source: Cordless
• Warranty: 5 Year Limited Warranty
• Battery System: M18

TOZ1827712
