B3104 Specification Sheet

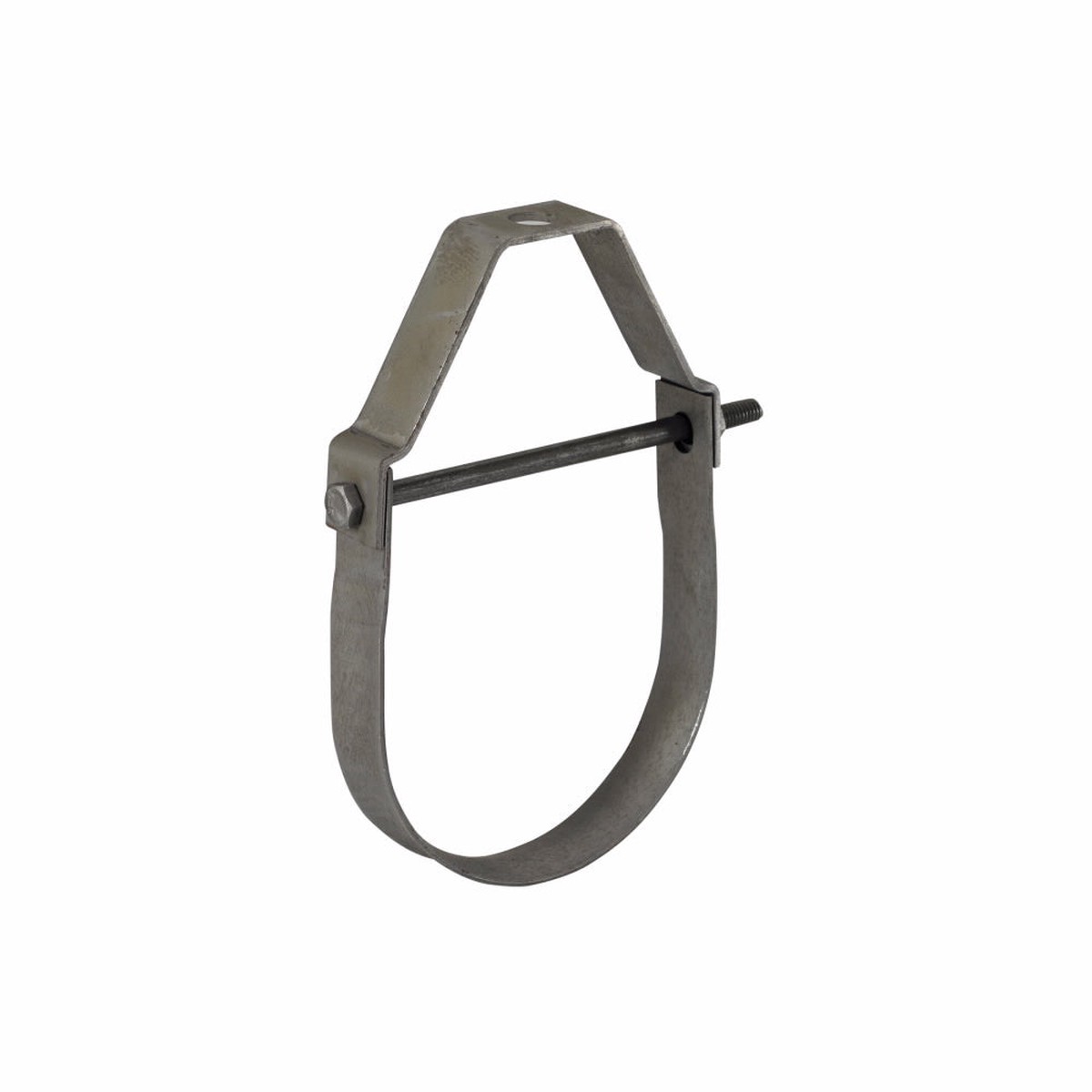

B-Line B3104-3/4 – 3/4″ Light-Duty Clevis Hanger – CL710

Eaton B-Line series light duty clevis hanger, 0.8750″ H x 2.75″ L x 2.25″ W, Steel, Plain, 0.75″ max pipe size.Recommended for the suspension of light stationary pipe allowing for vertical adjustment.

Features

• Size Range: 1/2″ (15mm) to 4″ (100mm) pipe
• Material: Steel
• Approvals: Underwriter’s Laboratories Listed in the USA (UL) and Canada (cUL) for sizes 3/4″ (20mm) thru 4″ (100mm).
• Conforms to Federal Specification WW-H-171E & A-A-1192A, Type 12 and Manufacturers Standardization Society ANSI/MSS SP-69 & SP-58, Type 1.

Specifications

• Nominal Pipe Size: 3/4″
• Rod Size: 3/8″
• Product Length: 2.75″
• Product Height: 0.875″
• Product Weight: 0.22 lb

PHS1414773
