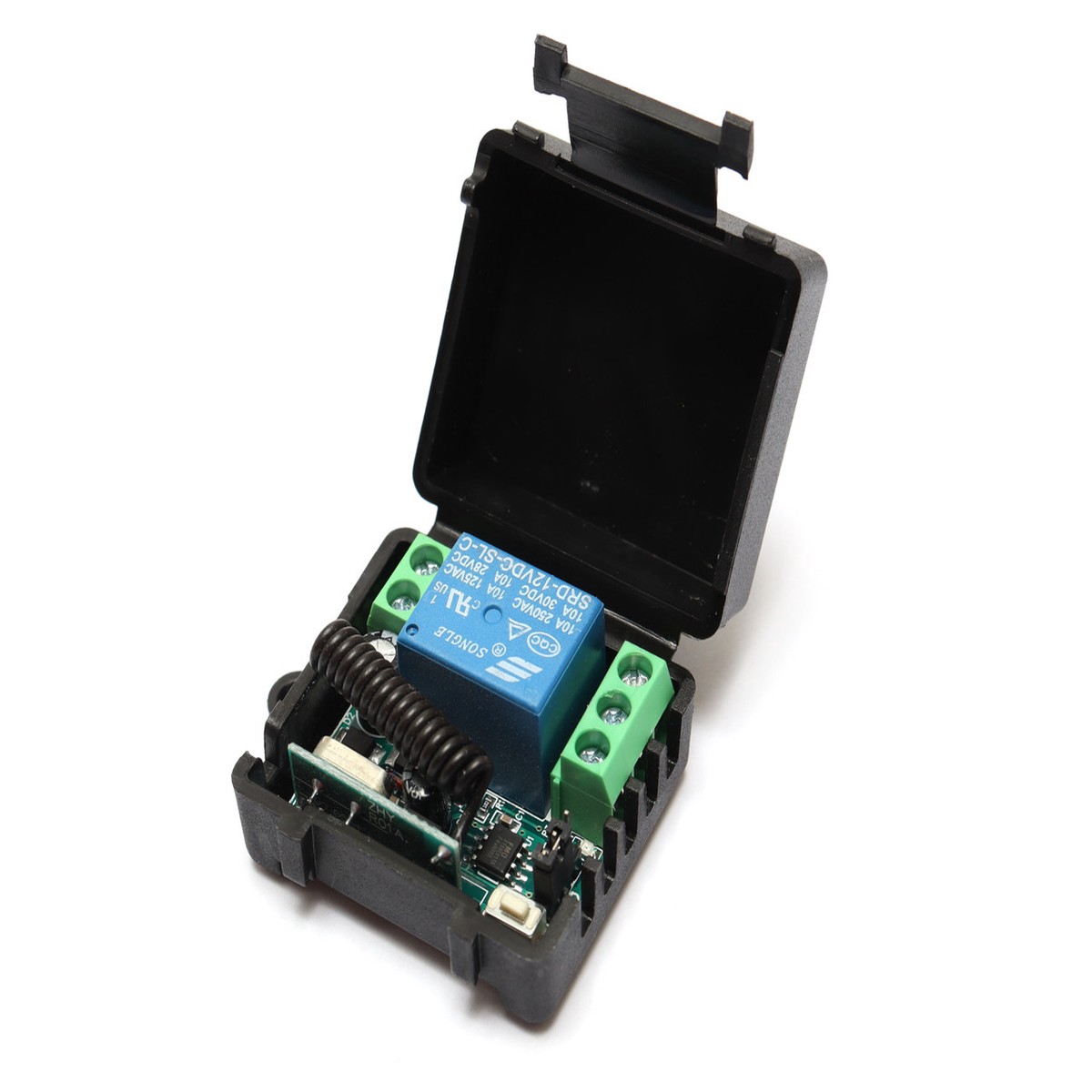

3 Mode Wireless Remote Control Relay - 1 Channel, 12V
3 Mode Wireless Remote Control Relay – 1 Channel, 12V
3 Mode Wireless Remote Control Relay - 1 Channel, 12VAdditional Notes:* Single Channel wireless remote control relay.* 3 Jumper selectable Modes 1: Jog: Relay energized (ON) as long as Button Pressed. 2: Alternate Action: Press ON-Press OFF 3: Interlocked: Press...
3 Mode Wireless Remote Control Relay – 1 Channel, 12VAdditional Notes:* Single Channel wireless remote control relay.* 3 Jumper selectable Modes 1: Jog: Relay energized (ON) as long as Button Pressed. 2: Alternate Action: Press ON-Press OFF 3: Interlocked: Press 1 Button to Energize;(ON) Press Other Button to turn OFF* Key Fob Battery: CR2032 (Included)* Module Voltage: 12VDC* Idle Current: <10mA* Frequency: 433MHz* Temperature: -20 to +60C* Receiving Sensitivity: >-105dB* Relay: SPDT* Contacts: 10 Amps @ 125VDC / 250VAC /30VDC* Extra/Replacement Key Fob: SEE 38226 MI* Module Dimensions (LxWxH): 1-3/8″x 1-3/16″x 5/8″* Key Fob Remote Dimensions (LxWxD): 2-3/8″x 1-1/8″x 1/2″ MPJA38225 RL
