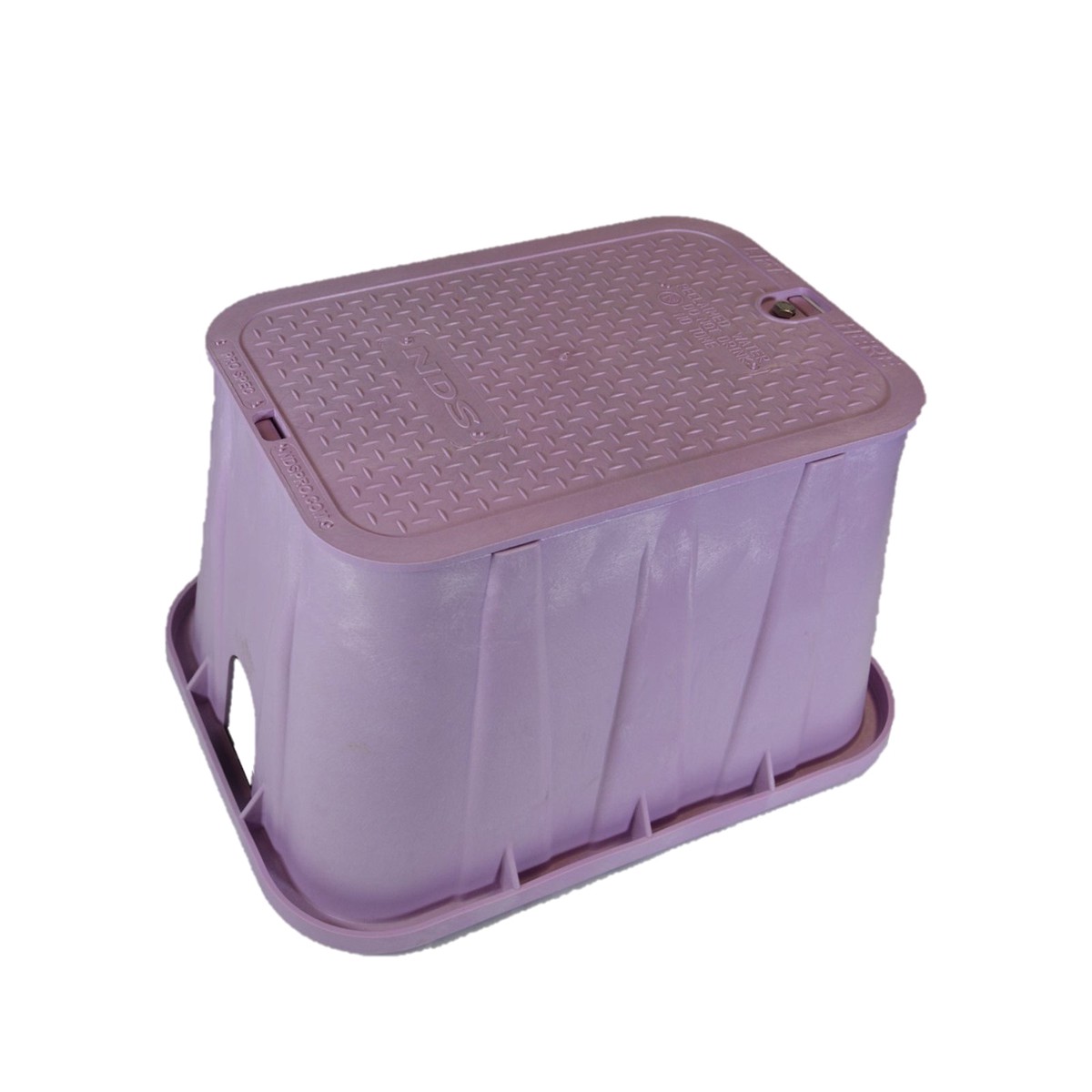

NDS 314PBCR – 14″ x 19″ Pro-Spec Series – Purple Box / Purple Bolt-down Cover – Reclaimed Water

The NDS Standard Series 14″ x 19″ body is tapered and has a minimum wall thickness of 0.200″. The body has a double wall at the top cover seat area with a minimum thickness of 0.250″. The cover seat area has 16 structural support ribs on the underside of the seat, each with a minimum thickness of 0.250″. The bottom of the body has a 0.500″ flange. The 14″ x 19″ cover has an average thickness of 0.250″. The valve box has a 3/8″ 304 Brass nut for the bolt-down as a standard feature. NDS valve, meter and access boxes are offered in a wide range of sizes from the 6-inch round valve box to the 17″ x 30″ rectangular box.

Specifications

• Series:Pro-Spec Series
• Box Color:Purple
• Box Material :HDPE
• Cover Color:Purple
• Cover Marking:Reclaimed Water, Do Not Drink
• Cover Material: HDPE
• Box Weight: 5.70 lbs
• Lid Weight: 2.61 lbs
• Total Weight: 8.31 lbs
• Box includes 3/8-16 brass nut
• All 14×19 covers and risers fit this box
• Load rating: Pedestrian & lawn care equipment
