The Zurn Wilkins 850XL Full Port Bronze Ball Valve is recommended for residential, commercial and industrial applications.

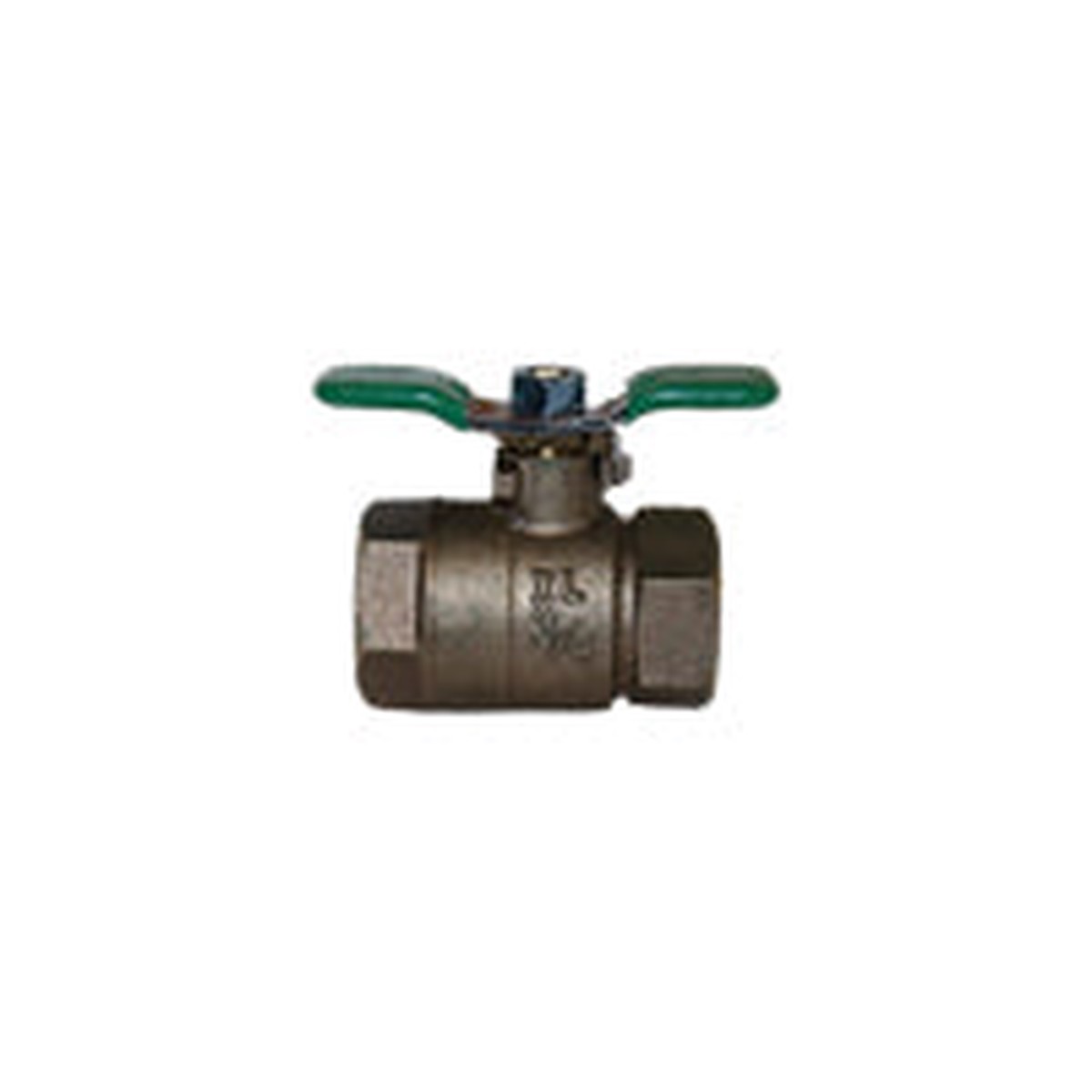

The 3/4″ 850TXL Full Port Bronze Valve is tapped (FNPT x FNPT) and used on Zurn Wilkins small diameter Backflow Assemblies for throttling and balancing installations of low pressure steam, air, water, and non-corrosive gas or oil. Ideal for use in residential, commercial, and industrial applications where lead-free valves are required, the pressure rating for the 850XL is 400 psi WOG with a temperature rating of 33F to 350F at 50 psi. The quarter turn, full port ball valves feature bronze body construction with chrome plated brass ball.

• Ideal for use in residential, commercial, and industrial applications where lead-free valves are required
• Quarter turn, full port ball valves provide ease in operation
• Safely throttles and balances low pressure steam, air, water, and non-corrosive gas/oil
• Chrome plated low-lead brass ball and bronze body construction resist corrosion
• Stainless steel handle and nut protect against corrosion
• Certified to NSF/ANSI 372 by IAPMO R&T
• Used on Wilkins small diameter backflow assemblies
• Lead Free Compliant
• Size: 3/4″
• Connections: FNPT
• Height: 5-3/5″
• Length: 2-3/5″
• Handle Material: Stainless Steel
• Valve Body Material: Bronze
• Port Opening: Full Port
• Valve Type: Ball Valve (No Union)
