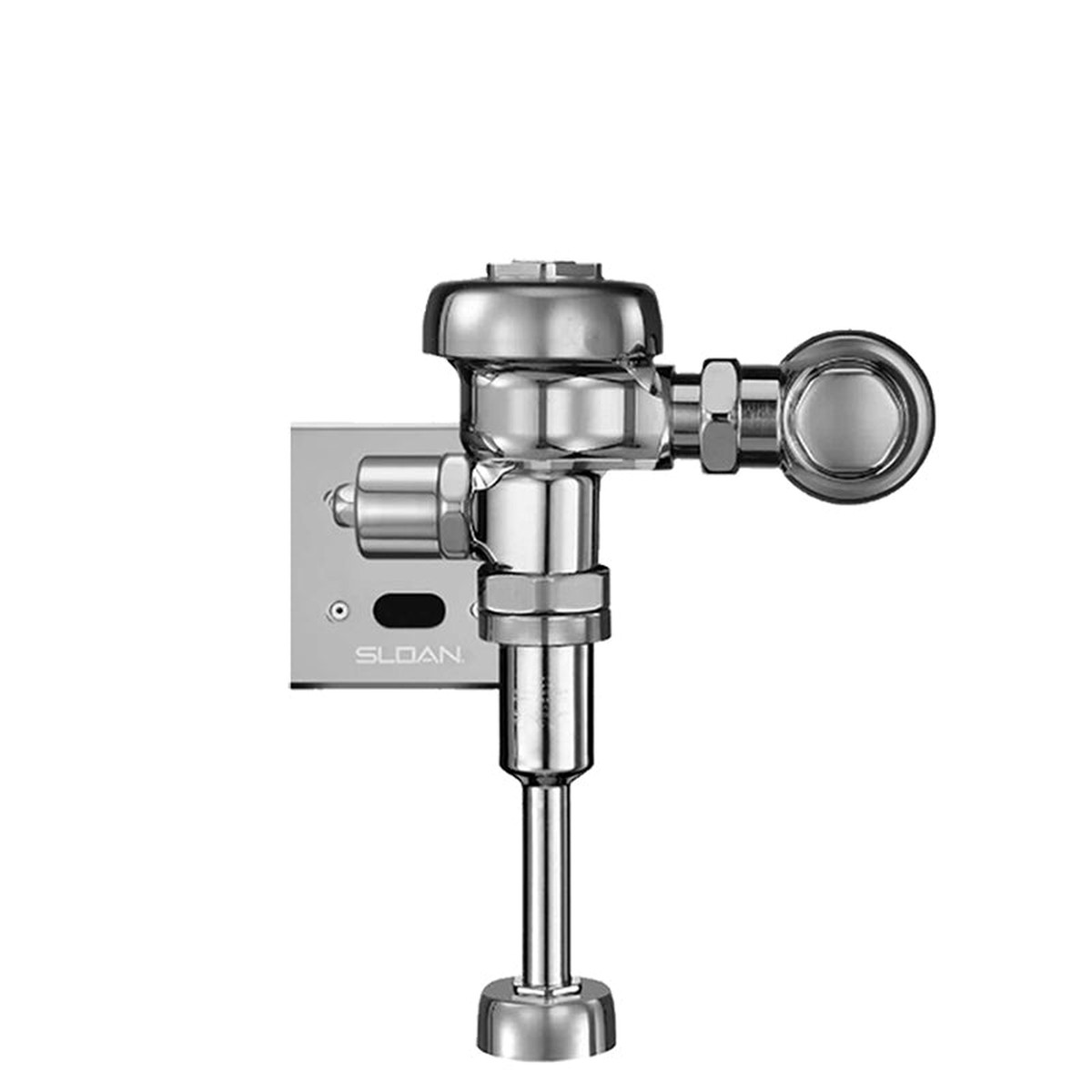

Sloan3772673 – 186 Sensor Urinal Flushometer – Top Spud – 1.0 GPF

1.0 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, 3/4″ Control Stop, Less Override, Hardwired, Sensor-Operated, 24V, Sloan Exposed Sensor Hardwired Urinal Flushometer.

Features

• High Chloramine Resistant PERMEX Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Vacuum Breaker with Flush Connection
• Sweat Solder Adapter with Cover Tube and Cast Wall Flange
• 3/4″ I.P.S. Screwdriver Bak-Chek Angle Stop with Vandal Resistant Stop Cap
• Spud Coupling and Spud Flange for 3/4 Top Spud
• No External Volume Adjustment to Ensure Water Conservation
• OPTIMA EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
• Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX rubber compound for Chloramine resistance

Specifications

• Flush Volume: 1.0 gpf (3.8 Lpf)
• Finish: Polished Chrome (CP)
• Power Type: Hardwired (HW)
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Top Spud
• Rough-In Dimension: 11-1/2″ (292mm)
• Spud Coupling:3/4″ (19mm)
• Supply Pipe: 3/4″ (19mm)

PTB1L00671
