Floor Sucker Series Data Sheet

Model 42 Instructions

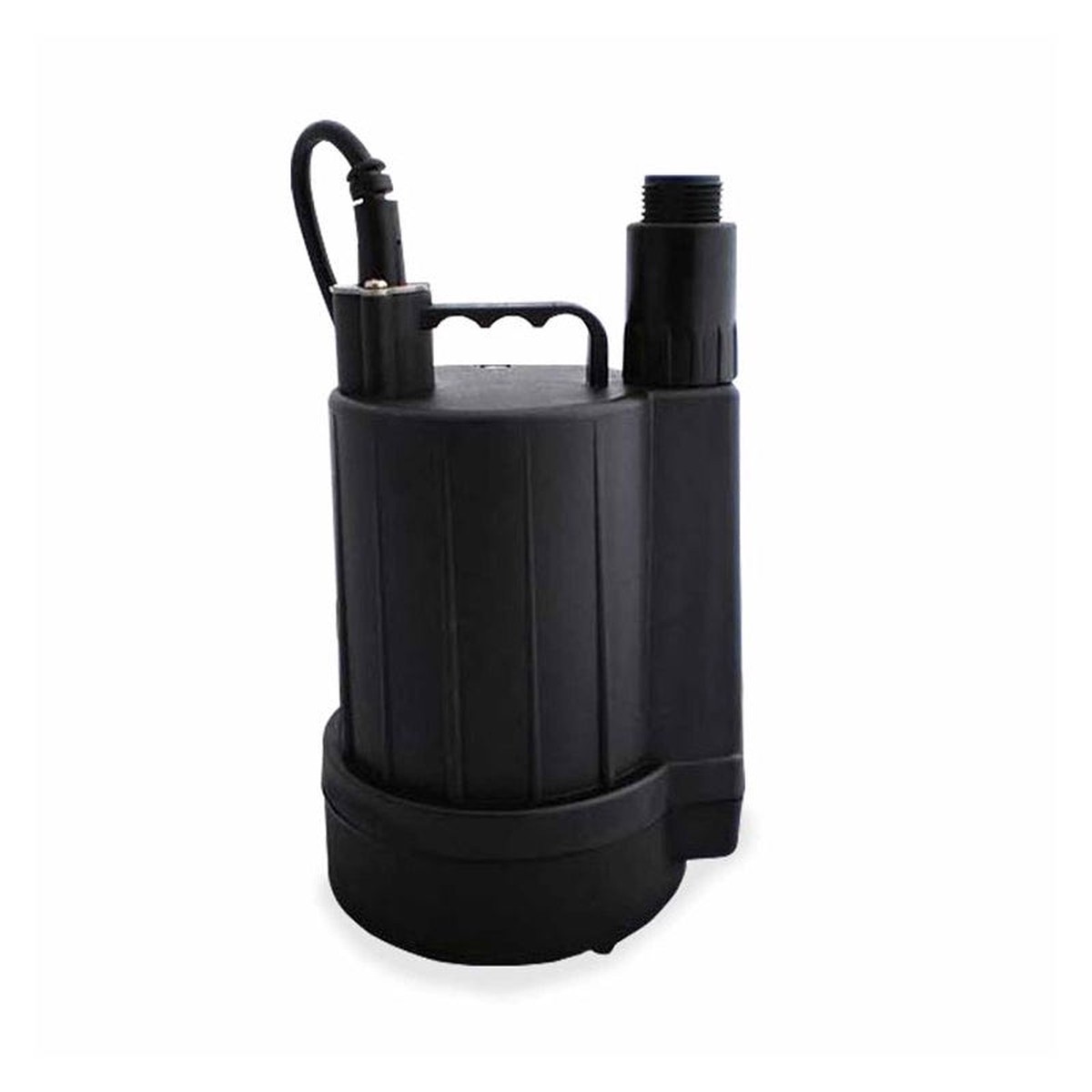

42-0007 Floor-Sucker-II-Utility-Pump-1/6-HP & 9-Ft-Cord

Ideal for intermittent use, these pumps can draw water down as low as 1/8 (3 mm). To reduce maintenance and eliminate clogging, a screened bottom intake design is used. Motor life is enhanced and extended by an energy-efficient design and a UV-protected pump body. Pump discharge is fully adaptable to standard garden hose connections, and a handle is provided for ease of handling.

Features

• Use fully or partially submerged
• Durable, polypropylene housing
• 3-prong power cord, 9′ or 20′ (3 or 6 m)
• High-quality, sealed motor
• Thermal overload protected motor
• Model 42 is adaptable for use with standard garden hose (fitting included), 1″ NPT pipe or 1-1/4″ slip fit (use discharge hose kit P/N 1010-0117)
• Screened bottom may be removed to allow easy cleaning
• Use indoors or outdoors
• Typical applications: dewatering and filling
• Oil-free (models 42 and 44 only)
• Models 42 and 44 remove water from any flat surface down to 1/8″ (3 mm). Model 46 will pump down to 1″ (25 mm).
• Light-weight and portable
• Compact design: models 42 and 44 will fit in a 7″ (178 mm) opening. Model 46 will fit in an 8″ (203 mm) opening.
• Temperature rating: 104 Degrees F (40 Degrees C)

Specifications

• Motor: 1/6 1/2 HP
• Voltage: 115 V
• Phase: 1 Ph
• Hertz: 60 Hz
• RPM: 3450 RPM
• Type: Permanent split capacitor
• Insulation: Class B
• Amps: 1.5 6.0 Amps
• Operation: Automatic and nonautomatic
• Discharge Size: Various
• Cord Length: 9 or 20′ (3 or 6 m) standard
• Cord Type: 3-prong
• Max Head: 33′ (10 m)
• Max Flow Rate: 3,300 GPH (12,492 LPH)
• Max Operating Temperature: 104 Degrees F
• Cooling: Oil free or oil filled
• Motor Protection: Auto reset thermal overload
• Motor Housing: Engineered plastic
• Base: Engineered plastic
• Upper Bearing: Ball bearing
• Lower Bearing: Ball bearing
• Mechanical Seals: Carbon and ceramic
• Impeller Type: Non-clogging vortex
• Impeller: Engineered plastic
• Hardware: Stainless steel
• Motor Shaft: SUS 416 stainless steel
• Gasket: NBR
