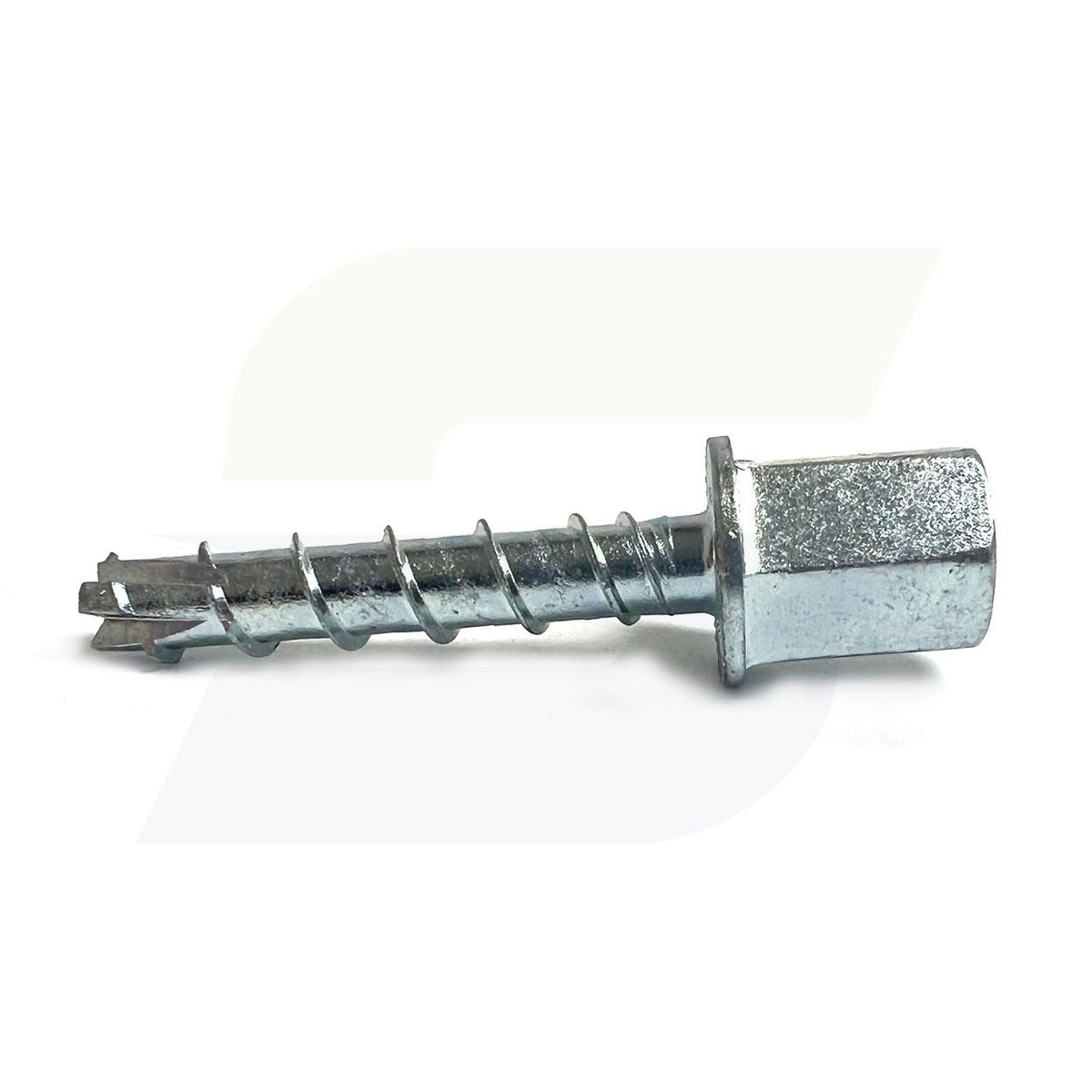

Hilti 423472 – Internally Threaded Screw Anchor – KH-EZ-I 1/4″x1-5/8″ w/3/8″ CPLR

Ultimate screw anchor for quicker and more economical fastening of threaded rod to concrete (carbon steel, internally threaded)

• Material, corrosion: Carbon steel, zinc-plated
• Head configuration: Internally threaded
• Socket size: 0.5 in

Features

• Time and labor-saving fastening solution especially suited for seismic and cracked concrete overhead applications requiring an ICC approval
• Quicker and more convenient to install overhead than flush anchors smaller drilling diameter and no hammering required
• Easier to set, even under critical conditions optimized screw threads and cutting edges suitable for high-strength concrete, used drill bits, rebar hits, and other challenging base materials
• For use with standard ANSI-tolerance drill bits no special tolerance drill bits required when installing these screw anchors
• KH-EZ I 3/8″ is FM approved for hanging of pipes up to 8 diameter

Applications

• Various piping or ventilation duct installation applications
• Rod hangers for single or multiple pipes
• Suitable for repetitive installation tasks
