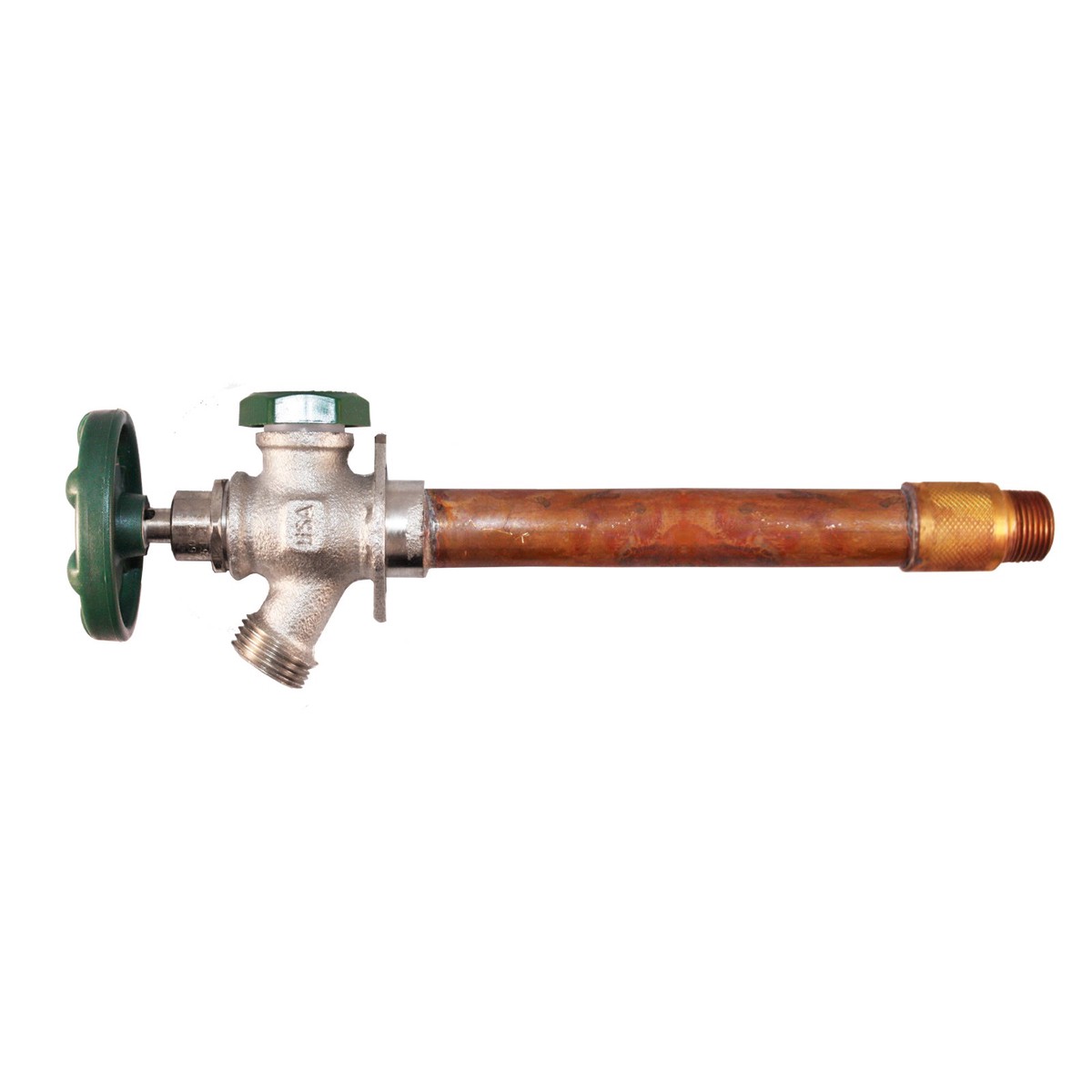

Arrowhead 426BFP12 – 12″ Anti-Siphon Frost Free Lawn Faucet with Vacuum Breaker

The Arrowhead Brass 420 series anti-siphon frost-proof hydrants have a1/2″ MIP and1/2″ copper sweat inlet. The 426LF series includes Arrowhead Brasss exclusive O-ring bonnet and stem design (no packaging nut to tighten) and a 3-year limited warranty.

Anti-Siphon Frost-Proof Wall Hydrants by Arrowhead Brass are made of heavy-duty Lead-Free brass and copper. The Arrowhead Brass 420 series features QuickTurn easy on-off operation and built-in protection from back-pressure and back-flow siphonage. Available in various lengths and inlet connections, Arrowhead Brass frostproof wall hydrants are perfect for any installation to provide outdoor watering all year. Arrow-Breaker Frost-Proof Wall Hydrants are UPC listed and certified to ASSE 1019-A and NSF/ANSI 372 LeadFree by IAPMO.

Features

• Integral Vacuum Breaker and Vandal-Resistant Vented Cap
• Made from a heavy-duty, lead-free bronze alloy
• Inlet Connection: 1/2 male iron pipe thread (OD) and copper sweat (ID)
• Outlet Connection: 3/4 male hose thread
• Integral anti-siphon backflow protection ASSE 1019-A approved, IAPMO certified
• QuickTurn Easy on/off operation without letting go of the handle
• Lead-free certified to NSF/ANSI 372 (by IAPMO)
• 3-year limited warranty
• Max pressure: 125 PSI
• Max temperature: 180 degrees F
