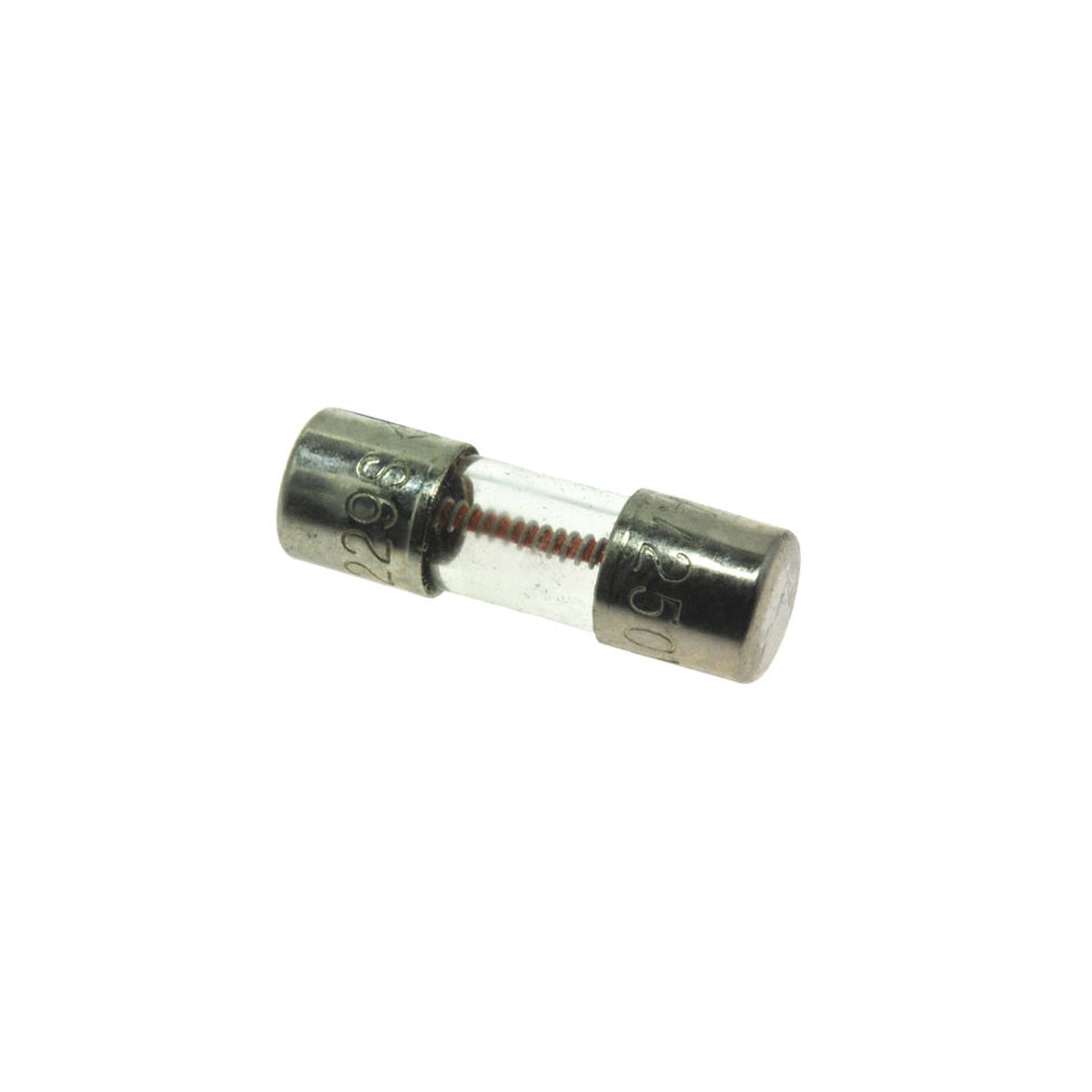

Rheem46-22863-82-5PK – 2A Glass Fast Acting Fuse – 5 Pack

Technical Data

• Fuse Application: Control – Supplemental
• Fuse Mounting: Cartridge
• Sub-Type: Glass – Fast Acting
• Maximum Voltage Rating (VAC): 350
• Current Rating (A): 2
• Maximum Interrupting Rating (A-AC): 100A @350VAC
• Overall Length (in.): 0.577 (15 mm)
• Diameter (in.): 0.177 (4.5 mm)
• Littelfuse Cross Reference: 2AG-229-002

Where Used

• 80PJ
• 90TJ
• RGDG
• RGFD
• RGLH
• RGPH
• RGPJRGSA
• RGTJ
• SGDG

Replaces

• 46-22863-82

HUZ2010235
