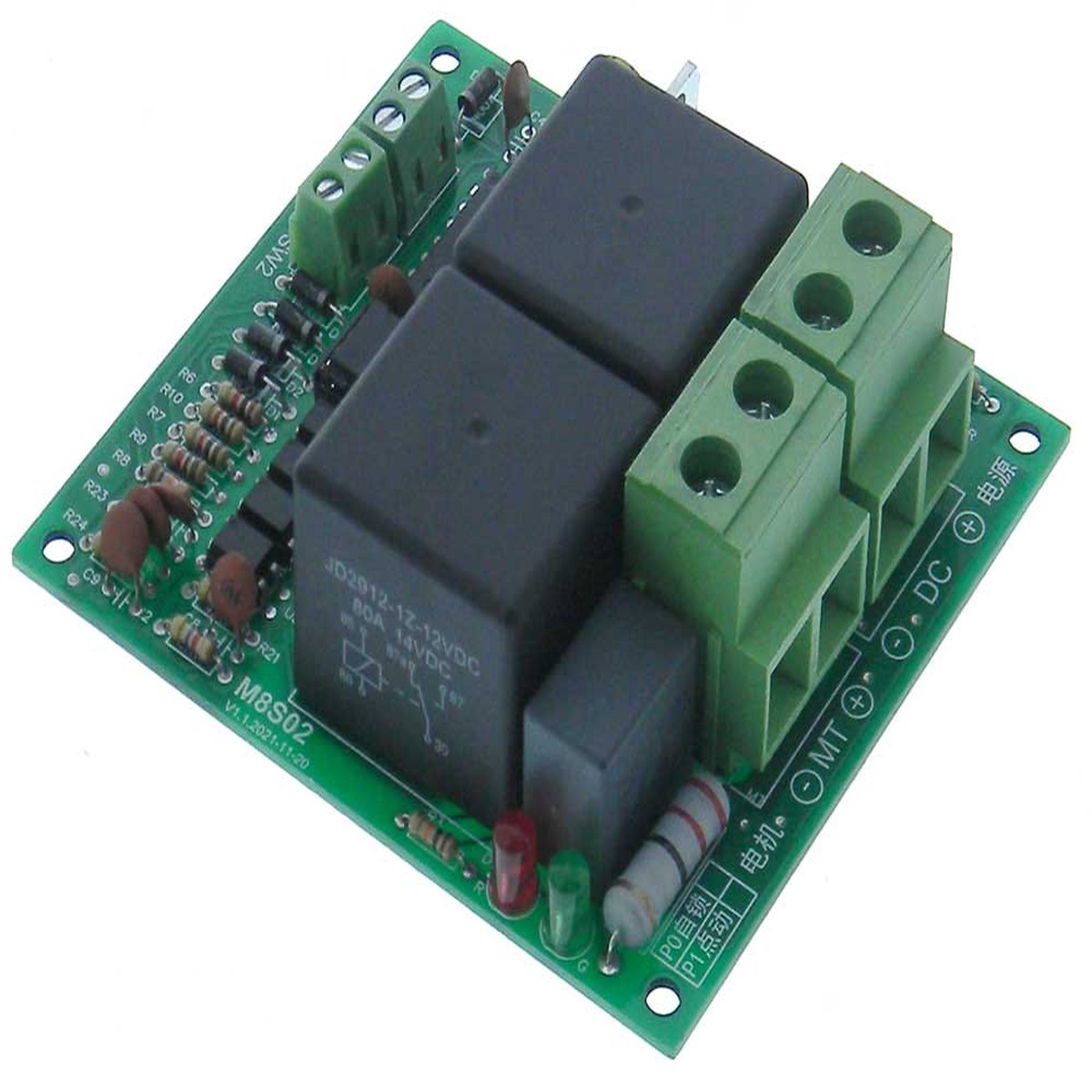

500 W – 12VDC Motor Reversing Control – Continuous ModeAdditional Notes:* Reversing Control board for DC Motors.* Mode: Continous – Motor starts and runs Continuous whenever K1 or K2 Pushbutton switch signal is applied (Forward or Reverse). SW1 or SW2 will stop respective Forward/Reverse (useful input for Limit switches).* Opposite Direction Input will change the direction of rotation after ~.3sec.* Voltage: 12VDC* Current: 80 Amps max (Surge)* Power: 500W max (40A)* Control Signals: Low level input signal (0V or GND)* Operating Temperature: -40 to 80C* Humidity: 10% to 90%RH* Dimensions (LxWxH): 90mm x 82mm x 34mm (3-1/2″ x 3-1/4″ x 1-3/8″) MPJA37768 MD
