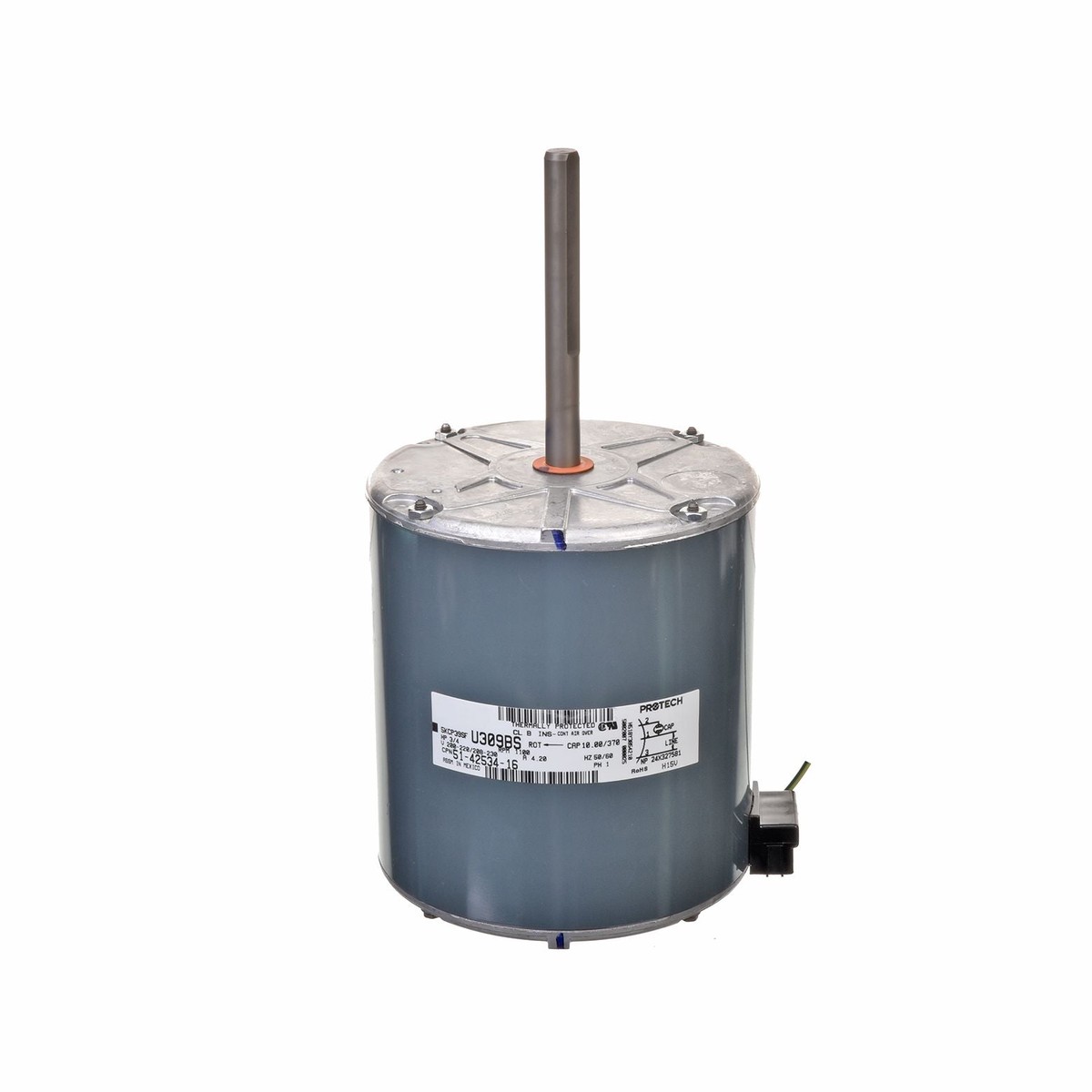

Rheem51-42534-16 – 3/4 HP Condenser Motor – 1 Phase – 1 Speed – 1075 RPM – 230V

Technical Data

• HP: 3/4
• No. of Speeds: 1
• High Speed (RPM): 1075
• Input Voltage (V): 208
• Input Voltage (V): 220
• Input Voltage (V): 230
• No. of Phases: 1
• Frequency (Hz): 50
• Frequency (Hz): 60
• Rotation Direction (OSE): CCW
• Run Capacitor (uF/V): 10/370
• FLA at 208V (A): 4.20
• LRA at 208V (A): 9.60
• FLA at 220V (A): 4.20
• LRA at 220V (A): 9.60
• FLA at 230V (A): 4.20
• LRA at 230V (A): 9.60
• Shaft Diameter (in.): 1/2
• Motor Body Diameter (in.): 5-39/64
• Keyed/Flat Shaft Length (in.): 2-3/4
• Overall Shaft Length (in.): 4-27/64
• Motor Body Length (in.): 6-1/4
• Overall Motor Length (in.): 10-23/32
• Mounting: Shell-band
• Frame Size: 48
• Bearing Type: Ball
• Application: Condenser
• Drive Type: Direct Drive

Where Used

• RKKB
• RLKB
• SLKB

HUZ2013170
