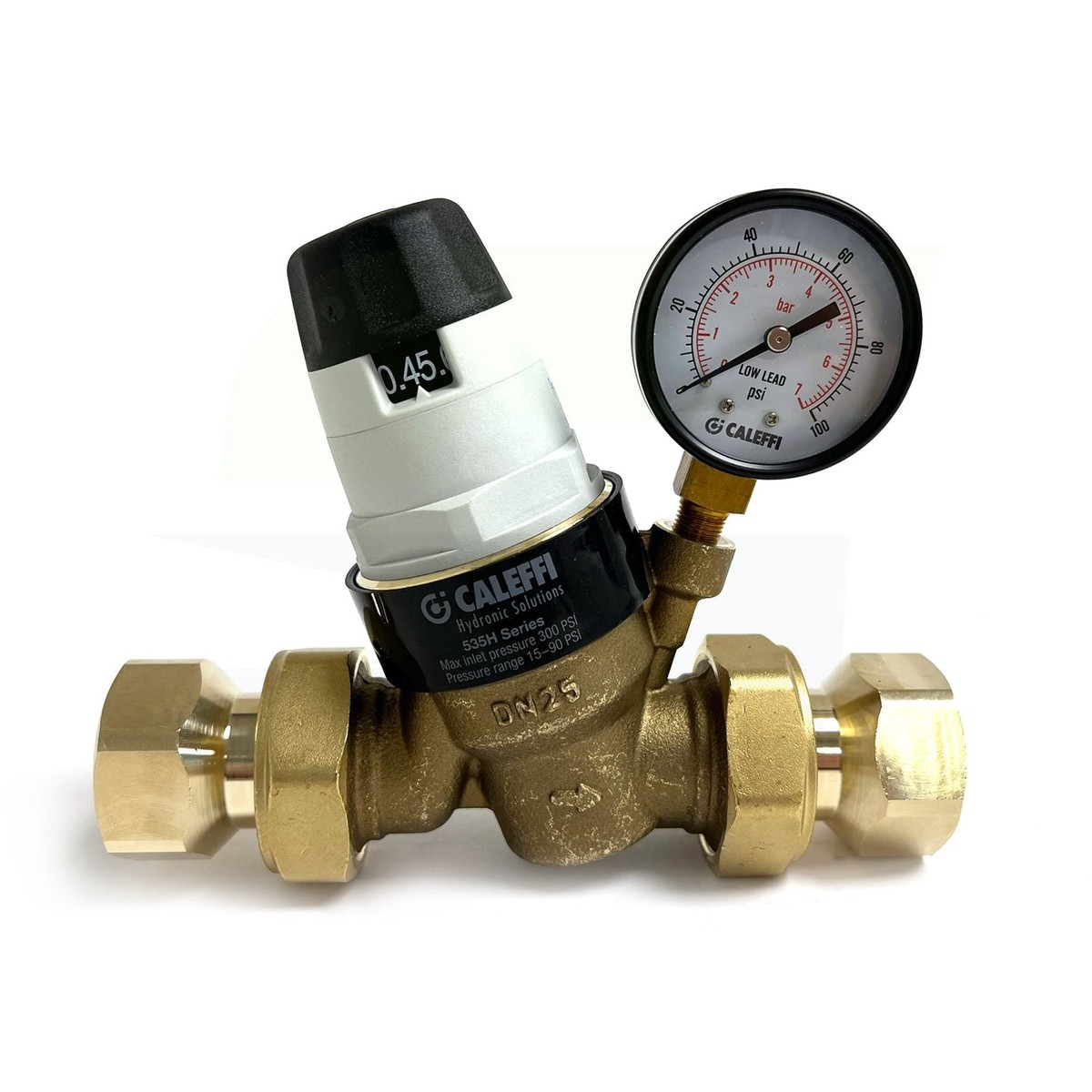

Caleffi535361HA – 535H Series Reducing Valve ASSE 1003, Female 1″ NPT with Pressure Gauge

Pre-adjustable pressure reducing valve for residential and commercial plumbing applications.

Features

• DZR low lead“Ecobrass” body.
• Unique noise reducing pressure balanced cartridge.
• Low friction,anti-scale moving parts.
• High flow seat design.
• Dial indicator with direct readout.
• Replaceable cartridge.
• Integral stainless steel filter.
• Adjustment locking screw.
• Optional outlet pressure gauge.
• Max working pressure: 300 psi (20 bar)
• Max working temperature: 180F (80C)
• Pressure setting range: 15 – 90 psi (1 – 6 bar)
• Factory setting: 45 psi (3 bar)

HCAL123685
