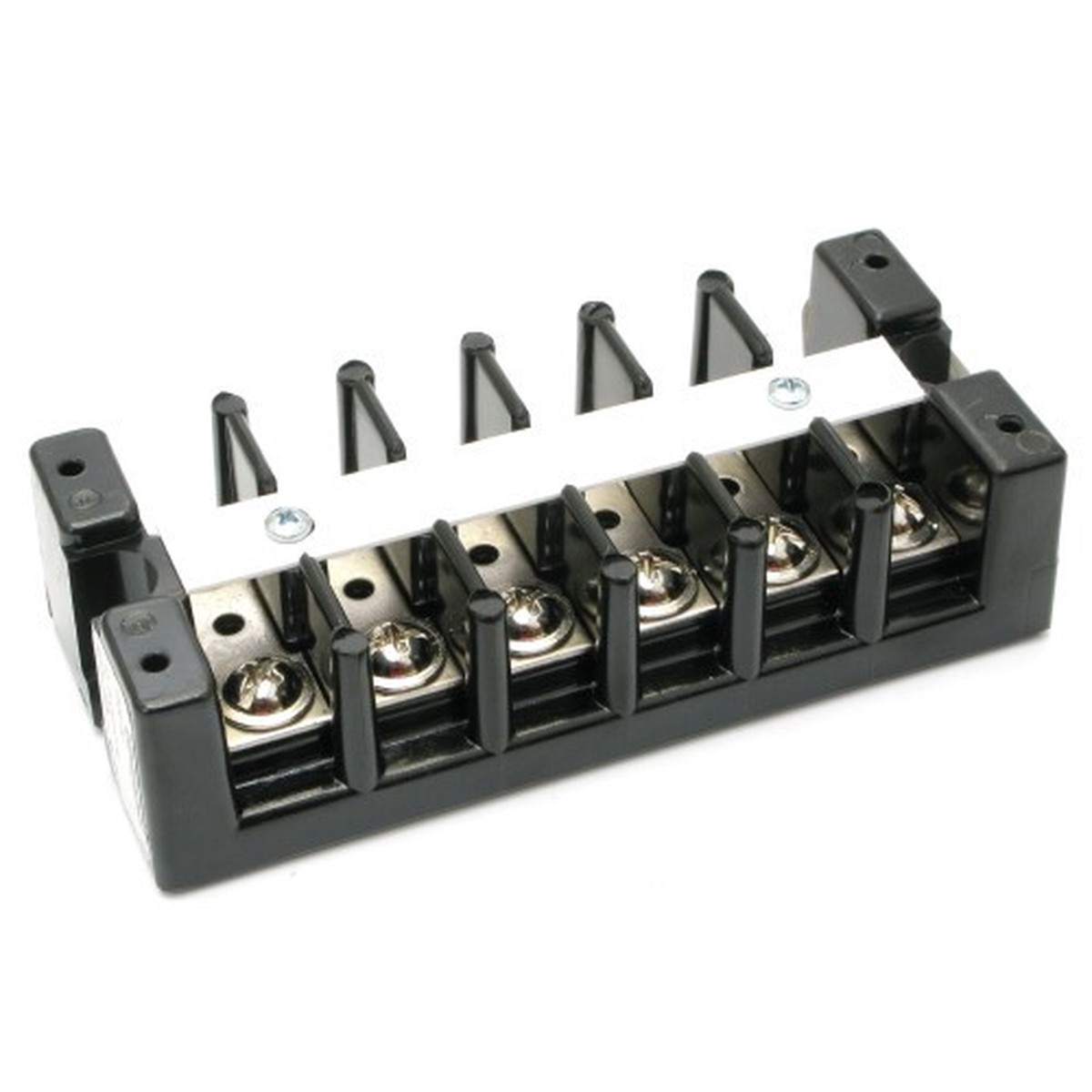

6 Position Terminal / Barrier Strip 600 Volt

6 Position Terminal / Barrier Strip 600 Volt

$5.99 $4.79

6 Position Terminal Strip 600 Volt AC/DC Rated 75 AmpMarathon 1500 SeriesHeavy Duty Terminal Block, 600 Volts AC/DC (UL/CSA)Base, General Purpose Phenolic, 150 Degree C (UL RTI)Connector, Brass, Nickel PlatedPhil-Slot Screws, Brass, Nickel Plated, 10-32Marking Strip: Vinyl (White)Marking strip anchor...

6 Position Terminal Strip 600 Volt AC/DC Rated 75 AmpMarathon 1500 SeriesHeavy Duty Terminal Block, 600 Volts AC/DC (UL/CSA)Base, General Purpose Phenolic, 150 Degree C (UL RTI)Connector, Brass, Nickel PlatedPhil-Slot Screws, Brass, Nickel Plated, 10-32Marking Strip: Vinyl (White)Marking strip anchor screws: Steel, zinc platedCurrent rated up to 30 Amps with unprepared wire, #10-22 AWG CopperCurrent rated up to 75 Amps when wired with crimp type ring, spade or fork terminal5/8 Inch(0.625) Line To Line SpacingUL Recognized File No. XCFR2.E62806CSA Certified File No. LR19766CE – 1000 VoltsRoHS CompliantDimensions: 4-1/2″ (L) x 2″ (W) x 1-3/16″ (H)Marathon1506 DJ

There are no reviews yet.
