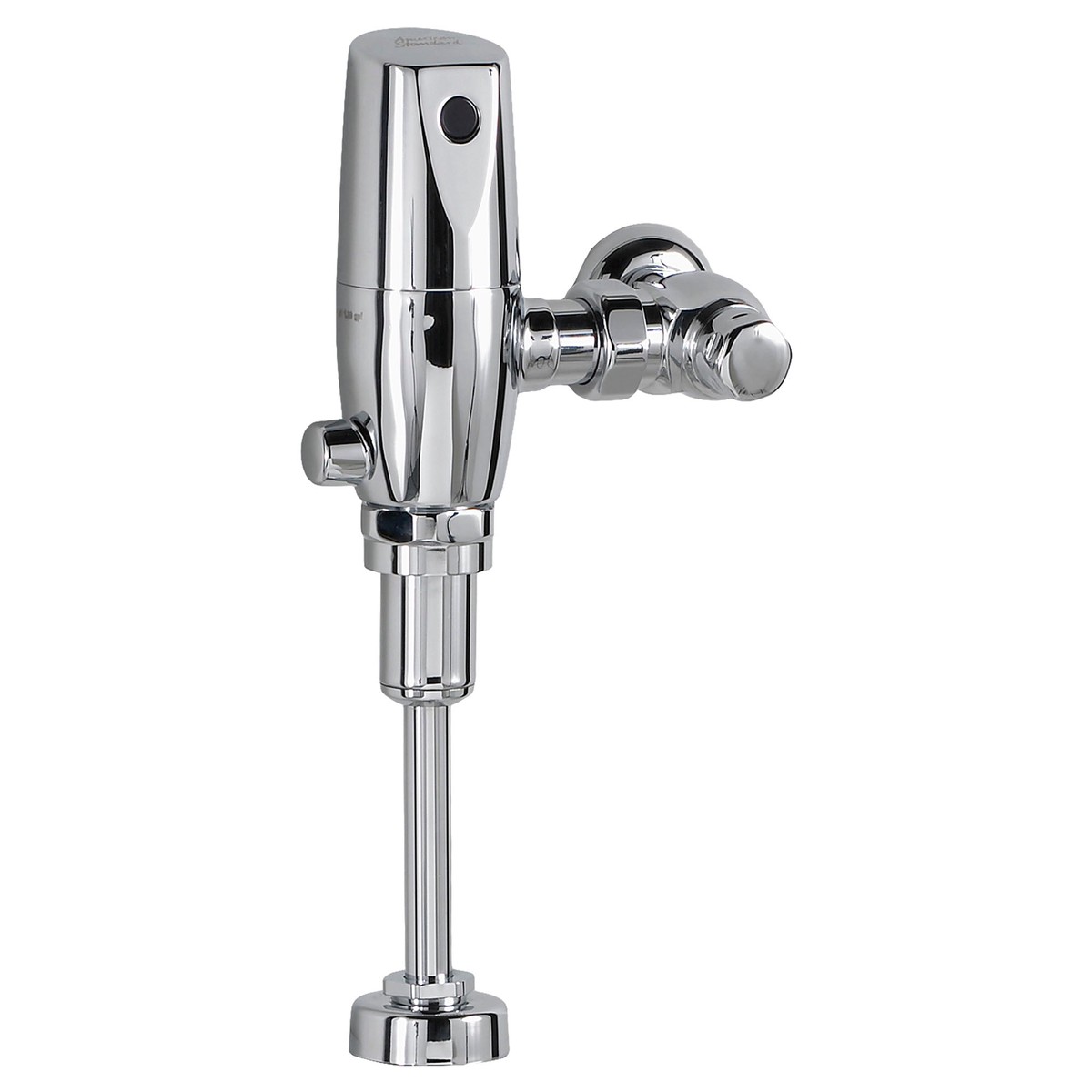

American Standard6063051.002 – Ultima Selectronic Touchless Urinal Piston Type Flush Valve Battery – 0.5 GPF

The Selectronic Urinal Flush Valves feature a self-cleaning piston design that saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs. The Selectronic flush valves include a pressure compensation feature that maintains the proper flush volume regardless of inlet water pressure.

Features CR-P2 lithium battery installed. Battery Life: 4 years assuming 4,000 flushes per month Touch-free operation helps keep the restroom clean and hygienic Pressure Compensation feature maintains accurate flush volume regardless of inlet water pressure Self-cleaning piston significantly reduces clogging and prevents valve run-on Integral wiper spring cleans the refill orifice with every flush for extraordinary reliability No Routine Maintenance no diaphragms to replace; no filters to clean Selectronic Proximity System with programmable sensor allows for easy adjustment and customization State-of-the-Art Electronics prevent ghost flushing Fully Mechanical Manual Override Button can flush the valve without power Fail-Safe: Valve automatically closes upon loss of power or water pressure and does not need to be reset Adjustable Sanitary Flush cleans the fixture & maintains the trap seal Stadium Feature: Valve automatically switches to water savings mode during periods of heavy usage Chemical Resistant EPDM Seals for extended life Can be installed left or right handed. Specs 11-1/2′” rough-in Fits 3/4″ top spud urinals

Features

• For urinals with 3/4-inch (19 mm) exposed top spud
• 5-year CR-P2 lithium battery installed in valve
• Touchless operation limits the spread of germs
• Exclusive DynaClean self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• Fully mechanical manual override can operate without power
• Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
• Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressure
• Proprietary brass alloy resists dezincification
• 11-1/2″ (292 mm) rough-in

PGZ2121700
