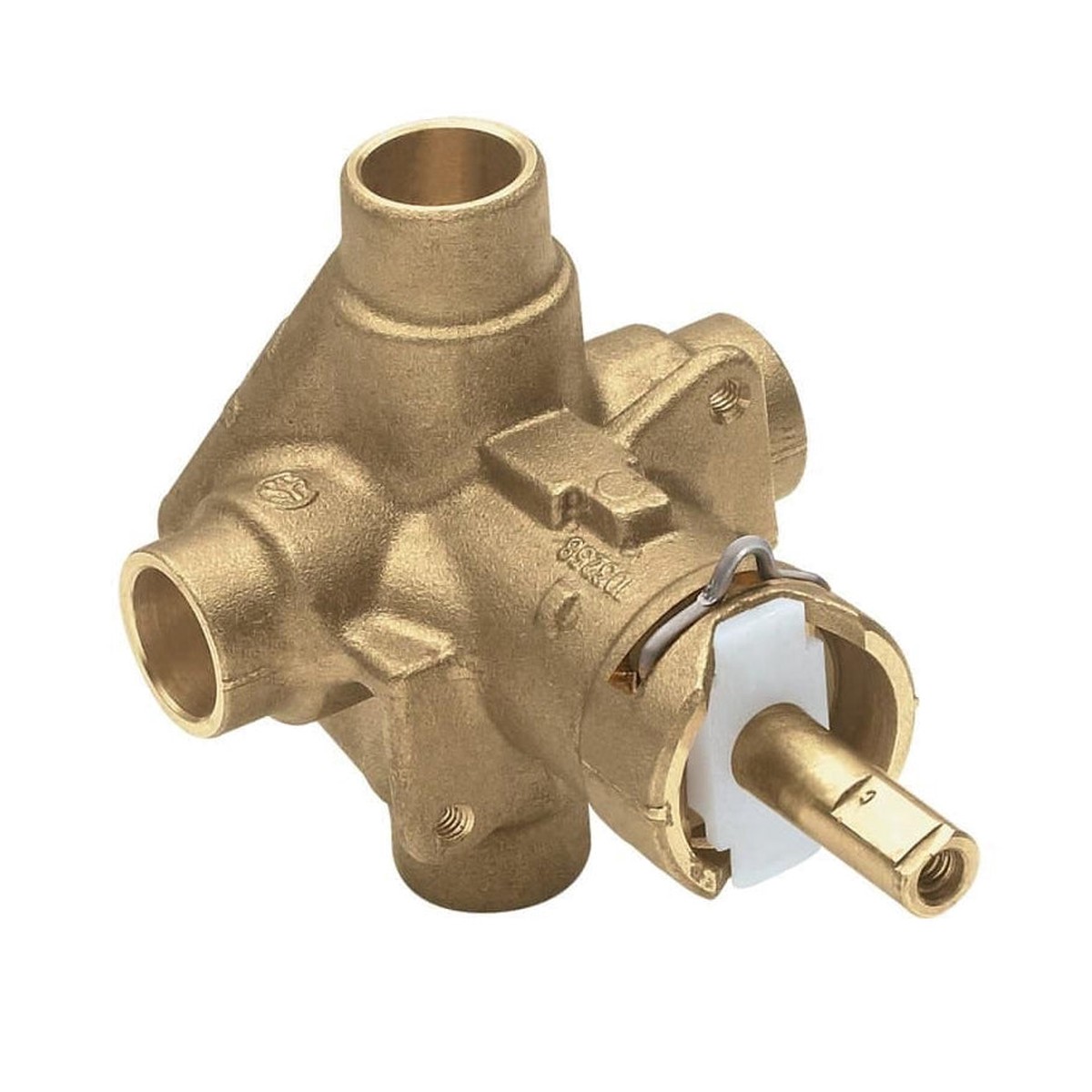

Moen 62320 – 1/2″ Sweat Posi-Temp Pressure Balancing Rough-In Valve

Features

• Brass construction
• 1/2″ CC or IPS connections
• Pressure balancing, four port, cycle valve OPERATION
• Adjustable temperature limit stop to control maximum hot water temperature
• Pressure balancing mechanism maintain selected discharge temperature to +- 2 degrees F
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
• Third party certified by CSA to meet CSA B-125, ASME A112.18.1M and all applicable requirements referenced therein
• Lifetime limited warranty against leaks, drips and finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations

PTB1F62320
