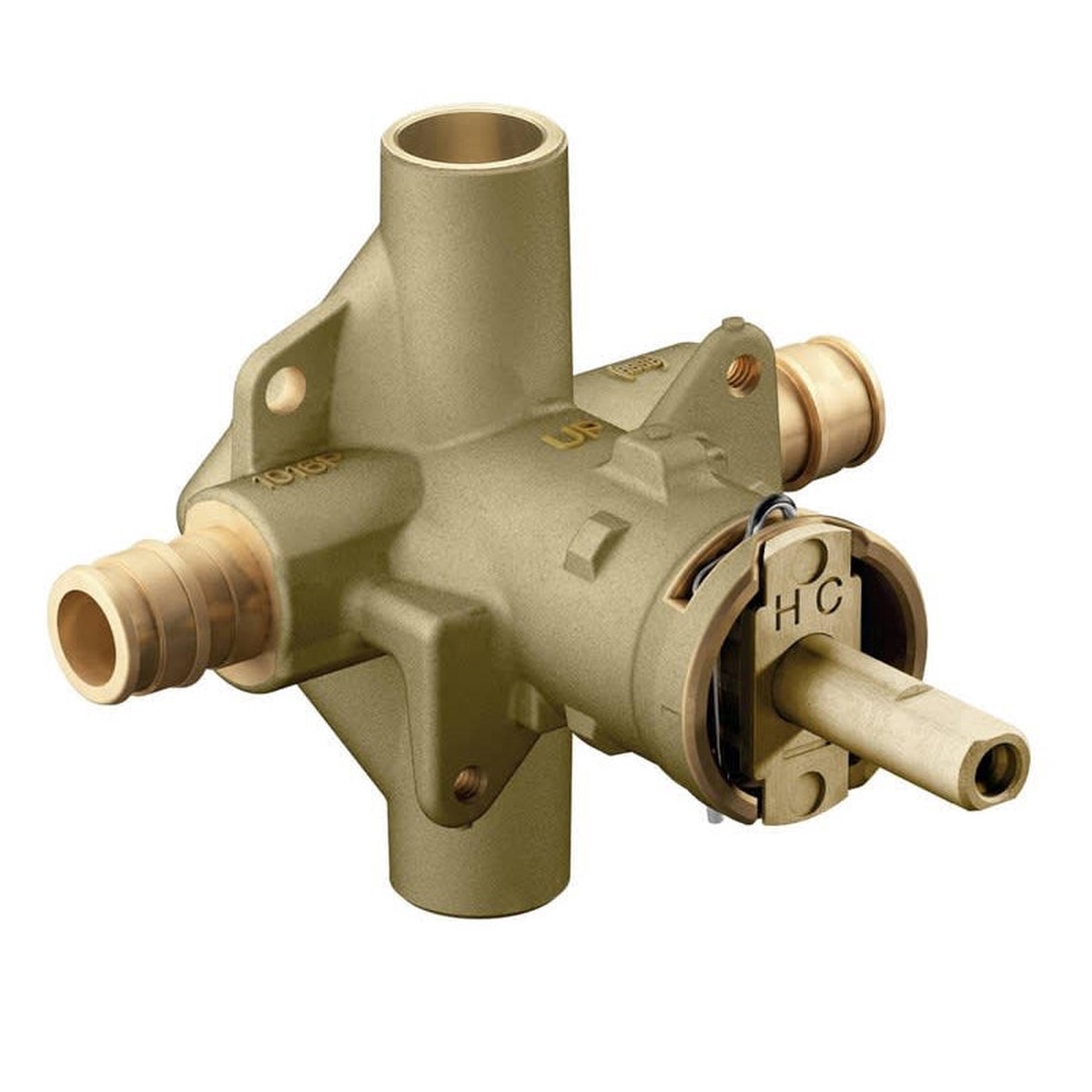

Moen 62365 – 1/2″ Posi Temp M-PACT Tub and Shower Pressure Balanced Valve with PEX connections

Changing the look of your Bath has never been faster and easier. The M-PACT Common Valve System allows you to upgrade the trim style or swap out finishes on your fixtures without replacing the valves. So once the system is in place, you can change your decor as often as you want at any point in time — during construction process or years down the road. All it takes is a few minutes. Best of all, the M-PACT Common Valve System is as easy to install as a standard valve.

Features

• Brass construction
• Cold expansion PEX connections
• Pressure balancing, four port, cycle valve
• Adjustable temperature limit stop to control maximum hot water temperature
• Pressure balancing mechanism maintain selected discharge temperature to 3F
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
• Lifetime limited warranty against leaks, drips and finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations

Related Video:Installing a 1-Handle Posi-Temp Shower Valve: Copper to Copper
