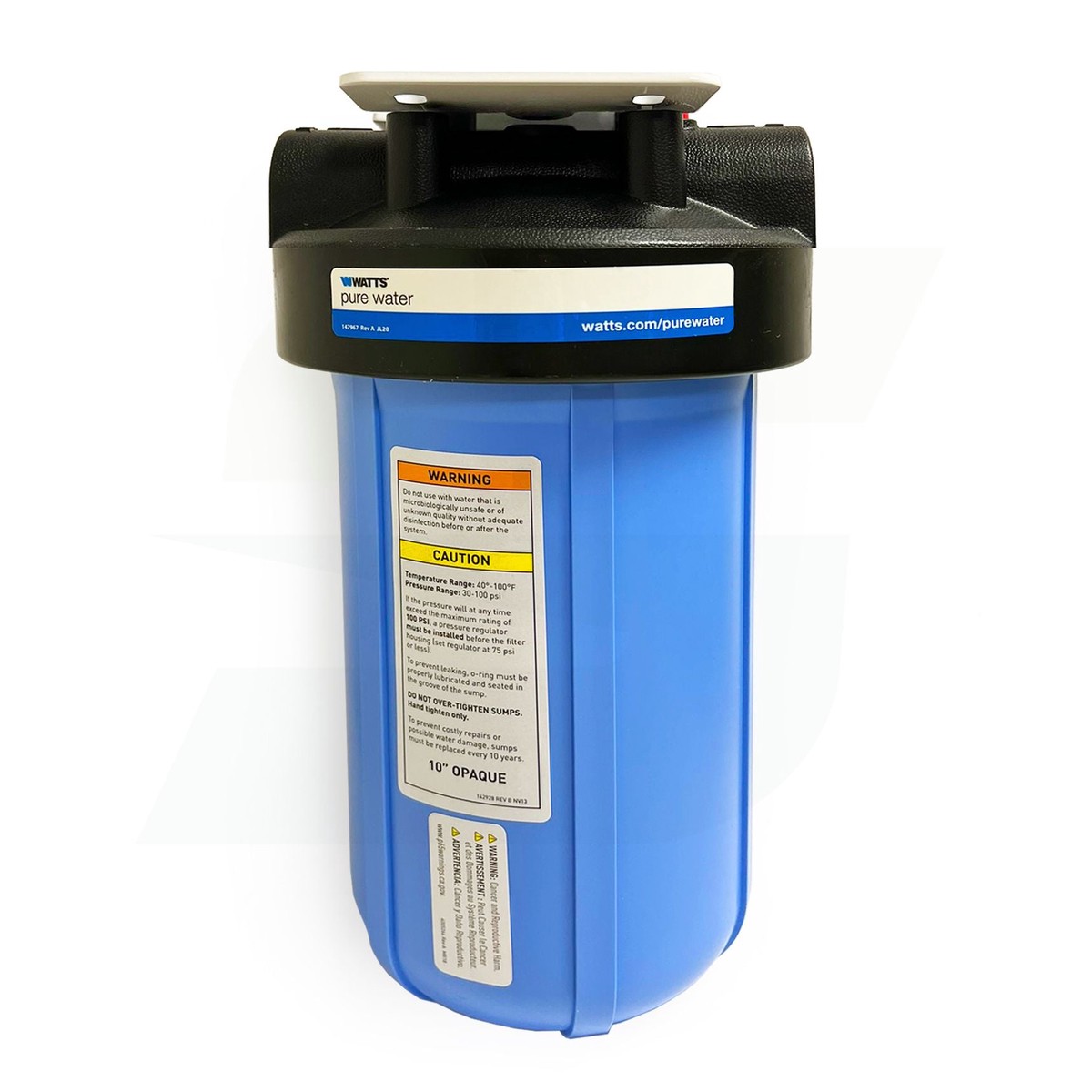

Watts7100268 – 10″ Plastic Filter Housing with Pressure Relief – PWHIB

This 10 inch complete filter housing kit is designed for the Full Flow housing. It includes the housing with a pressure relief lid, wrench, single mounting bracket and all the mounting screws.

Watts’ poly filter housings are manufactured from the highest quality 100% polypropylene. Leak-proof sealing is accomplished by compression against a top seated EPDM O-ring located in the housings sump. Thick wall and added ribs make the housings ideal for a wide range of applications. Polypropylene construction provides excellent chemical resistance in most installations environments. Housings supplied with pressure relief valves.

Features

• 10 Inches long
• Blue housing with black lid
• Includes pressure relief valve
• 1 IN Port connection
• Brand: Watts
• Cap Color: Black
• EAN: 098268564396
• Housing Finish: Smooth Plastic
• Housing Material: Polypropylene
• Connection Size: 1″ NPT
• Connection Type: Female Threaded
• Lead Free: YES
• Lid Closure Type: Screw-twist
• Max Temp: 100 degrees F
• Min Temp: 40 degrees F
• O-ring Material: EPDM
• Part Number: 7100268
• Pressure Drop: 0.6 to 1 PSI based on the micron
• Pressure Rating-BAR: 6.21
• Pressure Rating-PSI: 90
• Pressure Relief: Yes
• Series: PWHIB
• Sump Color: Blue
