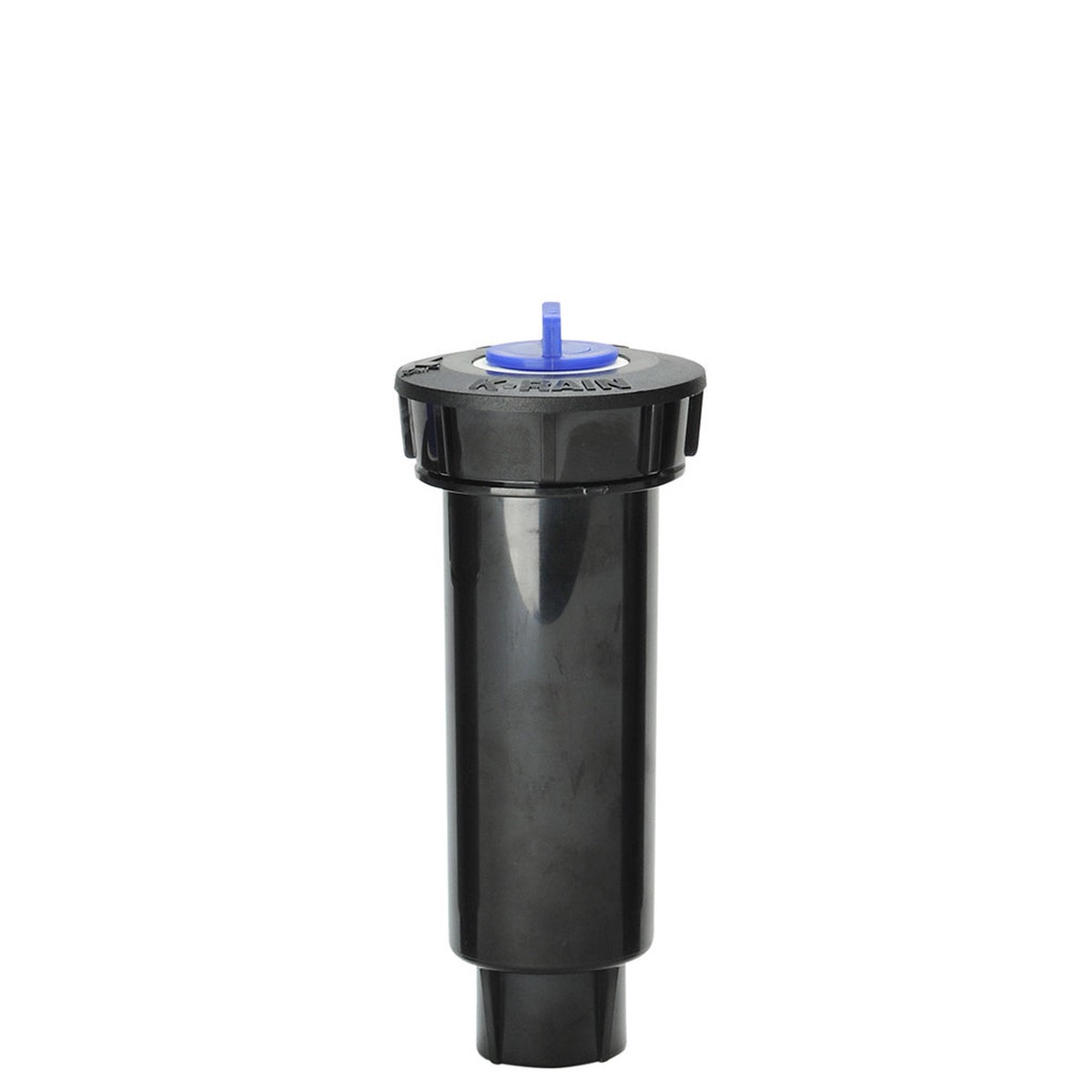

K-Rain 78003 – Pro-S 3″ Pop-Up Spray

The Pro-S Spray is designed to provide long life and outstanding performance. The result of precision engineering and extensive field testing by contractors around the world, the Pro-S Spray is built with the contractor in mind. These sprays are distinguished by robust construction, rugged body and cap, co-molded seal and heavy-duty retraction spring. The co-molded wiper seal ensures proper operation time after time with minimal flow by. Save water & eliminate misting and low head drainage with Pro-S Spray CV-PR model.

Features

• Accepts all female threaded nozzles
• Assembly fits in a Rain Bird 1800 Series spray body
• Co-molded wiper seal Ensures a leak-free, full pop-up even under low pressure situations
• Treated with UV inhibitors for long life
• Carefully selected seal material reduces degradation and stick-ups
• Heavy-duty retraction spring Strongest in the industry for complete retraction in all soil conditions
• Pre-installed flush cap
• Nozzle not included

Specifications

• Pressure rating: 20 70 PSI (1,4 4,8 bar)
• Flow-by: 0 8 PSI (0,6 bar) 0.20 GPM (0,76 LPM)
• Inlet: 1/2″ (1,3 cm) Female Thread NPT
• Retracted Height: 5″
• Riser Height: 2-1/2″
