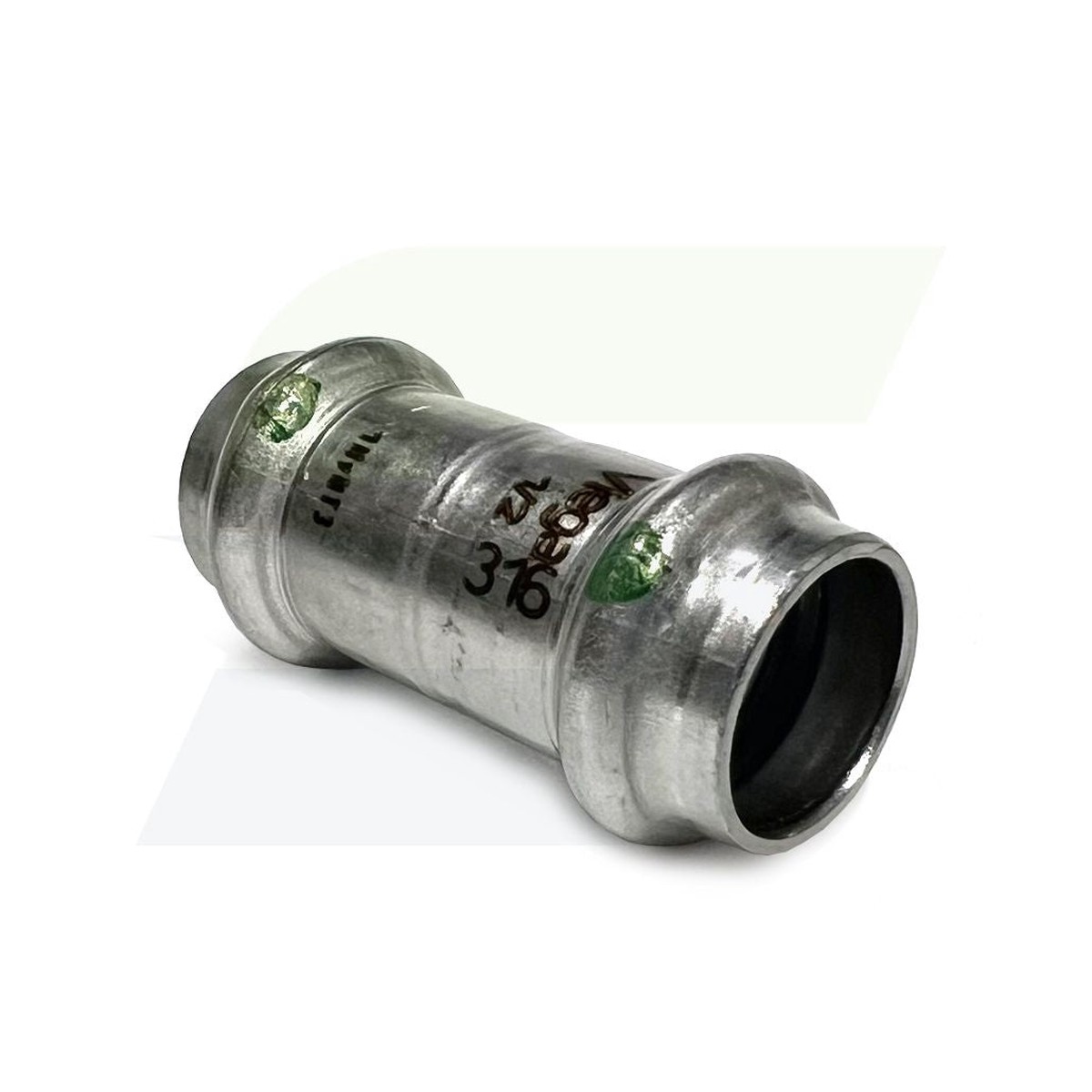

Viega80310 – 1/2″ ProPress 316 Stainless Steel Coupling w/ EPDM Seal – No Stop

The Viega 80310 is a stainless steel coupling designed for use with the ProPress system. Manufactured from rugged 316 stainless steel, it delivers dependable, watertight connections using Viegas press-fit technology. Equipped with an EPDM seal and the exclusive SmartConnect indicator, this coupling ensures fast, secure installationsupporting wet pipe connections and built to withstand industrial-pressure environments. Ideal for potable water, hydronic, compressed air, or corrosive applications, the 80310 offers a high-quality, flame-free joining alternative.

Features

• Brand: Viega
• Part Number: 4015.5 / 80310
• Material: 316 stainless steel
• Connection Type: ProPress (Press Press coupling)
• Nominal Size: 1/2″
• Sealing Element: EPDM with SmartConnect indicator for clear press confirmation
• Pressure Rating: Up to 200psi
• Temperature Range: 0to 250 degrees F
• Length: Approx. 1.97in (50mm)
• Certifications: ABS, FM, CSA, ICC-ES, NSF-61G, UL listed; German origin
• Speed: Creates connections in 47 seconds per joint
• Wet Fit Capability: Can be installed on wet pipelinesideal for maintenance and new builds
• Applications: Suitable for potable water, hydronic heating/cooling, compressed air, lube oils, slurries, and more
