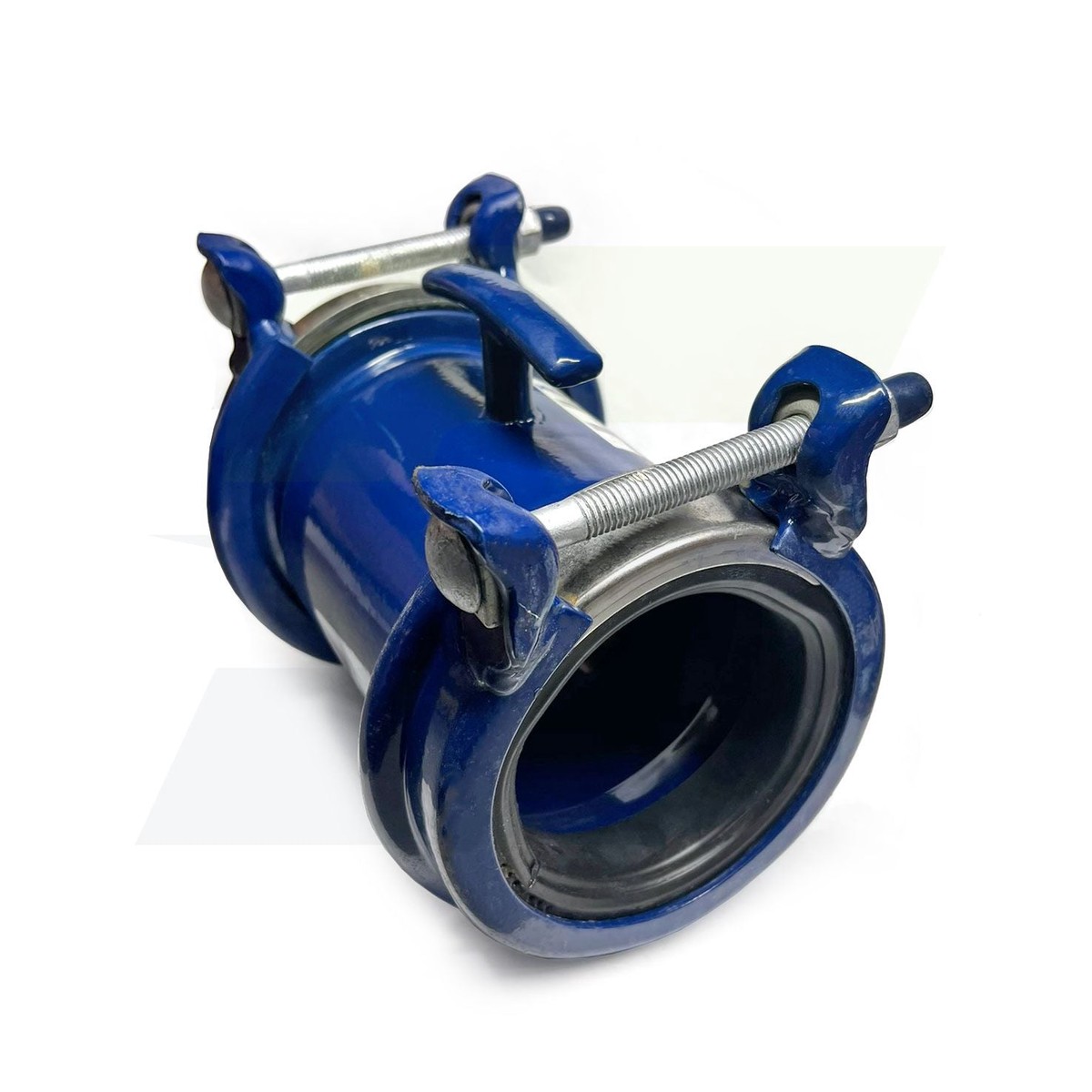

860-54-0054-16 – Hymax 2 Coupling – 2″

The HYMAX 2 860-54-0054-16 is a 2″ non-restrained, wide-range coupling designed to connect pipes with outside diameters from 2.10″ to 3.03″. Its patented flip-style EPDM gasket accommodates two pipe-size ranges without removing the gasket, helping prevent installation errors. Two top-facing bolts provide convenient access, while 4 of dynamic deflection at each end helps accommodate pipe movement and misalignment. Suitable for joining pipes made from the same or different materials in water and wastewater applications.

Features

• 2″ nominal wide-range pipe coupling
• Accommodates pipe ODs from 2.10″ to 3.03″
• Low gasket range: 2.10″ to 2.60″
• High gasket range: 2.56″ to 3.03″
• Patented reversible flip gasket simplifies size adjustment
• Hydraulically assisted EPDM gasket provides two-stage sealing
• Two top-facing bolts allow faster, easier installation
• Allows up to 4 of dynamic deflection on each end
• Connects pipes made from the same or different materials
• Compatible with ductile iron, cast iron, steel, copper, PE, PVC, AC and GRP pipe
• Fusion-bonded epoxy coating provides corrosion protection
• 304 stainless steel bridge, nuts and bolts
• Maximum working pressure: 260 PSI
• Rated pressure: 390 PSI
• Recommended bolt torque: 75 ft-lb
• Meets or exceeds AWWA C219 requirements
• NSF 61 and NSF 372 certified
• Non-restrained coupling
• Manufacturer part number: 860-54-0054-16
