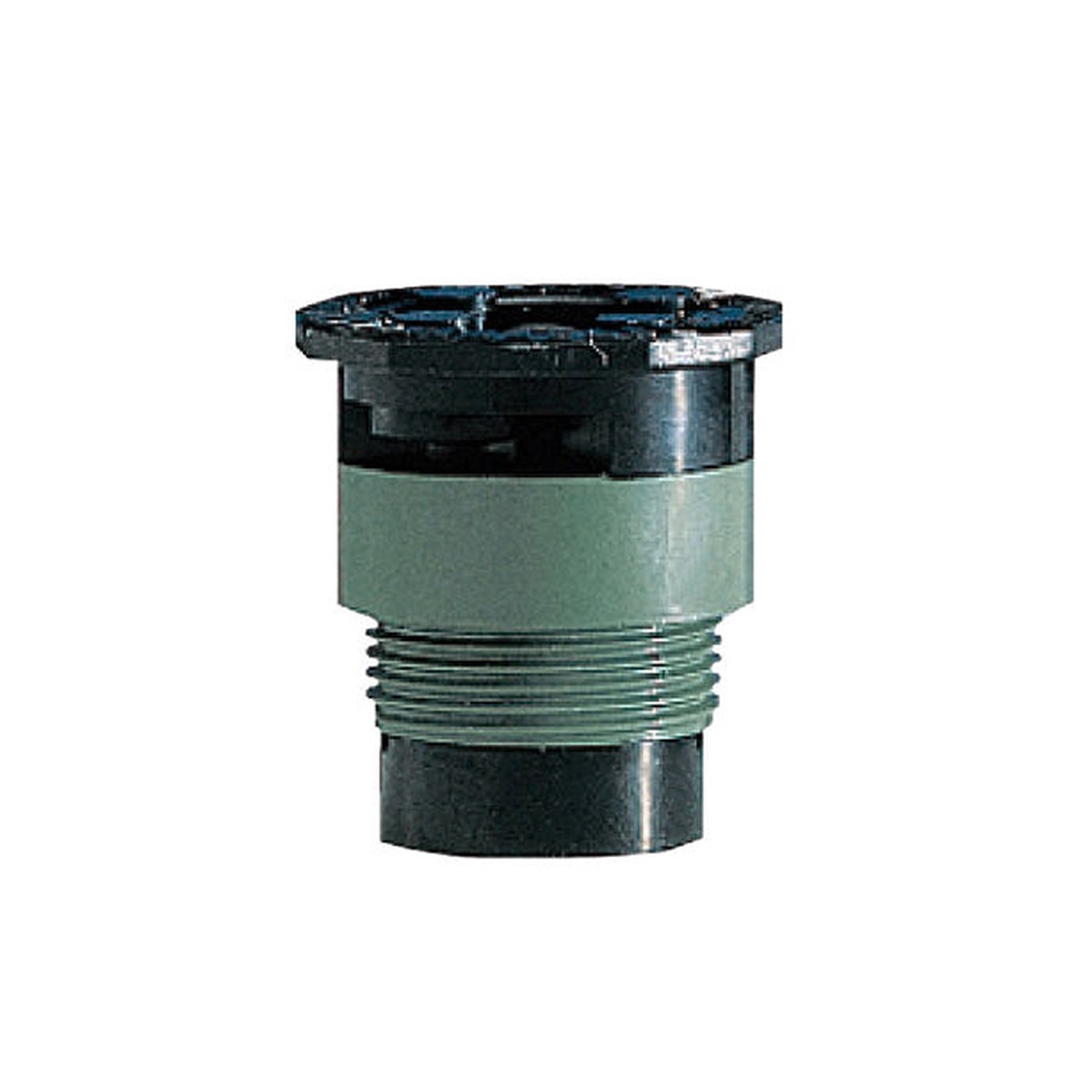

TORO 89-1464 – 8-H MPR Plus Spray Nozzle 180 Degrees, 8 Foot

Toro MPR Plus nozzles make system design and installation easier than ever. Simply select the needed radius and arcthe nozzle does everything else.

• Built-in Pressure Compensating Device eliminates fogging and misting, saving water
• Matched precipitation rate (MPR) ensures even water distribution any pattern, any radius
• Easily installs onto any Toro spray or shrub sprinkler
• 8′ spray radius, half circle pattern
• Flow1.50 GPMat 30-40 PSI
• Nozzle Trajectory5 degree
• Optim. Operating Pressure30-40 PSI
• Recommended Operating Pressure20-70 PAI
• Radius 8′
• Pattern180-degrees (Half Circle)
• Thread – Male
