94ALF-A Submittal Sheet

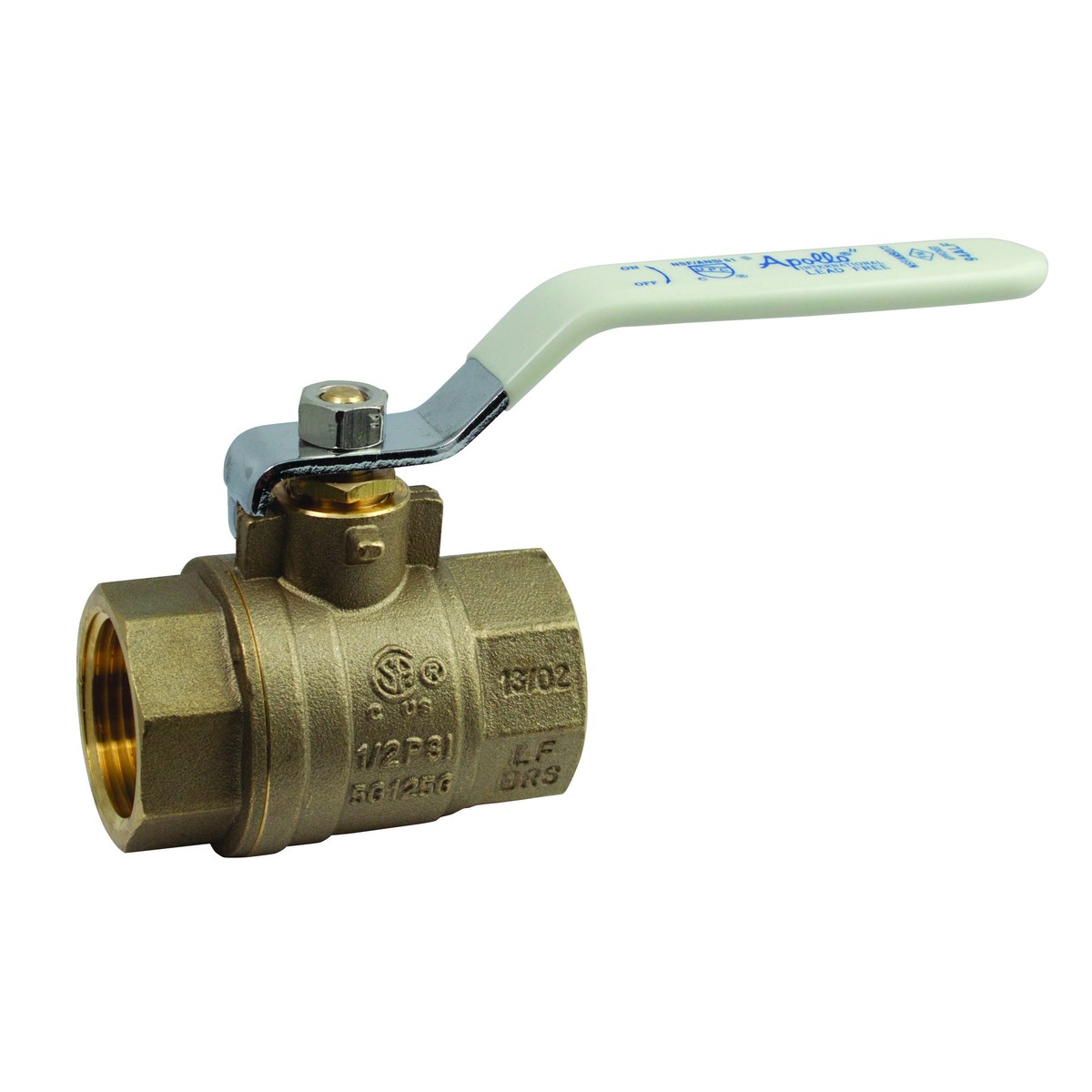

Apollo Valves 94ALF-102-01A – 3/8 ” Lead Free Full Port Brass Ball Valve, NPT x NPT

The Apollo International 94ALF-A Lead Free forged brass ball valve combines reliable operation with maximum economy. featuring multi-agency approvals, the 94alf-a is ideal for gas, fuels, fire protection and general plumbing and HVAC applications including potable water. Valves are ANSI 3rd party lead free certified.

Features

• EZ Solder lead free materials
• Distinctive white lead free handle grip
• 2-Piece, full port design
• Blowout-proof stem
• 100% Factory testing
• Adjustable stem packing nut
• Multiple agency approvals
• Stem seal O-ring (solder version 1/2 – 2)

Performance Rating

• 600 CWP 1/4 to 2
• 400 CWP 2-1/2 to 4
• Temperature range: 0F to 400F

*lead free: the wetted surfaces of this product shall contain no more than 0.25% lead by weighted average. complies with federal public law 111-380. ANSI 3rd party approved and listed.

Approvals

• MSS SP-110 Ball Valves
• IAPMO/ANSI Z1157 Ball Valves
• NSF/ANSI/CAN 61 Water Quality
• NSF/ANSI/CAN 372 Lead Free
• EU Directive 2015/863 (RoHS 3) Compliant
• EU Regulation (EC) 1907/2006 (REACH) Compliants

FM Listed

• FM 1140 fire protection quick opening valves

CSA Listed
(File # 226234) per the following standards:

• ANSI Z21.15 (1/2 psi) (CSA 9.1) (1/4 2)
• ASME B16.44 (5 psi) (CR91-002) (1/4 2)
• ASME B16.33 (125 psi) (CGA 3.16) (1/4 2)

UL Listed

• UL 125 – flow control valves for LP-Gas, Guide YSDT to 250 psi max
• UL 258 – fire protection trim & drain, guide VQGU to 175psi max (1/4 2)
• UL 842 – valves for flammable fluids, guides YRBX, YRPV, and MHKZ to 250 psi max. (1/4 – 4 NPT only)
• UL 1477 – compressed gas shutoff valves, guide YQNZ to 250 psi max (1/4 – 4 NPT only)

*gas approvals apply to NPT models only

Models

• 94ALF-102-01A: 3/4″
• 94ALF-103-01A: 1/2″
• 94ALF-104-01A: 3/4″
• 94ALF-105-01A: 1″
• 94ALF-106-01A: 1-1/4″
• 94ALF-107-01A: 1-1/2″
• 94ALF-108-01A: 2″
