Description

Install a Freestanding bath tub in minutes with the Island Tub Drain. No muss, no fuss, no kidding.

• Newly redesigned Asymmetrical Deck Flange makes installation in tight spaces easier
• Allows for freestanding Tub location to be defined at rough-in
• Designed to be installed in a 8″ (1-1/2″ outlet) or 10″ (2″ outlet recommended) joist space
• Allows for freestanding Tub to be installed over finished floor
• Built-in Snap-off Test Cap allows for water/air/smoke testing
• NOTE: Island Tub DrainIS NOT FOR USE with liquid applied or sheet membranes
• NOTE: Island Tub DrainMUST BE INSTALLED in a dry area with no potential of water contact
• Island Tub Drainis Patented (Canadian Patent 2,813,010 & US Patent 9,551,138)

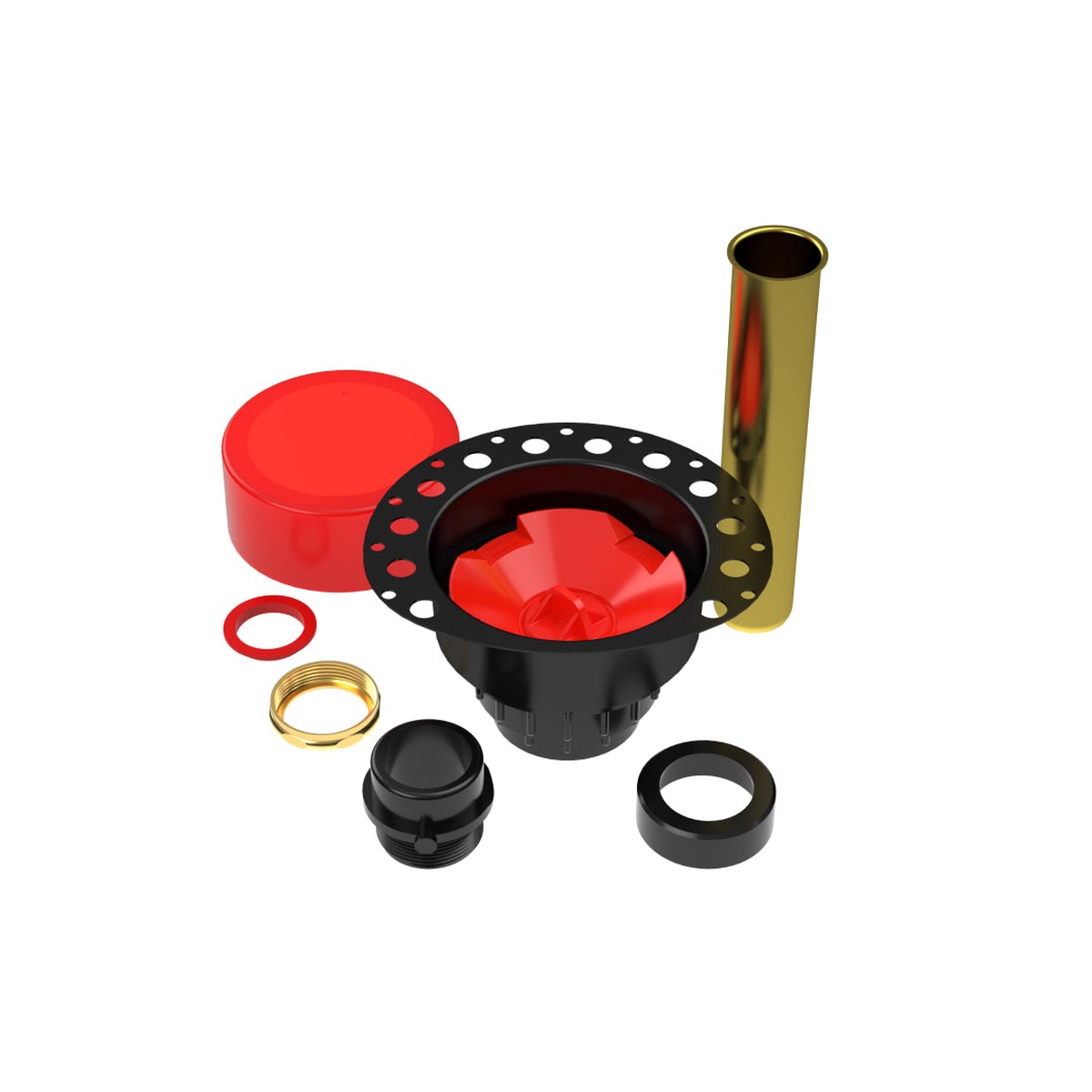

Features

• Snap-off Test Cap allows for water/air/smoke testing (Rated to 30psi)
• 18 Gauge Epoxy coated Asymmetrical Metal Deck Plate with holes to lock in Thinset
• ITD35 is a Freestanding Tub Rough-in (install before tile installation)
• Designed to be installed in a 8″ / 10″ joist space with 1-1/2″ / 2″ P-Trap
• Flanged Brass Tailpiece
• ABS Adapter Kit (attaches ITD35 to ABS Bath Waste)
• Island Drain assembly
• Mortar/Tile guard
• Cutting Template
