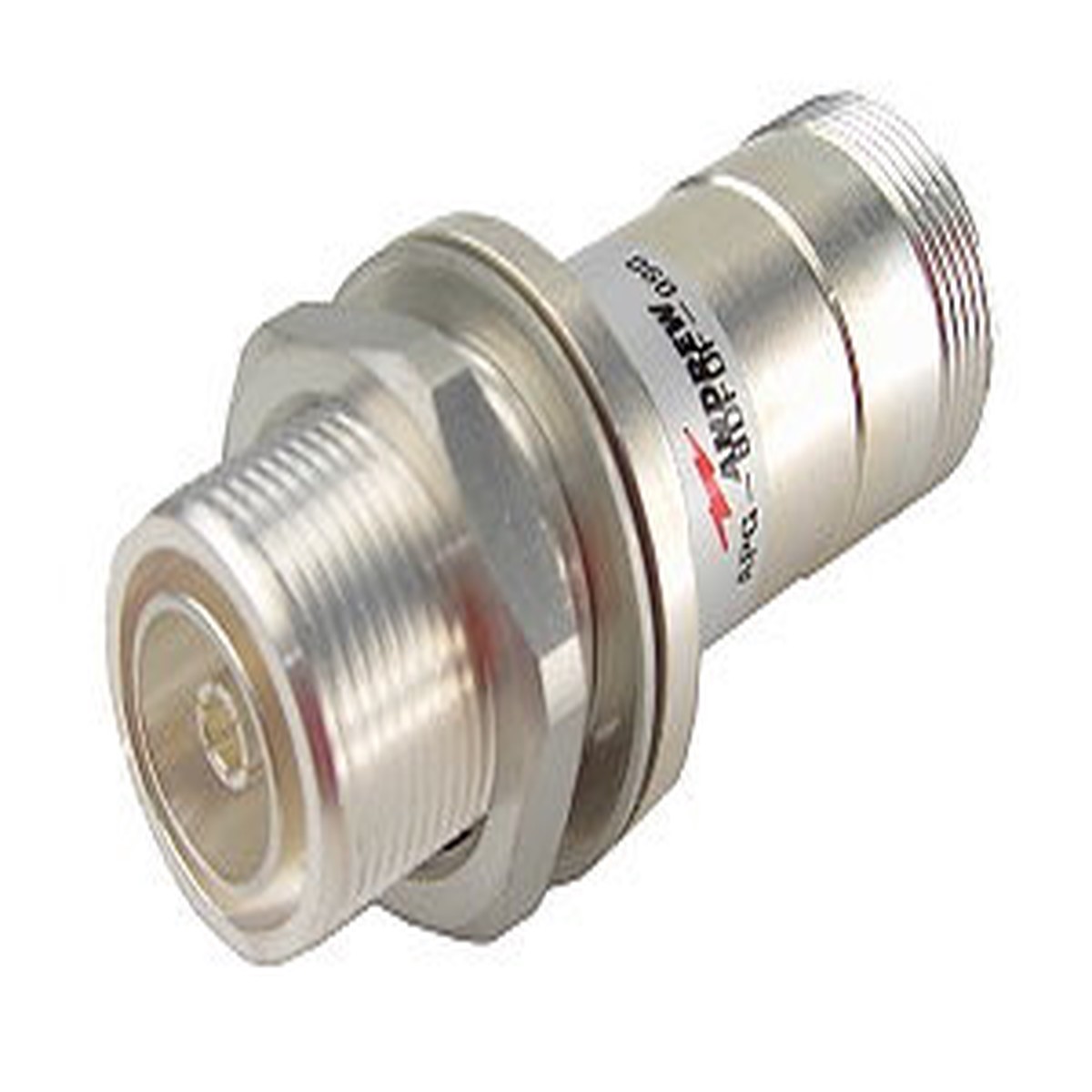

Andrew APG-BDFDF-090, APG Surge Arrestor, 90 Volt, 45-2170 MHzCondition:* New Old Stock, In OEM Packaging. As Pictured.Additional Notes:* Designed to protect equipment from damaging transients induced by lightning strikes.* Either RF port may be connected to the equipment side or the antenna side of the transmission line interface while providing equivalent protection. Characteristic* General Specifications: Connector A: 7-16 DIN Female Bulkhead Connector B; 2 7-16 DIN Female Body Style: Bulkhead * Electrical Specifications: Operating Frequency Band: 1000 – 2000 MHz | 2000 – 2170 MHz | 45 – 1000 MHz Average Power: 30 Watt Connector Impedance: 50 Gas Tube Voltage: 90 Volt Insertion Loss: 0.30 dB Lightning Strike Current: 20 kA Lightning Strike Current Waveform: 8/20 Waveform * Mechanical Specifications Attachment Durability: 25 Cycles Interface Durability: 500 Cycles Interface Durability Method: IEC 169-16:9.5 Pressurizable: No * Dimensions: Height 1.57 in | 39.88 mm Width 1.57 in | 39.88 mm Length 3.19 in | 81.03 mm Weight 0.66 lb | 0.30 kg * Operating Temperature: -40C To +100C (-40F To +212F) * Storage Temperature: -40C To +100C (-40F To +212F) * Return Loss Frequency Band Return Loss (dB) 45-1000 MHz -22.00 1000-2000 MHz -20.00 2000-2170 MHz -19.00 AndrewAPG-BDFDF-090
