Resideo AT Transformers Installation Instructions

Versatile Transformer

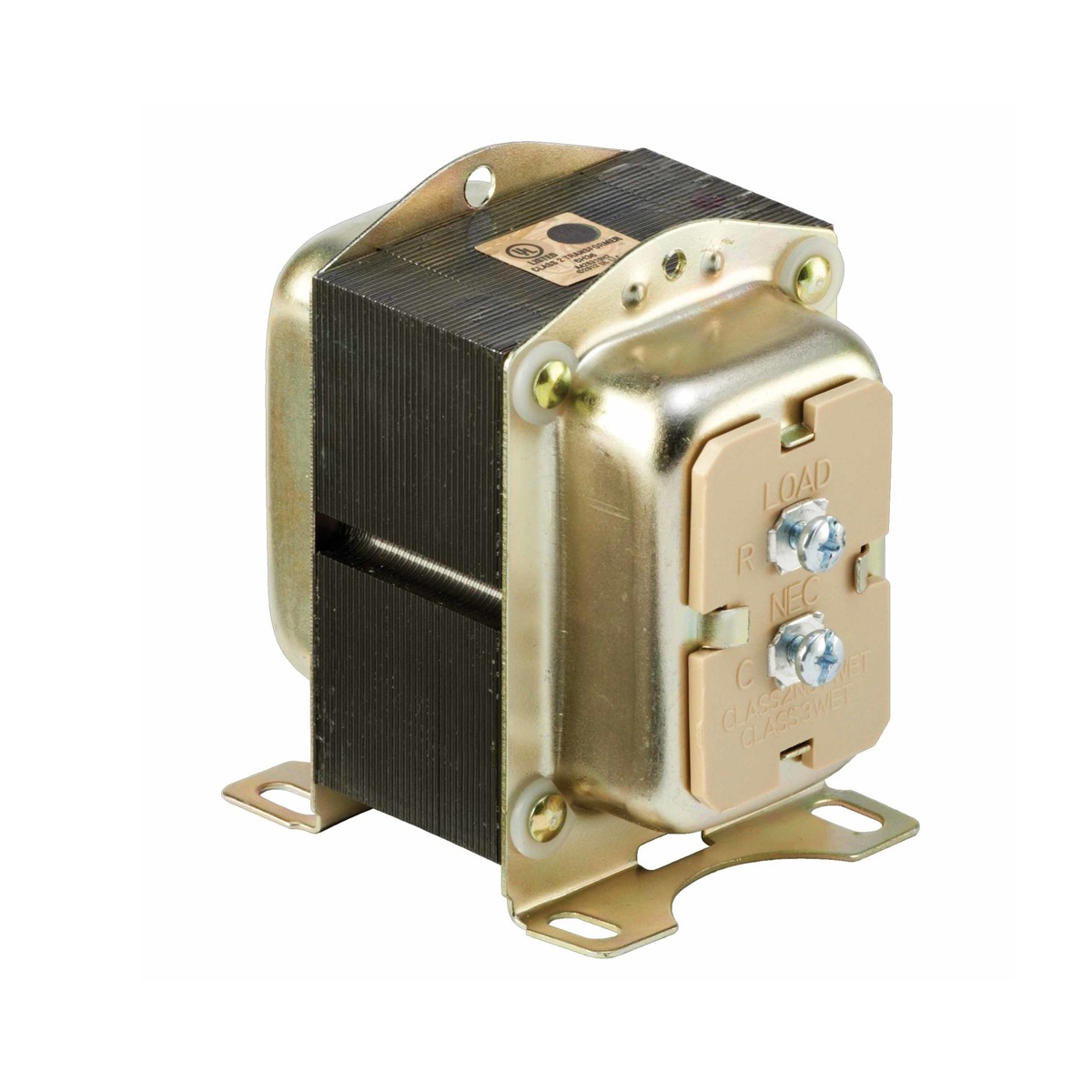

The 48 VA transformers by Resideo power 24V systems air conditioning circuits. They feature override protection and color-coded lead wires for primary connections. They meet NEC Class 2 not wet, Class 3 wet, and UL 1585 requirements.

Overview

Honeywell 48 VA powers 24V air conditioning circuits and other applications that do not exceed the listed ratings.

Features:

• Meets NEC Class 2 not wet, Class 3 wet and UL 1585 requirements.
• Transformer marked NEMA Type E.
• Overload protection provided.
• Color-coded lead wires for primary connections.

Resideo offers NEMA National Electrical Manufacturers Association standard DC20-1992 and general purpose transformers. These transformers are available with
single or multiple input voltages and with foot, conduit and plate mounting options. Transformers with circuit breakers that can be manually reset by pressing a button are also available. Resideo also designs transformers for specific environmental requirements and with specialized termination options.
NEMA-compliant transformers prevent overcooling, brownout, and burnout.

HKZ1201085
