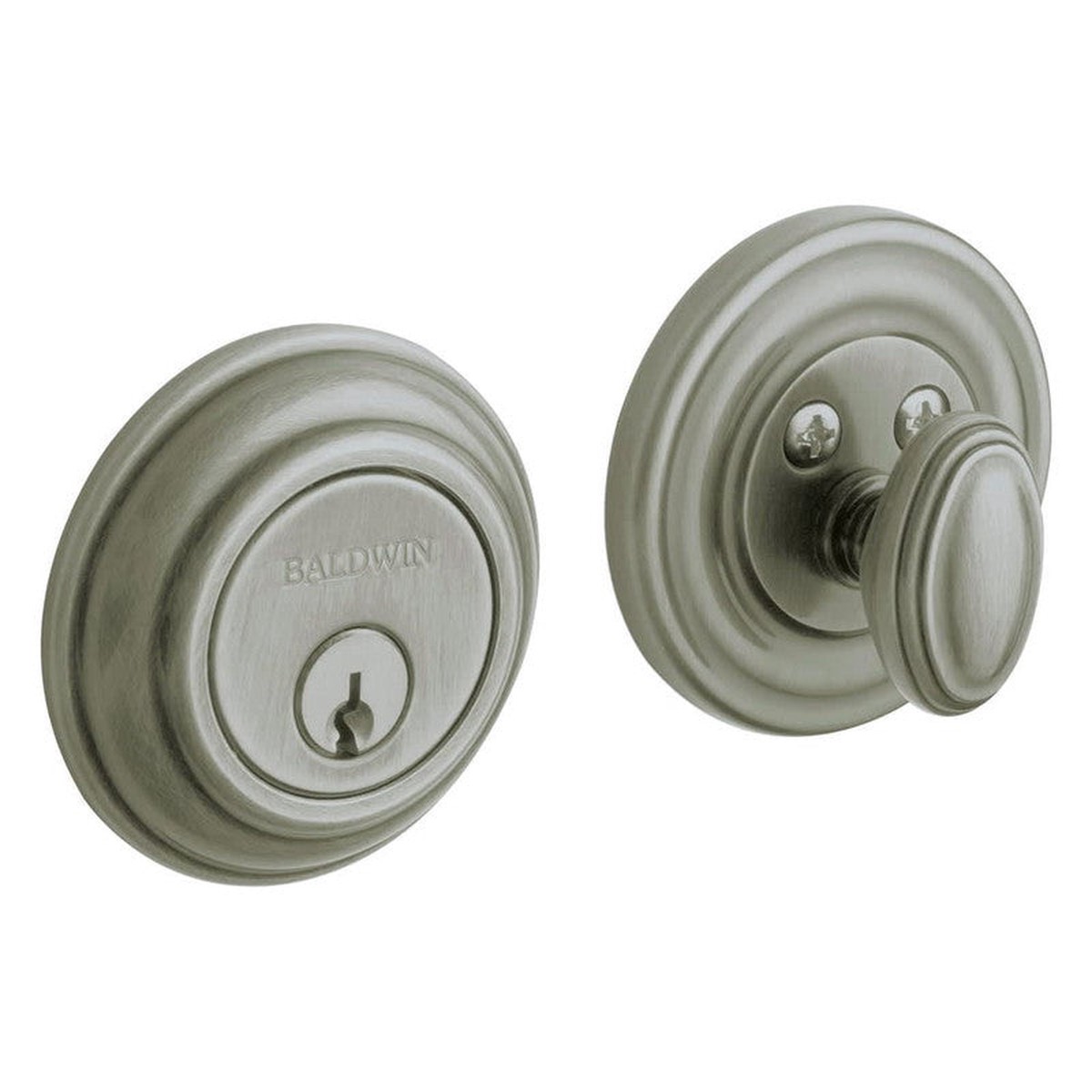

Baldwin 8231 – Traditional Single Cylinder Deadbolt

When people say it’s lonely at the top, they’re definitely not talking about Baldwin Estate. This impressive top-of-the-line portfolio comes with plenty of company; everyone wants it. Estate includes seemingly infinite possibilities, elegant finishes and exclusive, custom styles. Estate is quality that feels custom-made, because it is.

Features

• Traditional Deadbolt, Single Cylinder, 2-1/8″ Door Prep
• Solid forged brass
• Low profile cylinder deadbolt for 2.125″ door prep
• Features 0.5″ low profile cylinder projection
• Deadbolt case is formed of heavy gauged steel for strength; most interior parts are made of solid brass
• Specially-designed reinforcing strike constructed of high-grade steel
• C-Keyway, 5-pin cylinder
• Accommodates 1.75″ thick doors and 2.125″ diameter cut outs. Deadbolt kits are available for 2″ and 2.25″ thick doors.
• ANSI/BHMA A 156.13 Operational & Security Grade I
• Limited Lifetime Mechanical Warranty and Limited Lifetime Finish Warranty

Specifications

• Function: Single cylinder deadbolt
• Backset: Adjustable 2-3/8″ or 2-3/4″
• Weight: 2.2 lbs
• Diameter: 2-1/2″
• Exterior Projection: 17/32″
• Interior Projection: 1-11/32″
• Door Prep: Deadbolt fits 2-1/8″ diameter cutout
• Door Thickness: Deadbolt fits 1-3/4″ thick doors. Optional thick door kits for 2″ and 2-1/4″ thick doors sold separately. 1-3/8″ thick doors require a Baldwin 8297 door spacer.
