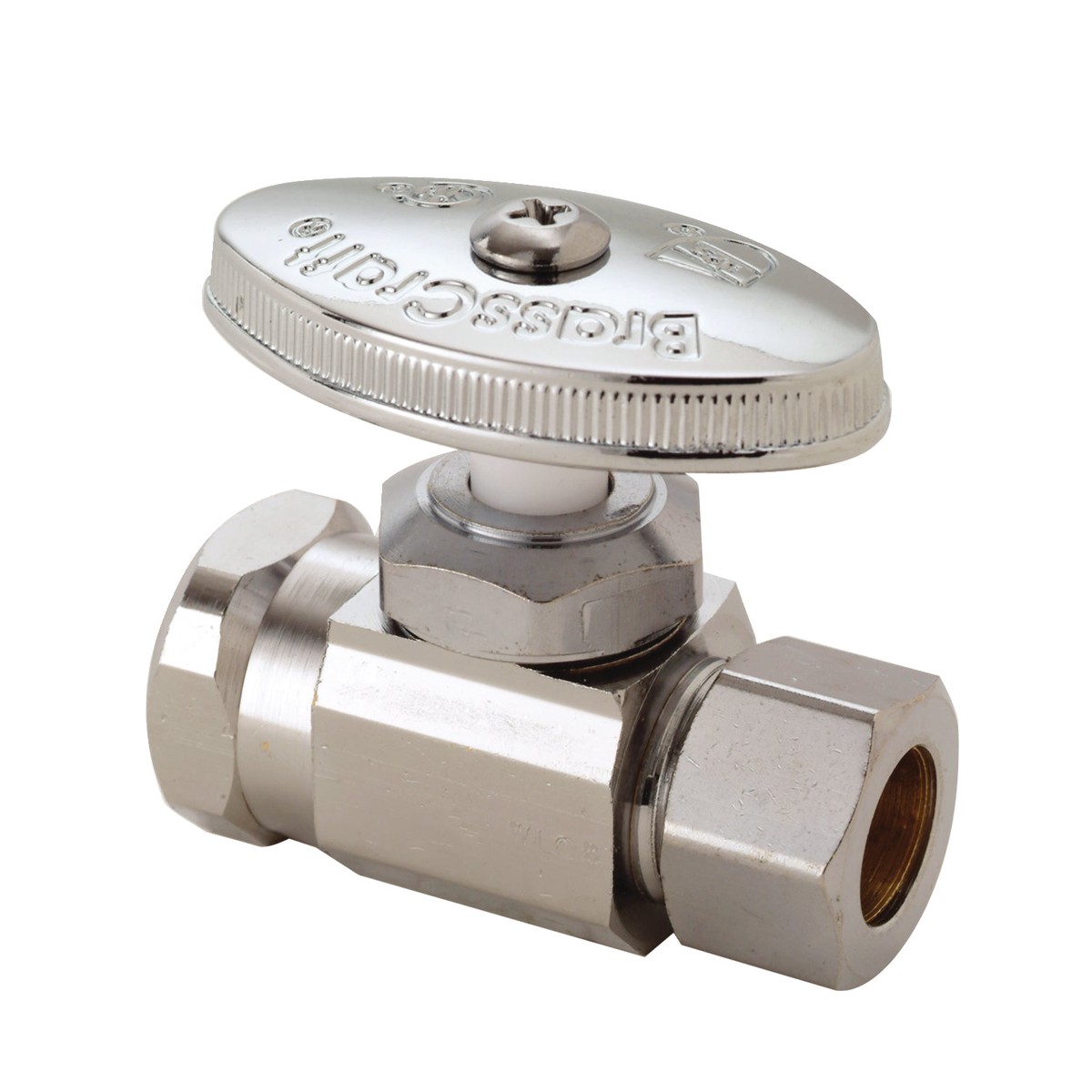

BrassCraft 1/2 in. FIP Inlet x 1/2 in. OD Compression Outlet Multi-Turn Straight Valve controls water flow to household plumbing fixtures faucets, toilets, dishwashers, icemakers, washing machines, etc. The straight valve is most often used where the water pipe enters the room from the floor. With a few turns of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning off water to the entire home.

Features:

• Machined, 1-piece body construction for strength, durability and long-lasting performance
• 1/2 in. FIP x 1/2 in. OD Comp
• Compatible with iron pipe
• For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115 F. For those applications, use our KT series ball stops.
• Multi-turn operation means water flow control with only a few turns of the handle
• Oval-knurled handle provides a secure grip for on/off operation
• Easy-to-remove handle protects against accidental operation during rough-ins
• Temperature rating: 40 to 160F
• Pressure rating: 125 psi maximum
• No-lead certified
• IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
• Designed, machined and assembled in the USA
