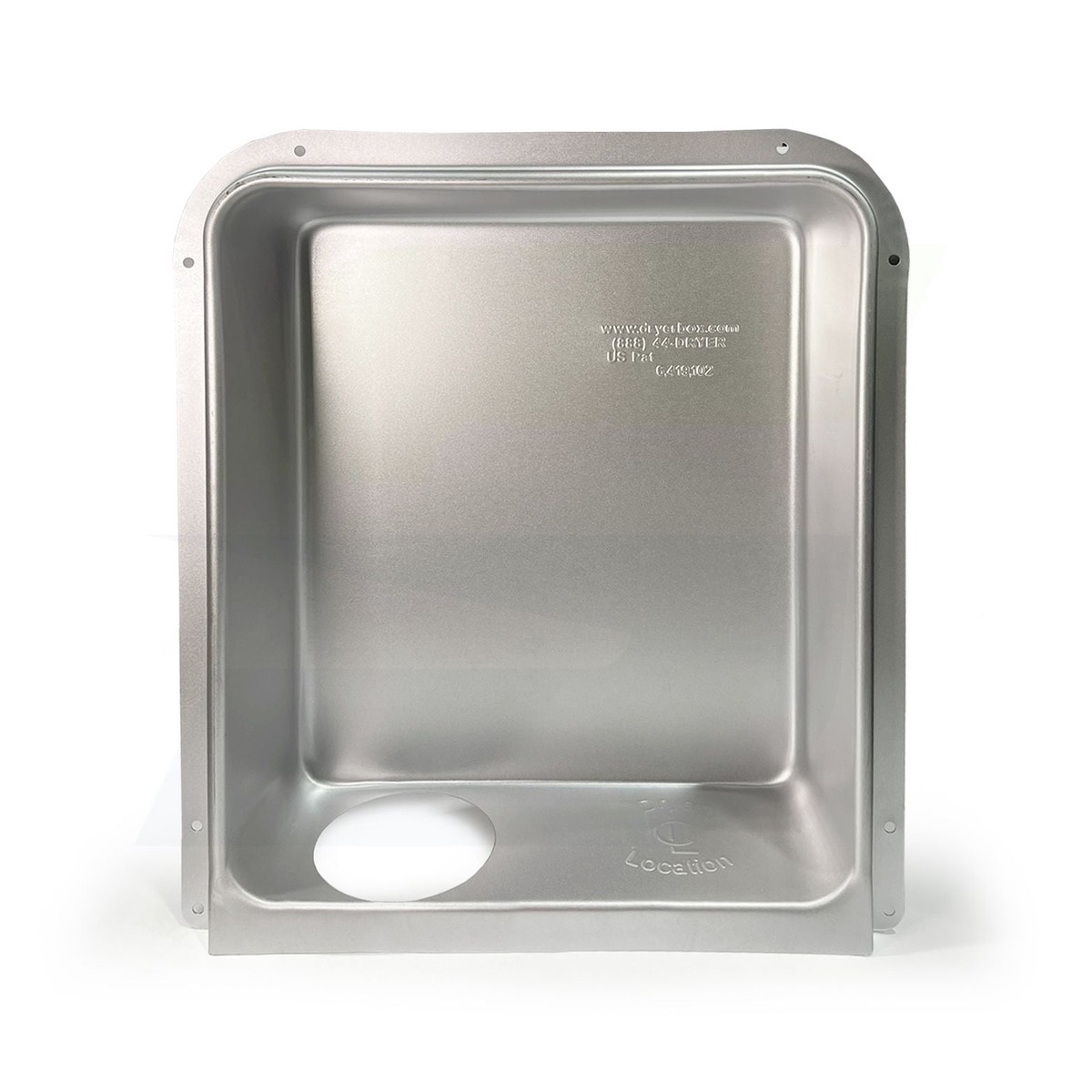

Dryerbox DB-3D – 14″ x 16″ In-Wall Dryer Exhaust Receptacle, Downward Exhaust, 2×4 Walls

In the past, homeowners had to put up with the inefficient venting of their dryer appliance exhaust due to numerous friction causing bends or kinks in the flex duct hose that connects the dryer to the wall exhaust pipe. Lint build-up and a fire hazard are the unwelcome by-products of these annoying bends. In order to accommodate these flow restrictive bends, the dryer appliance had to be located five to six inches away from the wall, taking away from valuable living area.

Choosing the Dryerbox recessed exhaust receptacle makes for a simpler, cleaner install that truly finishes the laundry right. Youll protect the exhaust hose neatly in the wall, and youll be able to place the dryer flush to the wall without crushing the hose or otherwise restricting airflow. Adding this receptacle makes homes roomier and more efficient. It also makes them safer by reducing the fire hazard associated with dryer venting problems. Its even UL Classified for a 1-hour wall.

Give the Dryer Some Space
Today, you can place the dryer flush to the wall without crushing the exhaust hose or restricting airflow. Install the Dryerbox for safer, roomier and more efficient homes.Protecting flex hose lessens the risk of lint buildup, provides energy savings by removing the kinks usually found in the exhaust hose, and makes for a simpler, more professional looking finish.

Features and Benefits

• Position the dryer right up against the wall
• Protects exhaust duct in the wall
• Elbow eliminatorgain 5 foot of duct run
• Deep drawn manufacturing in the USA
• Extension rim extends 7/8″ from nailing flange
• Eight 1/4″ mounting holes (4 on each side)
• Surface ispaintable
• Cleaner, more professional finish
• Lets the dryer perform at peak efficiency
• Helps protect against fire spread

Specifications

• Overall Dimensions: 19″H x 16-3/4″W x 4-3/8″D
• Interior Dimensions: 16″Hx 14″W
• Wall Framing Size: 2×4
• Weight:4.8 lbs
• Distance from nailing flange to rear of box is 3-1/2″
• Materials: 22 Gauge Aluminized Steel
