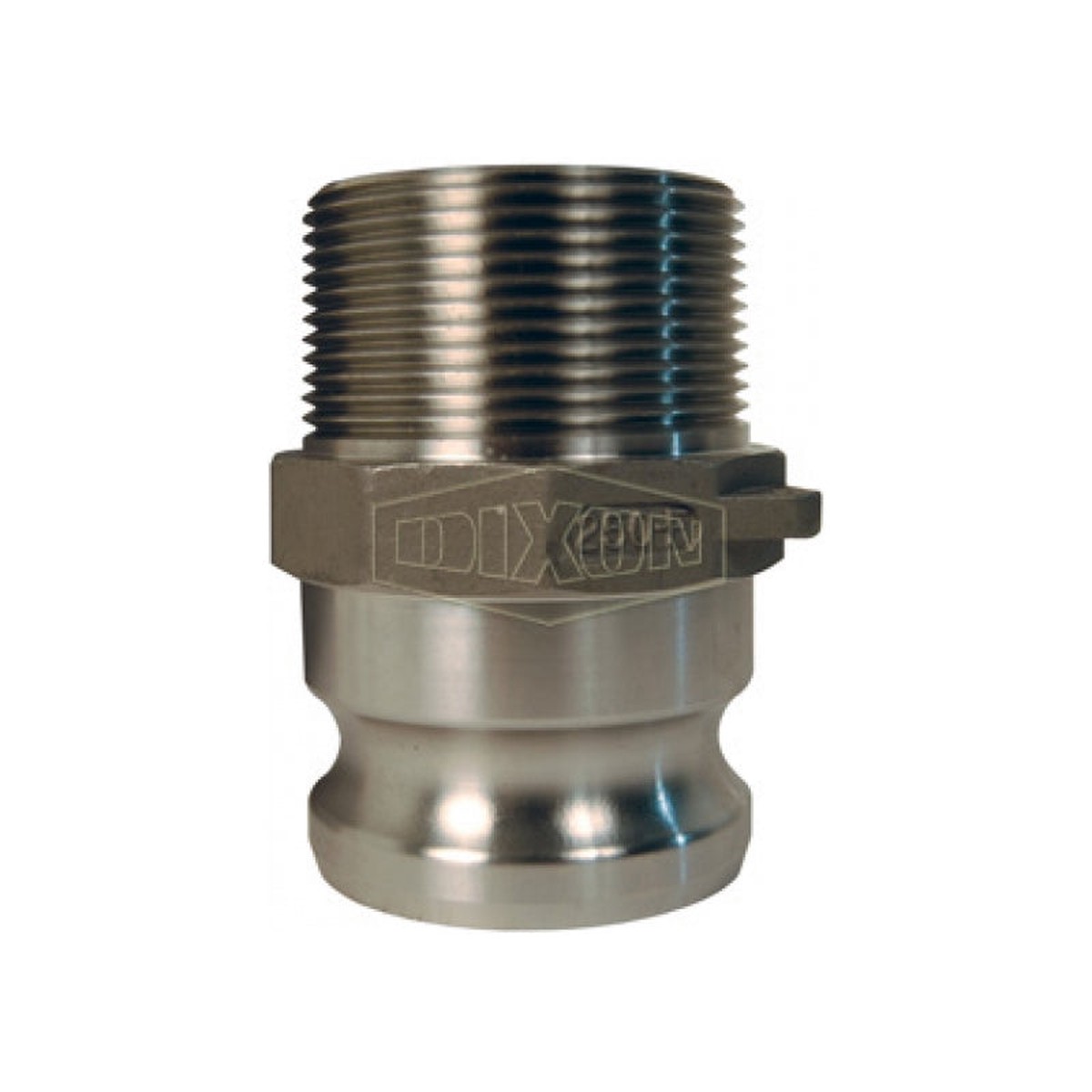

Dixon Valve G100-F-SS – 1″ Stainless Steel Cam & Groove Global Type F Adapter x Male NPT

Features

• Global TypeF Adapter
• Cam & Groove Adapter xMale NPT
• To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
• Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
• Under no circumstances should cam and groove couplings be used for compressed air or steam service!
• Pressure rating is based on the seal of the mating part
• Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70degrees F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
• Designed to interchange with all products produced to A-A-59326D
• Maximum Operating Pressure: 250psi
• Weight: 0.57 lbs
• Size: 1″
• Material:316 Investment Cast Stainless Steel

EZZSSF0100
