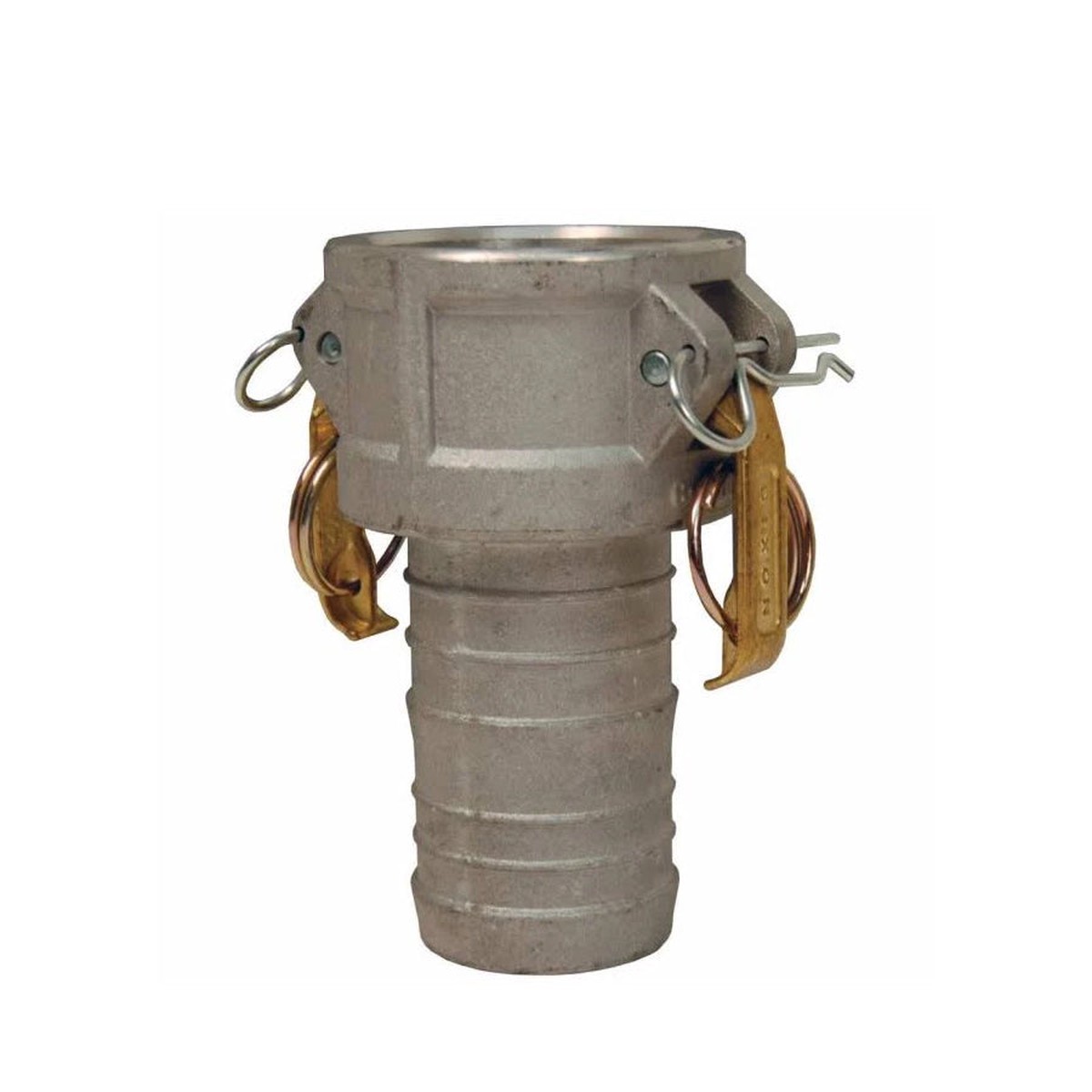

Dixon Valve G200-C-AL – 2″ Aluminum Cam & Groove Global Type C Coupler x Hose Shank

Features

• Cam & Groove Global TypeC Coupler
• Coupler xHose Shank
• To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
• Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
• Under no circumstances should cam and groove couplings be used for compressed air or steam service!
• Pressure rating is based on the seal of the mating part
• Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70degrees F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
• Designed to interchange with all products produced to A-A-59326D
• Maximum Operating Pressure:250 psi
• Weight:1.07 lbs
• Size: 2″
• Material:A380 Permanent Mold Aluminum
• Component Material: Brass Handle
• Seal: Nitrile Rubber
