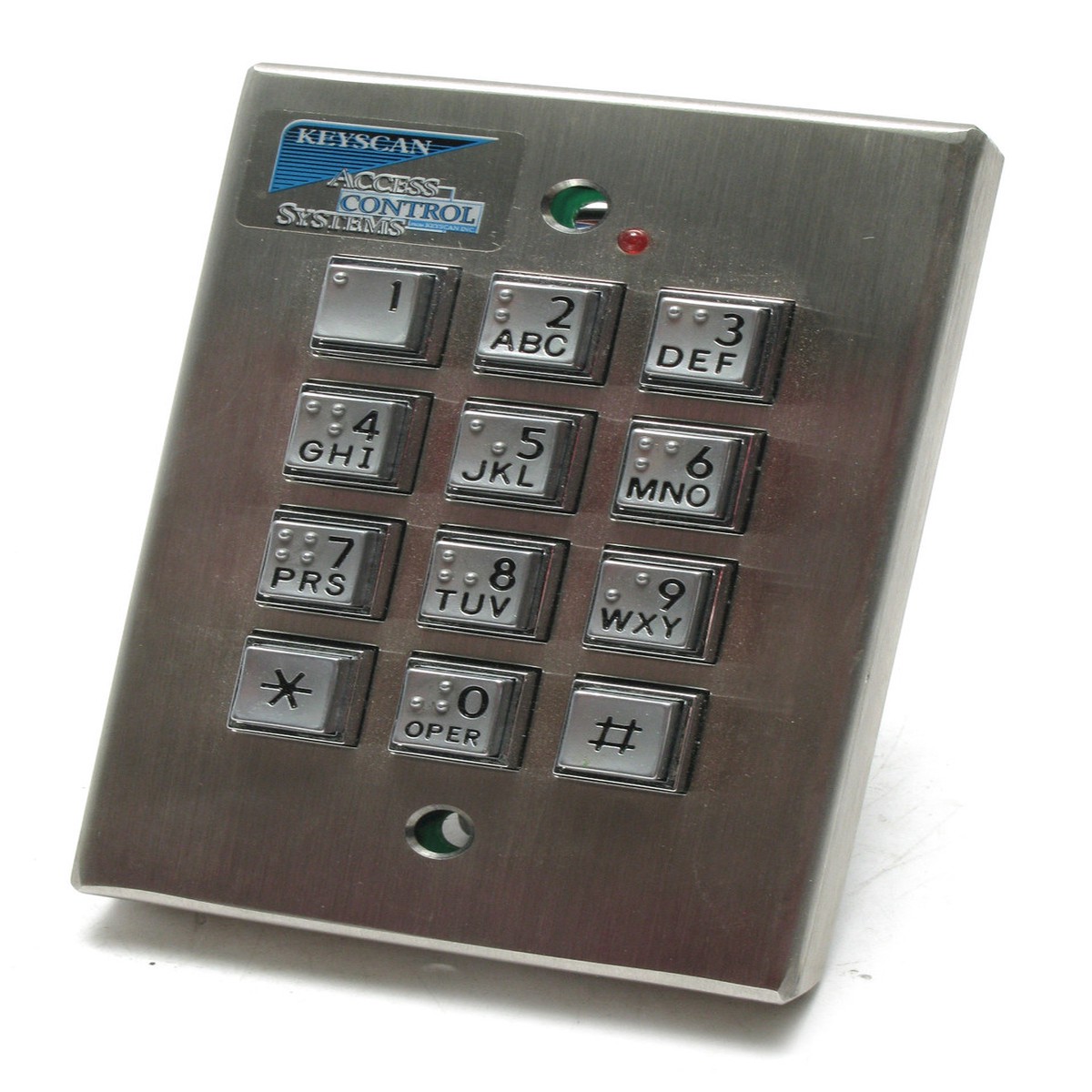

Keyscan Model WSSKP-1, Entry KeypadCondition:* New Stock, No OEM Packaging. As Pictured.Additional Notes:* WSSKP-1 supports industry standard 26 bit Wiegand data or proprietary Keyscan 36 bit format, it can be used with either a Keyscan ACU or with alternate control units supporting standard 26 bit data * Three digit facility codes can easily be activated for installations using site or facility codes from 001 to 255 * Braille keypad permits use in premises that are accessible to visually impaired * In stand alone applications, PINs can be set up to be either 3, 4 or 5 digits to suit the customers security requirements * Any single PIN can be changed OR all PINs can be deleted with simple keypad command sequences for stand alone applications * As many as 28 distinct PIN codes can be programmed into the WSSKP-1 for stand alone operation * Dimensions: 3″ x 4.5″ x 0.5″ (76mm x 114mm x 13mm) * Power supply: External * Input power (min): 12VDC 5% (30 mA) * Output (max): 12VDC@500mA into non- inductive or diode suppressed inductive load * Maximum power: 530 mA * Mechanical tolerances: Key travel 0.050 (1.27mm) * Key pressure: light touch, audio feed back, positive action keypad requiring only 4lbs (1.81kg) pressure * Operating temperature: -35 to 65 C * Button life expectancy: greater than 1,000,000 activationsKeyscanModel WSSKP-1
