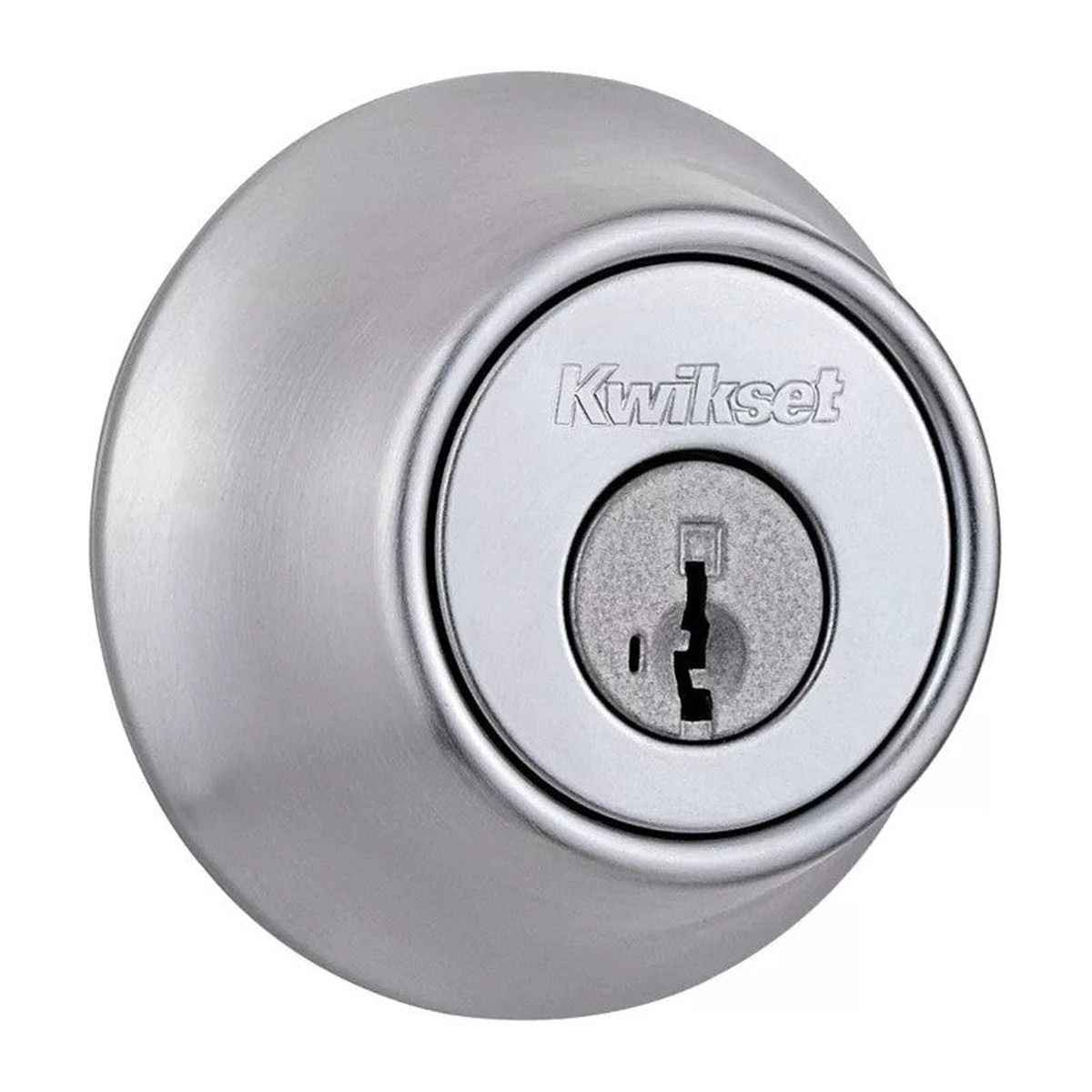

Kwikset 660 – Single Cylinder Deadbolt

Kwiksets 660 Deadbolt offers effective security at an affordable price.

Features

• Easy to Install
• Featuring SmartKey Security – protecting against advanced break-in techniques
• Features Microban antimicrobial finish protection
• ANSI/BHMA Grade 3 Certified Security & Quality
• Manufacturer Lifetime Warranty

Specifications

• Door Prep: Cross Bore 2-1 8. Edge Bore 1. Latch face 1 x 2 1 4
• Backset: 2-38 or 2-34 standard
• Door Thickness: 1-38 – 1-34 doors standard
• Cylinder: SmartKey or 5-Pin Pin & Tumbler
• Faceplates: 1 x 2-1 4
• Strikes: 1 x 2-14 full.
• Bolt: 1 throw.
• Door Handing: Reversible for right or left-hand doors.
• ANSI/BHMA A156.2 Grade 3
• ADA Interior turn piece meets 4.13.9 ADA requirements.
• Exterior Diameter: 2-7/16″
• Exterior Projection: 1-1/16″
• Interior Diameter: 2-1/2″
• Interior Projections: 27/32″
