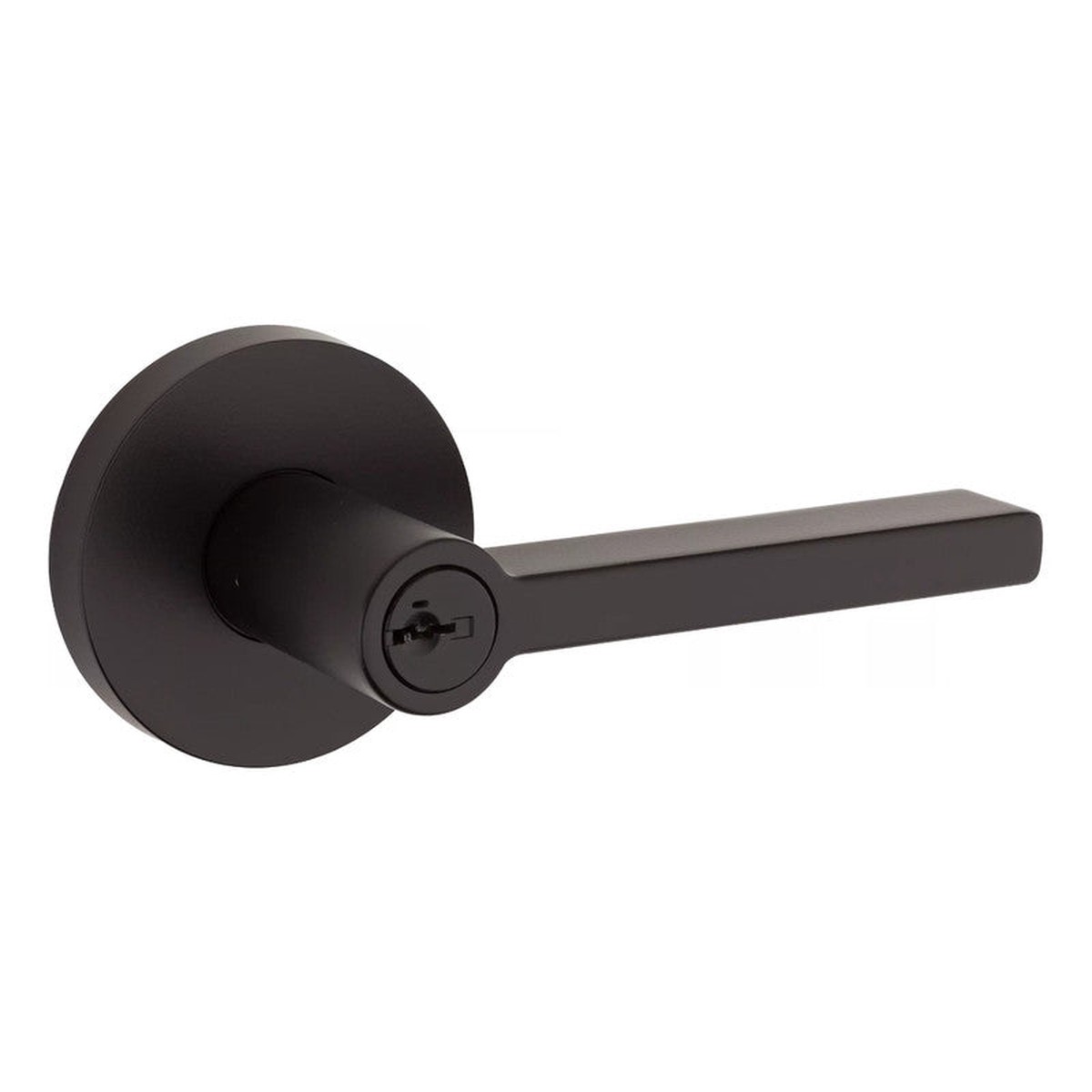

Kwikset Halifax Lever with Round Rose

Kwiksets Halifax Lever beautifully combines sophistication and simplicity. Available with either a round or square rose, this lever provides effortless style while providing alluring aesthetics.

Features

• Designer style and superior security with this Kwikset Signature Series product
• Keyed entry model is designed for use on exterior doors where security is needed. Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
• Latch has 3 interchangeable faceplates round corner, square corner, and drive-in collar
• Meets ADA/ANSI A117.1 requirements
• Certified Highest Residential Security, Durability and Finish – ANSI/BHMA Grade AAA
• Latch has adjustable backset 2-3/8″ to 2-3/4″ to fit all standard door preparations
• Fully reversible lever, can be installed on both right handed and left handed doors
• Easily installs in minutes with just a screwdriver Lifetime mechanical and finish warranty Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces

Specifications

• Door Prep: Cross Bore 2-1/8″ or 1-1/2″. Edge Bore 1″
• Backset Adjustable: 2-3/8″ or 2-3/4″
• Door Thickness: 1-3/8″ – 1-3/4″ Doors standard. Thick door service part available for up to 2-1/8″
• Cylinder (Keyed Entry): SmartKey Security
• Faceplates: 1″ x 2-1/4″
• Strikes: 2-1/4″ Full lip
• Bolt: 1/2″ Throw
• ANSI/BHMA: Grade AAA Certified: Finish/Durability/Security
• Door Handing: Reversible for right or left hand doors
• ADA: Passage and Privacy functions are in compliance with the American national Standards Institute (ANSI A117.1)
• Rose: Round (RDT)
• Warranty: Lifetime Mechanical and Lifetime Finish
