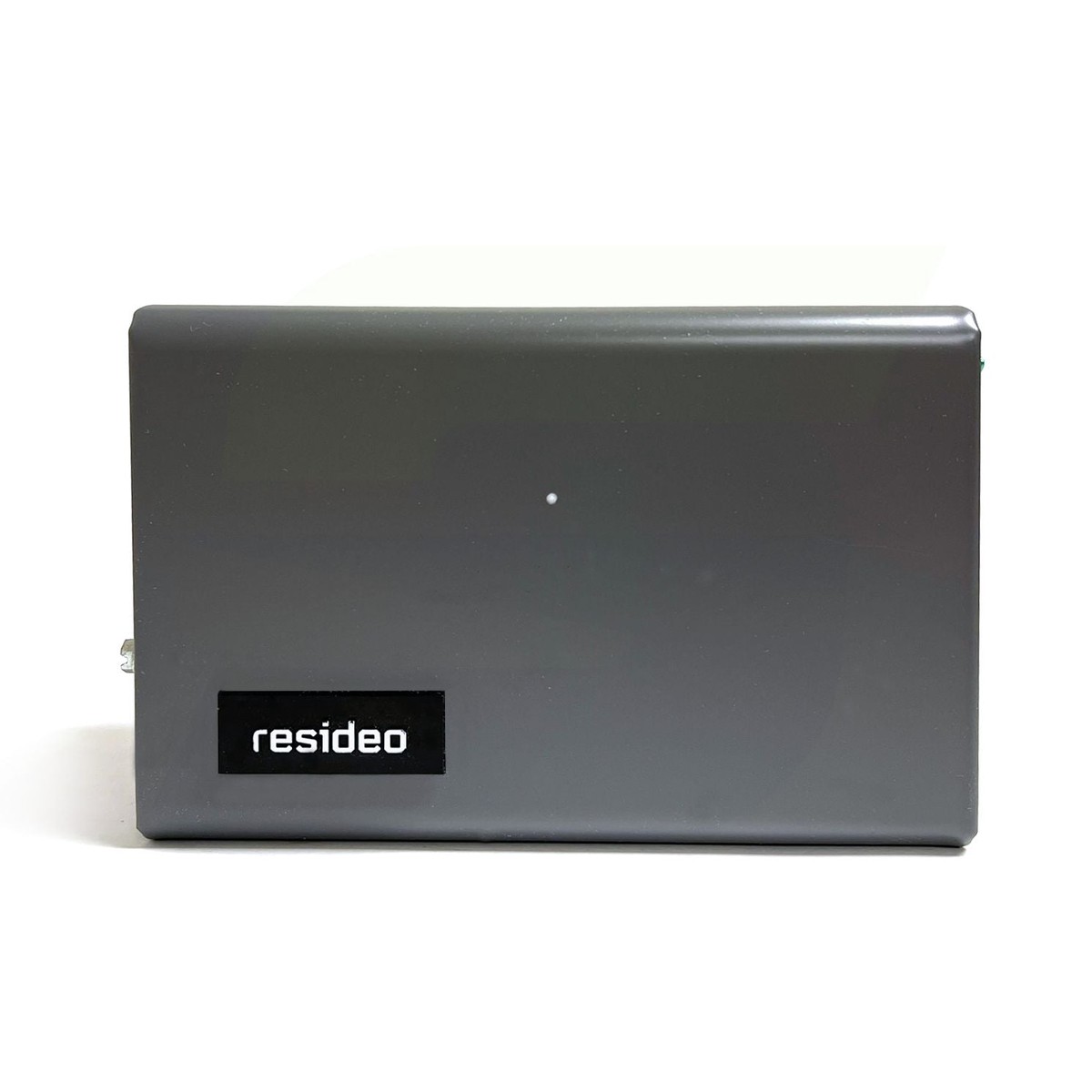

Resideo L8148A1017 – High Limit Horizontal Mount Aquastat Relay, 8 Degree Differential

Overview

Immersion-type controllers that combine high limit protection with switching relay control of burner and circulator motors. The L8148A Aquastat Relay combines high-limit protection with switching relay control of burner and circulator motors. The highlimit dial stop is factory-set at the end of the high-limit scale and can be easily adjusted to meet your application. The L8148A includes a transformer to provide power for the low voltage control circuit, and can be mounted both vertically and horizontally.

Features

• High limit opens burner circuit only.
• Select models include transformer and accessory terminals for adding a remote low limit controller.
• Case available for horizontal or vertical mounting.
• Requires a 24 Vac thermostat with heat anticipator set at 0.2A.
• All models include special terminals for adding remote, low limit temperature control.
• All devices include transformer to provide power for the low voltage control circuit. Different models provide switching of line, low, or millivoltage burner circuit.
• Combinations of two insulation and two insertion well lengths are available.
